Search › Model › NCP130

NCP130

Toyota YARIS-ECHO-VIOS-LIMO · 2011 · 3,571 parts · 230 categories

3,571 items

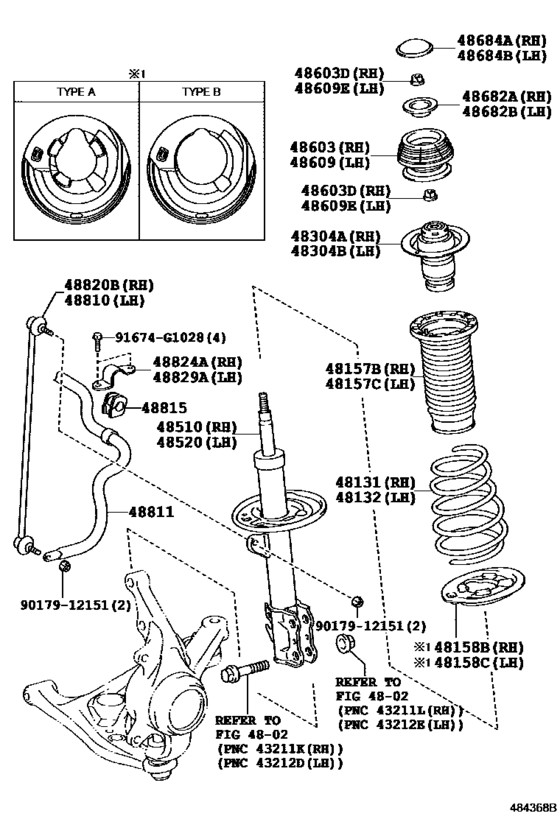

Front Spring & Shock Absorber ([02.2014 - ] (1402- )) 33

#	OEM	Part name
48131	48131-52L00	Spring, Front Coil, Rh
48131	48131-52M61	Spring, Front Coil, Rh
48131	48131-52M50	Spring, Front Coil
48131	48131-52M51	Spring, Front Coil
48131	48131-52M60	Spring, Front Coil, Rh
48157	48157-52030	Insulator, Front Coil Spring, Upper
48157	48157-52040	Insulator, Front Coil Spring, Upper
48157	48157-52050	Insulator, Front Coil Spring, Upper
48158	48158-52010	Insulator, Front Coil Spring, Lower
48158	48158-52020	Insulator, Front Coil Spring, Lower
48304	48304-52050	Bumper Sub-Assy, Front Spring, No.1
48304	48304-52051	Bumper Sub-Assy, Front Spring, No.1
48304	48304-52111	Bumper Sub-Assy, Front Spring, No.1
48510	48510-52G10	Absorber Assy, Shock, Front Rh
48510	48510-52G11	Absorber Assy, Shock, Front Rh
48510	48510-52J80	Absorber Assy, Shock, Front Rh
48510	48510-52N10	Absorber Assy, Shock, Front Rh
48510	48510-52Q20	Absorber Assy, Shock, Front Rh
48520	48520-52510	Absorber Assy, Shock, Front Lh
48520	48520-52511	Absorber Assy, Shock, Front Lh
48520	48520-52680	Absorber Assy, Shock, Front Lh
48520	48520-52B10	Absorber Assy, Shock, Front Lh
48520	48520-52D20	Absorber Assy, Shock, Front Lh
48603	48609-52100	Support Sub-Assy, Front Suspension
48603	90179-12145	Nut
48682	48682-52040	Support, Front Suspension, No.2
48684	48684-52020	Cover, Bearing Dust
48810	48820-52030	Link Assy, Front Stabilizer
48811	48811-52240	Bar, Stabilizer, Front
48815	48815-52090	Bush, Front Stabilizer Bar, No.1
48824	48824-52060	Bracket, Front Stabilizer, No.1
91674	91674-G1028	BOLT FLANGE
9017912151	90179-12151	Nut(For Front Stabilizer Link)

OEM	Part name	Category
48131-52L00	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([02.2014 - ] (1402- ))
48131-52M50	Spring, Front Coil	Front Spring & Shock Absorber ([02.2014 - ] (1402- ))
48131-52M51	Spring, Front Coil	Front Spring & Shock Absorber ([02.2014 - ] (1402- ))
48131-52M60	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([02.2014 - ] (1402- ))
48131-52M61	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([02.2014 - ] (1402- ))
48157-52030	Insulator, Front Coil Spring, Upper	Front Spring & Shock Absorber ([02.2014 - ] (1402- ))
48157-52040	Insulator, Front Coil Spring, Upper	Front Spring & Shock Absorber ([02.2014 - ] (1402- ))
48157-52050	Insulator, Front Coil Spring, Upper	Front Spring & Shock Absorber ([02.2014 - ] (1402- ))
48158-52010	Insulator, Front Coil Spring, Lower	Front Spring & Shock Absorber ([02.2014 - ] (1402- ))
48158-52020	Insulator, Front Coil Spring, Lower	Front Spring & Shock Absorber ([02.2014 - ] (1402- ))
48304-52050	Bumper Sub-Assy, Front Spring, No.1	Front Spring & Shock Absorber ([02.2014 - ] (1402- ))
48304-52051	Bumper Sub-Assy, Front Spring, No.1	Front Spring & Shock Absorber ([02.2014 - ] (1402- ))
48304-52111	Bumper Sub-Assy, Front Spring, No.1	Front Spring & Shock Absorber ([02.2014 - ] (1402- ))
48510-52G10	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([02.2014 - ] (1402- ))
48510-52G11	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([02.2014 - ] (1402- ))
48510-52J80	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([02.2014 - ] (1402- ))
48510-52N10	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([02.2014 - ] (1402- ))
48510-52Q20	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([02.2014 - ] (1402- ))
48520-52510	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([02.2014 - ] (1402- ))
48520-52511	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([02.2014 - ] (1402- ))
48520-52680	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([02.2014 - ] (1402- ))
48520-52B10	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([02.2014 - ] (1402- ))
48520-52D20	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([02.2014 - ] (1402- ))
48609-52100	Support Sub-Assy, Front Suspension	Front Spring & Shock Absorber ([02.2014 - ] (1402- ))
48682-52040	Support, Front Suspension, No.2	Front Spring & Shock Absorber ([02.2014 - ] (1402- ))
48684-52020	Cover, Bearing Dust	Front Spring & Shock Absorber ([02.2014 - ] (1402- ))
48811-52240	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([02.2014 - ] (1402- ))
48815-52090	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([02.2014 - ] (1402- ))
48820-52030	Link Assy, Front Stabilizer	Front Spring & Shock Absorber ([02.2014 - ] (1402- ))
48824-52060	Bracket, Front Stabilizer, No.1	Front Spring & Shock Absorber ([02.2014 - ] (1402- ))
90179-12145	Nut	Front Spring & Shock Absorber ([02.2014 - ] (1402- ))
90179-12151	Nut(For Front Stabilizer Link)	Front Spring & Shock Absorber ([02.2014 - ] (1402- ))
91674-G1028	BOLT FLANGE	Front Spring & Shock Absorber ([02.2014 - ] (1402- ))
