Search › Model › NCP130

NCP130

Toyota YARIS-ECHO-VIOS-LIMO · 2011 · 3,571 parts · 230 categories

3,571 items

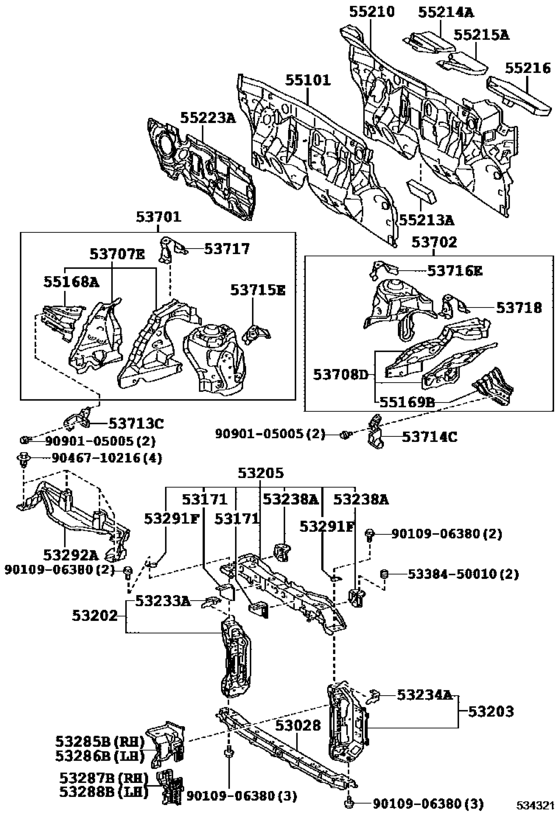

Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701)) 55

#	OEM	Part name
53028	53028-52070	Support Sub-Assy, Radiator, Lower
53171	53171-52030	Retainer, Radiator Support
53171	53171-52070	Retainer, Radiator Support
53171	53171-52100	Retainer, Radiator Support
53171	53171-52110	Retainer, Radiator Support
53202	53202-52908	Support Sub-Assy, Radiator, Rh
53203	53203-52906	Support Sub-Assy, Radiator, Lh
53205	53205-52904	Support Sub-Assy, Radiator, Upper
53205	53205-52907	Support Sub-Assy, Radiator, Upper
53205	53205-52910	Support Sub-Assy, Radiator, Upper
53233	53233-52050	Bracket, Headlamp, No.1 Rh
53234	53234-52060	Bracket, Headlamp, No.1 Lh
53238	53238-52030	Bracket, Hood Bumper Mounting
53285	53285-52350	Seal, Radiator Side Air, No.1
53285	53285-52470	Seal, Radiator Side Air, No.1
53286	53286-52290	Seal, Radiator Side Air, No.2
53286	53286-52390	Seal, Radiator Side Air, No.2
53287	53287-52130	Extension, Radiator Support, Rh
53287	53287-52230	Extension, Radiator Support, Rh
53288	53288-52130	Extension, Radiator Support, Lh
53288	53288-52220	Extension, Radiator Support, Lh
53291	53291-52070	Seal, Radiator Support To Frame
53292	53292-52040	Seal, Radiator Support, Upper
53701	53701-52190	Apron Sub-Assy, Front Fender, Rh
53702	53702-52190	Apron Sub-Assy, Front Fender, Lh
53707	53707-52030	Apron Sub-Assy, Fender Side, Rh
53707	53707-52060	Apron Sub-Assy, Fender Side, Rh
53708	53708-52030	Apron Sub-Assy, Fender Side, Lh
53708	53708-52060	Apron Sub-Assy, Fender Side, Lh
53713	53713-52070	Extension, Front Fender Apron, Front Rh
53714	53714-52080	Extension, Front Fender Apron, Front Lh
53714	53714-52100	Extension, Front Fender Apron, Front Lh
53715	53715-52030	Extension, Front Fender Apron, Rear Rh
53716	53716-52030	Extension, Front Fender Apron, Rear Lh
53717	53717-52110	Plate, Fender Apron, Rh
53718	53718-52110	Plate, Fender Apron, Lh
55101	55101-52481	Panel Sub-Assy, Dash
55101	55101-52521	Panel Sub-Assy, Dash
55101	55101-52511	Panel Sub-Assy, Dash
55101	55101-52690	Panel Sub-Assy, Dash
55101	55101-52471	Panel Sub-Assy, Dash
55168	55168-52130	Bracket, Front Fender Mounting, Rh
55169	55169-52130	Bracket, Front Fender Mounting, Lh
55210	55210-52310	Insulator Assy, Dash Panel
55210	55210-52400	Insulator Assy, Dash Panel
55213	55213-52190	Pad, Dash Panel Silencer
55214	55214-52160	Pad, Dash Panel Insulator, No.2
55215	55215-52101	Pad, Dash Panel Insulator, No.3
55216	55216-52010	Pad, Dash Panel Insulator, No.4
55223	55223-52100	Insulator, Dash Panel, Outer
55223	55223-52101	Insulator, Dash Panel, Outer
5338450010	53384-50010	Cushion, Hood Bumper
9010906380	90109-06380	BOLT
9046710216	90467-10216	Clip, Engine Under Cover, No.2
9090105005	90901-05005	New Genuine Part

OEM	Part name	Category
53028-52070	Support Sub-Assy, Radiator, Lower	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
53171-52030	Retainer, Radiator Support	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
53171-52070	Retainer, Radiator Support	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
53171-52100	Retainer, Radiator Support	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
53171-52110	Retainer, Radiator Support	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
53202-52908	Support Sub-Assy, Radiator, Rh	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
53203-52906	Support Sub-Assy, Radiator, Lh	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
53205-52904	Support Sub-Assy, Radiator, Upper	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
53205-52907	Support Sub-Assy, Radiator, Upper	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
53205-52910	Support Sub-Assy, Radiator, Upper	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
53233-52050	Bracket, Headlamp, No.1 Rh	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
53234-52060	Bracket, Headlamp, No.1 Lh	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
53238-52030	Bracket, Hood Bumper Mounting	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
53285-52350	Seal, Radiator Side Air, No.1	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
53285-52470	Seal, Radiator Side Air, No.1	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
53286-52290	Seal, Radiator Side Air, No.2	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
53286-52390	Seal, Radiator Side Air, No.2	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
53287-52130	Extension, Radiator Support, Rh	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
53287-52230	Extension, Radiator Support, Rh	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
53288-52130	Extension, Radiator Support, Lh	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
53288-52220	Extension, Radiator Support, Lh	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
53291-52070	Seal, Radiator Support To Frame	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
53292-52040	Seal, Radiator Support, Upper	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
53384-50010	Cushion, Hood Bumper	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
53701-52190	Apron Sub-Assy, Front Fender, Rh	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
53702-52190	Apron Sub-Assy, Front Fender, Lh	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
53707-52030	Apron Sub-Assy, Fender Side, Rh	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
53707-52060	Apron Sub-Assy, Fender Side, Rh	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
53708-52030	Apron Sub-Assy, Fender Side, Lh	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
53708-52060	Apron Sub-Assy, Fender Side, Lh	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
53713-52070	Extension, Front Fender Apron, Front Rh	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
53714-52080	Extension, Front Fender Apron, Front Lh	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
53714-52100	Extension, Front Fender Apron, Front Lh	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
53715-52030	Extension, Front Fender Apron, Rear Rh	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
53716-52030	Extension, Front Fender Apron, Rear Lh	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
53717-52110	Plate, Fender Apron, Rh	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
53718-52110	Plate, Fender Apron, Lh	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
55101-52471	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
55101-52481	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
55101-52511	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
55101-52521	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
55101-52690	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
55168-52130	Bracket, Front Fender Mounting, Rh	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
55169-52130	Bracket, Front Fender Mounting, Lh	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
55210-52310	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
55210-52400	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
55213-52190	Pad, Dash Panel Silencer	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
55214-52160	Pad, Dash Panel Insulator, No.2	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
55215-52101	Pad, Dash Panel Insulator, No.3	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
55216-52010	Pad, Dash Panel Insulator, No.4	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
55223-52100	Insulator, Dash Panel, Outer	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
55223-52101	Insulator, Dash Panel, Outer	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
90109-06380	BOLT	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
90467-10216	Clip, Engine Under Cover, No.2	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))
90901-05005	New Genuine Part	Front Fender Apron & Dash Panel ([07.2014 - 01.2017] (1407-1701))

Source: Public OEM parts-catalog data
Variants: 2 / 12
Category: 230
Collected: 2026-08-04
