NCP130

Toyota YARIS-ECHO-VIOS-LIMO · 2011 · 3,571 parts · 230 categories
NCP130 ×

← Back to categories

3,571 items

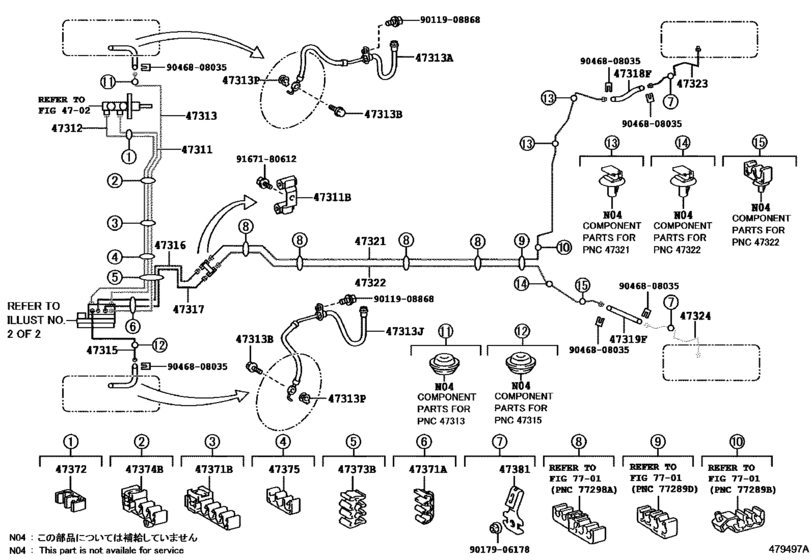

Brake Tube & Clamp ([08.2011 - 07.2014] BRAKE TUBE,W(VSC) (1108-1407)ARL ; (1407- )) 50
#OEMPart name
47311 47311-52480 Tube, Front Brake, No.1
47311 90412-10260 Way, No.1(For Front Brake Tube)
47312 47312-52440 Tube, Front Brake, No.2
47313 47313-52230 Tube, Front Brake, No.3
47313 47313-52231 Tube, Front Brake, No.3
47313 90947-02E07 Hose, Flexible, No.1(For Front)
47313 90947-02G34 Hose, Flexible, No.1(For Front)
47313 90947-02H35 Hose, Flexible, No.1(For Front)
47313 90947-02H71 Hose, Flexible, No.1(For Front)
47313 90401-10058 Bolt, Union(For Front Flexible Hose)
47313 90947-02E08 Hose, Flexible, No.1(For Front)
47313 90947-02G35 Hose, Flexible, No.1(For Front)
47313 90947-02H36 Hose, Flexible, No.1(For Front)
47313 90947-02H72 Hose, Flexible, No.2(For Front)
47313 47389-50020 Gasket(For Front Flexible Hose)
47315 47315-52230 Tube, Front Brake, No.5
47315 47315-52231 Tube, Front Brake, No.5
47316 47316-52190 Tube, Front Brake, No.6
47316 47316-52191 Tube, Front Brake, No.6
47317 47317-52190 Tube, Front Brake, No.7
47317 47317-52191 Tube, Front Brake, No.7
47318 90947-02E09 Hose, Clutch
47318 90947-02H31 Hose, Flexible(For Rear Rh)
47319 90947-02E10 Hose, Flexible(For Rear Lh)
47319 90947-02H32 Hose, Flexible(For Rear Lh)
47321 47321-52340 Tube, Rear Brake, No.1
47321 47321-52341 Tube, Rear Brake, No.1
47322 47322-52320 Tube, Rear Brake, No.2
47322 47322-52321 Tube, Rear Brake, No.2
47323 47323-52100 Tube, Rear Brake, No.3
47323 47323-52101 Tube, Rear Brake, No.3
47324 47324-52090 Tube, Rear Brake, No.4
47324 47324-52091 Tube, Rear Brake, No.4
47371 90464-00868 Clamp, Brake Tube, No.1
47371 90949-01D92 Clamp, Brake Tube, No.1
47371 90949-01D85 Clamp, Brake Tube, No.6
47371 90949-01D97 Clamp, Brake Tube, No.6
47372 90464-00899 Clamp, Brake Tube, No.1
47373 90464-00925 Clamp, Brake Tube, No.3 - BRAKE TUBE, NO.5
47373 90949-01D98 Clamp, Brake Tube, No.6
47374 90949-01D84 Clamp, Brake Tube, No.2
47374 90949-01D94 Clamp, Brake Tube, No.2
47375 90464-00929 Clamp, Brake Tube, No.2
47375 90949-01D93 Clamp, Brake Tube, No.9
47381 47381-52020 Bracket, Brake Tube Clamp No.1
9011908868 90119-08868 BOLT WWASHER
9017906178 90179-06178 Nut (For Rear Wiper Arm Setting)
9046808035 90468-08035 CLIP
9046808035 90468-A0007 New Genuine Part
9167180612 91671-80612 Bolt
