Search › Model › NCP13

NCP13

Toyota VITZ · 2000 · 3,936 parts · 236 categories

← Back to categories

3,936 items

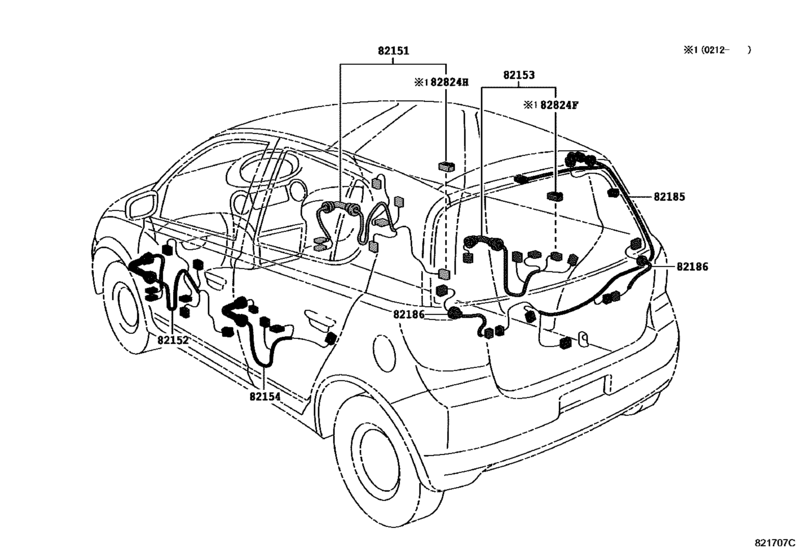

Wiring & Clamp ([01.1999 - ] ﾄﾞｱ (9901- )5D) 12

#	OEM	Part name
82151	82151-52081	Wire, Front Door, Rh
82151	82151-52082	Wire, Front Door, Rh
82151	82151-52083	Wire, Front Door, Rh
82152	82152-52081	Wire, Front Door, Lh
82153	82153-52020	Wire, Rear Door, No.1
82154	82154-52020	Wire, Rear Door, No.2
82185	82185-52040	Wire, Back Door, No.2
82185	82185-52060	Wire, Back Door, No.2
82185	82185-52170	Wire, Back Door, No.2
82185	82185-52260	Wire, Back Door, No.2
82186	82186-52010	Wire, Rear Window, No.1
82824	82824-52050	Connector, Wiring Harness

OEM	Part name	Category
82151-52081	Wire, Front Door, Rh	Wiring & Clamp ([01.1999 - ] ﾄﾞｱ (9901- )5D)
82151-52082	Wire, Front Door, Rh	Wiring & Clamp ([01.1999 - ] ﾄﾞｱ (9901- )5D)
82151-52083	Wire, Front Door, Rh	Wiring & Clamp ([01.1999 - ] ﾄﾞｱ (9901- )5D)
82152-52081	Wire, Front Door, Lh	Wiring & Clamp ([01.1999 - ] ﾄﾞｱ (9901- )5D)
82153-52020	Wire, Rear Door, No.1	Wiring & Clamp ([01.1999 - ] ﾄﾞｱ (9901- )5D)
82154-52020	Wire, Rear Door, No.2	Wiring & Clamp ([01.1999 - ] ﾄﾞｱ (9901- )5D)
82185-52040	Wire, Back Door, No.2	Wiring & Clamp ([01.1999 - ] ﾄﾞｱ (9901- )5D)
82185-52060	Wire, Back Door, No.2	Wiring & Clamp ([01.1999 - ] ﾄﾞｱ (9901- )5D)
82185-52170	Wire, Back Door, No.2	Wiring & Clamp ([01.1999 - ] ﾄﾞｱ (9901- )5D)
82185-52260	Wire, Back Door, No.2	Wiring & Clamp ([01.1999 - ] ﾄﾞｱ (9901- )5D)
82186-52010	Wire, Rear Window, No.1	Wiring & Clamp ([01.1999 - ] ﾄﾞｱ (9901- )5D)
82824-52050	Connector, Wiring Harness	Wiring & Clamp ([01.1999 - ] ﾄﾞｱ (9901- )5D)

Source: Public OEM parts-catalog data
Variants: 1 / 4
Category: 236
Collected: 2026-08-03
