Search › Model › NCP13

NCP13

Toyota VITZ · 2000 · 3,936 parts · 236 categories

3,936 items

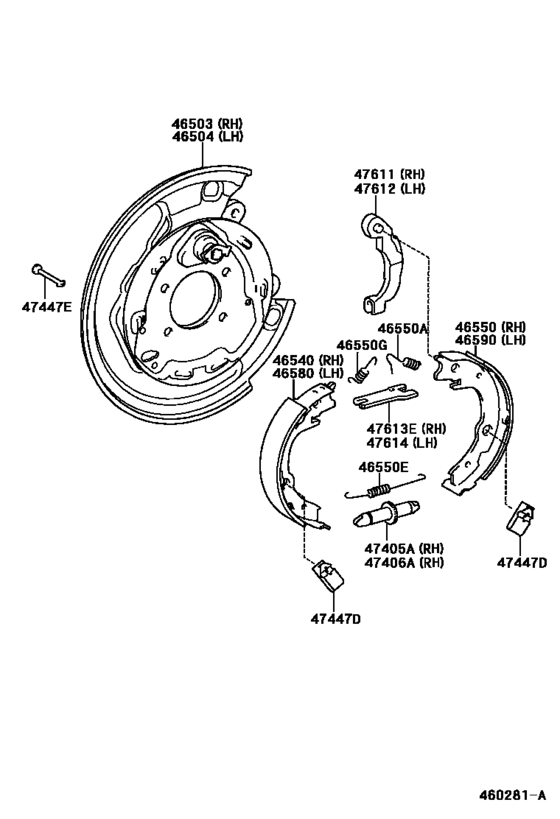

Parking Brake & Cable ([10.2000 - ] W(REAR DISK BRAKE) (0010- )RS) 22

#	OEM	Part name
46503	46503-52010	Plate Sub-Assy, Parking Brake, Rh
46503	46503-52040	Plate Sub-Assy, Parking Brake, Rh
46503	46503-52011	Plate Sub-Assy, Parking Brake, Rh
46503	46503-52012	Plate Sub-Assy, Parking Brake, Rh
46503	46503-52013	Plate Sub-Assy, Parking Brake, Rh
46504	46504-52010	Plate Sub-Assy, Parking Brake, Lh
46504	46504-52040	Plate Sub-Assy, Parking Brake, Lh
46504	46504-52011	Plate Sub-Assy, Parking Brake, Lh
46504	46504-52012	Plate Sub-Assy, Parking Brake, Lh
46504	46504-52013	Plate Sub-Assy, Parking Brake, Lh
46540	46540-20080	Shoe Assy, Parking Brake, Rh Or Center No.1
46550	90905-06044	Spring, Tension, No.1(For Parking Brake Shoe Return)
46550	90905-06045	Spring, Tension, No.1(For Parking Brake Shoe Return)
46550	90905-06046	Spring, Tension, No.1(For Parking Brake Shoe Return)
46550	90905-06043	Spring, Tension, No.3(For Parking Brake Shoe Return)
47405	47405-32010	Screw Set, Shoe Adjusting, Rh(For Parking Brake)
47406	47406-32010	Screw Set, Shoe Adjusting, Lh(For Parking Brake)
47447	47446-32010	Spring, Compression(For Parking Brake Shoe Hold Down)
47447	47447-11010	Pin, Shoe Hold Down Spring(For Parking Brake)
47611	47601-32030	Lever, Parking Brake Shoe, Rh
47612	47602-32030	Lever, Parking Brake Shoe, Lh
47613	47613-32030	Strut, Parking Brake Shoe, Rh

OEM	Part name	Category
46503-52010	Plate Sub-Assy, Parking Brake, Rh	Parking Brake & Cable ([10.2000 - ] W(REAR DISK BRAKE) (0010- )RS)
46503-52011	Plate Sub-Assy, Parking Brake, Rh	Parking Brake & Cable ([10.2000 - ] W(REAR DISK BRAKE) (0010- )RS)
46503-52012	Plate Sub-Assy, Parking Brake, Rh	Parking Brake & Cable ([10.2000 - ] W(REAR DISK BRAKE) (0010- )RS)
46503-52013	Plate Sub-Assy, Parking Brake, Rh	Parking Brake & Cable ([10.2000 - ] W(REAR DISK BRAKE) (0010- )RS)
46503-52040	Plate Sub-Assy, Parking Brake, Rh	Parking Brake & Cable ([10.2000 - ] W(REAR DISK BRAKE) (0010- )RS)
46504-52010	Plate Sub-Assy, Parking Brake, Lh	Parking Brake & Cable ([10.2000 - ] W(REAR DISK BRAKE) (0010- )RS)
46504-52011	Plate Sub-Assy, Parking Brake, Lh	Parking Brake & Cable ([10.2000 - ] W(REAR DISK BRAKE) (0010- )RS)
46504-52012	Plate Sub-Assy, Parking Brake, Lh	Parking Brake & Cable ([10.2000 - ] W(REAR DISK BRAKE) (0010- )RS)
46504-52013	Plate Sub-Assy, Parking Brake, Lh	Parking Brake & Cable ([10.2000 - ] W(REAR DISK BRAKE) (0010- )RS)
46504-52040	Plate Sub-Assy, Parking Brake, Lh	Parking Brake & Cable ([10.2000 - ] W(REAR DISK BRAKE) (0010- )RS)
46540-20080	Shoe Assy, Parking Brake, Rh Or Center No.1	Parking Brake & Cable ([10.2000 - ] W(REAR DISK BRAKE) (0010- )RS)
47405-32010	Screw Set, Shoe Adjusting, Rh(For Parking Brake)	Parking Brake & Cable ([10.2000 - ] W(REAR DISK BRAKE) (0010- )RS)
47406-32010	Screw Set, Shoe Adjusting, Lh(For Parking Brake)	Parking Brake & Cable ([10.2000 - ] W(REAR DISK BRAKE) (0010- )RS)
47446-32010	Spring, Compression(For Parking Brake Shoe Hold Down)	Parking Brake & Cable ([10.2000 - ] W(REAR DISK BRAKE) (0010- )RS)
47447-11010	Pin, Shoe Hold Down Spring(For Parking Brake)	Parking Brake & Cable ([10.2000 - ] W(REAR DISK BRAKE) (0010- )RS)
47601-32030	Lever, Parking Brake Shoe, Rh	Parking Brake & Cable ([10.2000 - ] W(REAR DISK BRAKE) (0010- )RS)
47602-32030	Lever, Parking Brake Shoe, Lh	Parking Brake & Cable ([10.2000 - ] W(REAR DISK BRAKE) (0010- )RS)
47613-32030	Strut, Parking Brake Shoe, Rh	Parking Brake & Cable ([10.2000 - ] W(REAR DISK BRAKE) (0010- )RS)
90905-06043	Spring, Tension, No.3(For Parking Brake Shoe Return)	Parking Brake & Cable ([10.2000 - ] W(REAR DISK BRAKE) (0010- )RS)
90905-06044	Spring, Tension, No.1(For Parking Brake Shoe Return)	Parking Brake & Cable ([10.2000 - ] W(REAR DISK BRAKE) (0010- )RS)
90905-06045	Spring, Tension, No.1(For Parking Brake Shoe Return)	Parking Brake & Cable ([10.2000 - ] W(REAR DISK BRAKE) (0010- )RS)
90905-06046	Spring, Tension, No.1(For Parking Brake Shoe Return)	Parking Brake & Cable ([10.2000 - ] W(REAR DISK BRAKE) (0010- )RS)
