Search › Model › NCP13

NCP13

Toyota VITZ · 2000 · 3,936 parts · 236 categories

3,936 items

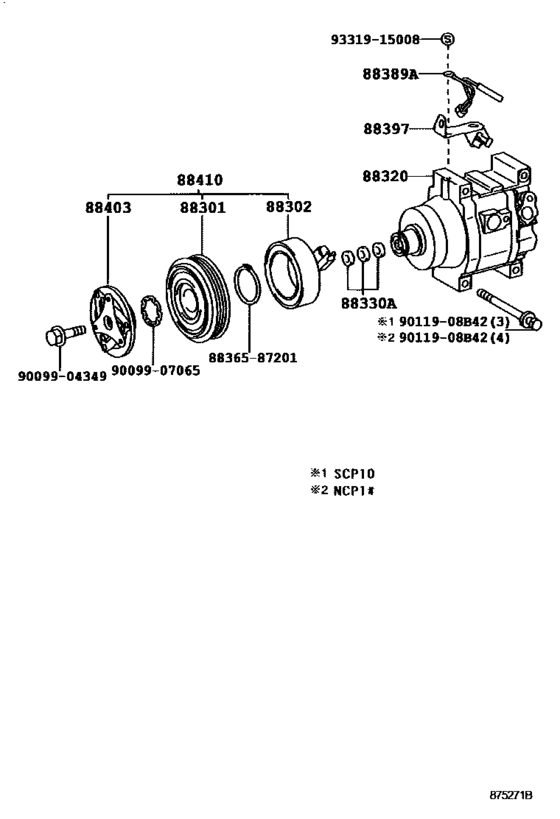

Heating & Air Conditioning - Compressor ([01.1999 - 12.2001] (9901-0112)) 24

#	OEM	Part name
88301	88412-52030	Rotor Sub-Assy, Magnet Clutch
88301	88412-52070	Rotor Sub-Assy, Magnet Clutch
88302	88411-16070	Stator Sub-Assy, Magnet Clutch
88302	88411-1A050	Stator Sub-Assy, Magnet Clutch
88320	88320-52010	Compressor Assy, Cooler
88320	88320-52120	Compressor Assy, Cooler
88320	88320-52340	Compressor Assy, Cooler
88320	88320-52400	Compressor Assy, Cooler
88330	88335-14020	Washer
88389	88389-10020	Wire, Compressor
88397	88397-52020	Clip, Sensor
88403	88403-16020	Hub Sub-Assy, Magnet Clutch
88403	88403-1A020	Hub Sub-Assy, Magnet Clutch
88410	88410-2B260	Clutch Assy, Magnet
88410	88410-2B261	Clutch Assy, Magnet
88410	88410-2B280	Clutch Assy, Magnet
88410	88410-52030	Clutch Assy, Magnet
88410	88410-52080	Clutch Assy, Magnet
88410	88410-52160	Clutch Assy, Magnet
9011908	90119-08B42	BOLT WWASHER
8836587201	88365-87201	Ring, Snap
9009904349	90099-04349	Bolt, Magnet Clutch Setting
9009907065	90099-07065	SNAP RING
9331915008	93319-15008	SCREW

OEM	Part name	Category
88320-52010	Compressor Assy, Cooler	Heating & Air Conditioning - Compressor ([01.1999 - 12.2001] (9901-0112))
88320-52120	Compressor Assy, Cooler	Heating & Air Conditioning - Compressor ([01.1999 - 12.2001] (9901-0112))
88320-52340	Compressor Assy, Cooler	Heating & Air Conditioning - Compressor ([01.1999 - 12.2001] (9901-0112))
88320-52400	Compressor Assy, Cooler	Heating & Air Conditioning - Compressor ([01.1999 - 12.2001] (9901-0112))
88335-14020	Washer	Heating & Air Conditioning - Compressor ([01.1999 - 12.2001] (9901-0112))
88365-87201	Ring, Snap	Heating & Air Conditioning - Compressor ([01.1999 - 12.2001] (9901-0112))
88389-10020	Wire, Compressor	Heating & Air Conditioning - Compressor ([01.1999 - 12.2001] (9901-0112))
88397-52020	Clip, Sensor	Heating & Air Conditioning - Compressor ([01.1999 - 12.2001] (9901-0112))
88403-16020	Hub Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([01.1999 - 12.2001] (9901-0112))
88403-1A020	Hub Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([01.1999 - 12.2001] (9901-0112))
88410-2B260	Clutch Assy, Magnet	Heating & Air Conditioning - Compressor ([01.1999 - 12.2001] (9901-0112))
88410-2B261	Clutch Assy, Magnet	Heating & Air Conditioning - Compressor ([01.1999 - 12.2001] (9901-0112))
88410-2B280	Clutch Assy, Magnet	Heating & Air Conditioning - Compressor ([01.1999 - 12.2001] (9901-0112))
88410-52030	Clutch Assy, Magnet	Heating & Air Conditioning - Compressor ([01.1999 - 12.2001] (9901-0112))
88410-52080	Clutch Assy, Magnet	Heating & Air Conditioning - Compressor ([01.1999 - 12.2001] (9901-0112))
88410-52160	Clutch Assy, Magnet	Heating & Air Conditioning - Compressor ([01.1999 - 12.2001] (9901-0112))
88411-16070	Stator Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([01.1999 - 12.2001] (9901-0112))
88411-1A050	Stator Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([01.1999 - 12.2001] (9901-0112))
88412-52030	Rotor Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([01.1999 - 12.2001] (9901-0112))
88412-52070	Rotor Sub-Assy, Magnet Clutch	Heating & Air Conditioning - Compressor ([01.1999 - 12.2001] (9901-0112))
90099-04349	Bolt, Magnet Clutch Setting	Heating & Air Conditioning - Compressor ([01.1999 - 12.2001] (9901-0112))
90099-07065	SNAP RING	Heating & Air Conditioning - Compressor ([01.1999 - 12.2001] (9901-0112))
90119-08B42	BOLT WWASHER	Heating & Air Conditioning - Compressor ([01.1999 - 12.2001] (9901-0112))
93319-15008	SCREW	Heating & Air Conditioning - Compressor ([01.1999 - 12.2001] (9901-0112))

Source: Public OEM parts-catalog data
Variants: 1 / 4
Category: 236
Collected: 2026-08-03
