NCP122

Toyota RACTIS · 2010 · 3,135 parts · 219 categories
NCP122 ×

← Back to categories

3,135 items

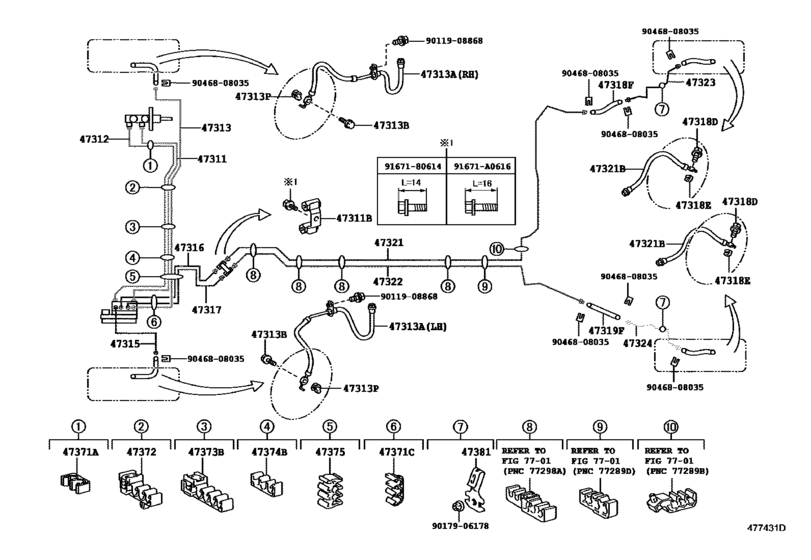

Brake Tube & Clamp ([11.2010 - 05.2014] ｱﾘ(VSC) (1011-1405)NCP12#,NSP122 ; (1111-1405)NSP120) 60
#OEMPart name
47311 47311-52470 Tube, Front Brake, No.1
47311 47311-52610 Tube, Front Brake, No.1
47311 90412-10260 Way, No.1(For Front Brake Tube)
47312 47312-52420 Tube, Front Brake, No.2
47312 47312-52430 Tube, Front Brake, No.2
47312 47312-52570 Tube, Front Brake, No.2
47313 47313-52220 Tube, Front Brake, No.3
47313 47313-52230 Tube, Front Brake, No.3
47313 47313-52231 Tube, Front Brake, No.3
47313 90947-02E07 Hose, Flexible, No.1(For Front)
47313 90947-02E08 Hose, Flexible, No.1(For Front)
47313 90947-02G34 Hose, Flexible, No.1(For Front)
47313 90947-02G35 Hose, Flexible, No.1(For Front)
47313 90947-02H35 Hose, Flexible, No.1(For Front)
47313 90947-02H36 Hose, Flexible, No.1(For Front)
47313 90401-10058 Bolt, Union(For Front Flexible Hose)
47313 47389-50020 Gasket(For Front Flexible Hose)
47315 47315-52220 Tube, Front Brake, No.5
47315 47315-52230 Tube, Front Brake, No.5
47315 47315-52231 Tube, Front Brake, No.5
47316 47316-52150 Tube, Front Brake, No.6
47316 47316-52190 Tube, Front Brake, No.6
47316 47316-52191 Tube, Front Brake, No.6
47317 47317-52150 Tube, Front Brake, No.7
47317 47317-52190 Tube, Front Brake, No.7
47317 47317-52191 Tube, Front Brake, No.7
47318 90947-02E09 Hose, Clutch
47318 90947-02G36 Hose, Flexible(For Rear Rh)
47318 90947-02H31 Hose, Flexible(For Rear Rh)
47319 90947-02E10 Hose, Flexible(For Rear Lh)
47319 90947-02G38 Hose, Flexible(For Rear Lh)
47319 90947-02H32 Hose, Flexible(For Rear Lh)
47321 47321-52320 Tube, Rear Brake, No.1
47321 47321-52321 Tube, Rear Brake, No.1
47322 47322-52300 Tube, Rear Brake, No.2
47322 47322-52301 Tube, Rear Brake, No.2
47323 47323-52130 Tube, Rear Brake, No.3
47323 47323-52131 Tube, Rear Brake, No.3
47324 47324-52120 Tube, Rear Brake, No.4
47324 47324-52121 Tube, Rear Brake, No.4
47371 90464-00868 Clamp, Brake Tube, No.1
47371 90464-00899 Clamp, Brake Tube, No.1
47372 90464-00929 Clamp, Brake Tube, No.2
47372 90949-01D02 Clamp, Brake Tube, No.2
47372 90949-01D94 Clamp, Brake Tube, No.2
47373 90949-01D83 Clamp, Brake Tube, No.3
47373 90949-01D84 Clamp, Brake Tube, No.2
47373 90949-01D97 Clamp, Brake Tube, No.6
47374 90464-00925 Clamp, Brake Tube, No.3 - BRAKE TUBE, NO.5
47374 90949-01969 Clamp, Brake Tube, No.6
47374 90080-46365 Clamp, Brake Tube, No.5
47374 90949-01D98 Clamp, Brake Tube, No.6
47375 90949-01D85 Clamp, Brake Tube, No.6
47381 47381-52020 Bracket, Brake Tube Clamp No.1
91671 91671-A0616 BOLT FLANGE
9011908868 90119-08868 BOLT WWASHER
9017906178 90179-06178 Nut (For Rear Wiper Arm Setting)
9046808035 90468-08035 CLIP
9046808035 90468-A0007 New Genuine Part
9167180614 91671-80614 Bolt (For Transmission Control Cable Bracket)
