Search › Model › NCP12

NCP12

Toyota PLATZ · 1999 · 4,358 parts · 203 categories

← Back to categories

4,358 items

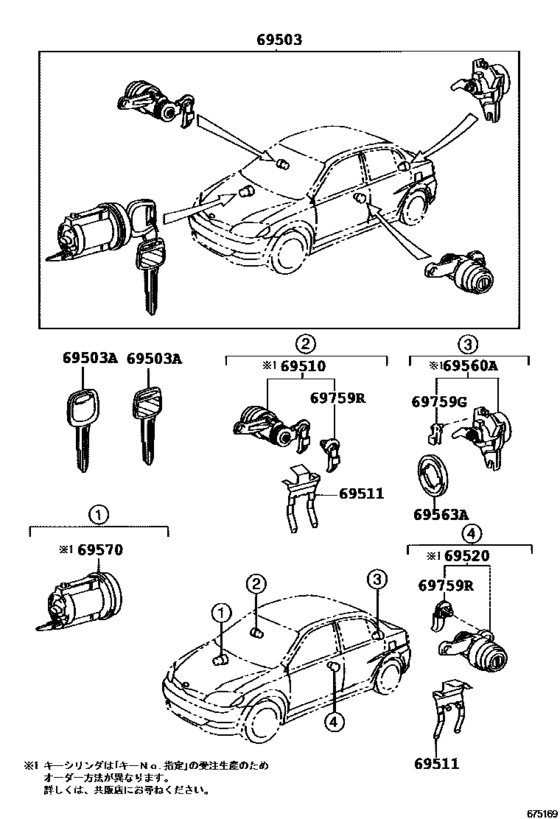

Lock Cylinder Set ([08.2002 - ] (0208- )) 18

#	OEM	Part name
69503	69005-52170	Cylinder Set, Lock
69503	69005-52470	Cylinder Set, Lock
69503	69005-52500	Cylinder Set, Lock
69503	90999-00166	Key, Blank
69503	90999-00167	Key, Blank
69503	90999-00186	Key, Blank
69503	90999-00199	Key, Blank
69510	69510-52120	Cylinder Assy, Front Door Lock, Rh
69511	69511-16030	Retainer, Front Door Lock Cylinder
69520	69520-52120	Cylinder Assy, Front Door Lock, Lh
69560	69560-52180	Cylinder Assy, Luggage Compartment Door Lock
69563	69563-16050	Pad, Back Door Lock Cylinder
69563	69563-52030	Pad, Luggage Compartment Door Lock Cylinder
69570	69570-12180	Cylinder Assy, Ignition Switch Lock
69570	69570-12190	Cylinder Assy, Ignition Switch Lock
69759	69759-20080	Snap, Door Lock Control Link
69759	69759-32090	Snap, Rod(For Door Lock)
69759	69759-32100	Snap, Rod(For Door Lock)

OEM	Part name	Category
69005-52170	Cylinder Set, Lock	Lock Cylinder Set ([08.2002 - ] (0208- ))
69005-52470	Cylinder Set, Lock	Lock Cylinder Set ([08.2002 - ] (0208- ))
69005-52500	Cylinder Set, Lock	Lock Cylinder Set ([08.2002 - ] (0208- ))
69510-52120	Cylinder Assy, Front Door Lock, Rh	Lock Cylinder Set ([08.2002 - ] (0208- ))
69511-16030	Retainer, Front Door Lock Cylinder	Lock Cylinder Set ([08.2002 - ] (0208- ))
69520-52120	Cylinder Assy, Front Door Lock, Lh	Lock Cylinder Set ([08.2002 - ] (0208- ))
69560-52180	Cylinder Assy, Luggage Compartment Door Lock	Lock Cylinder Set ([08.2002 - ] (0208- ))
69563-16050	Pad, Back Door Lock Cylinder	Lock Cylinder Set ([08.2002 - ] (0208- ))
69563-52030	Pad, Luggage Compartment Door Lock Cylinder	Lock Cylinder Set ([08.2002 - ] (0208- ))
69570-12180	Cylinder Assy, Ignition Switch Lock	Lock Cylinder Set ([08.2002 - ] (0208- ))
69570-12190	Cylinder Assy, Ignition Switch Lock	Lock Cylinder Set ([08.2002 - ] (0208- ))
69759-20080	Snap, Door Lock Control Link	Lock Cylinder Set ([08.2002 - ] (0208- ))
69759-32090	Snap, Rod(For Door Lock)	Lock Cylinder Set ([08.2002 - ] (0208- ))
69759-32100	Snap, Rod(For Door Lock)	Lock Cylinder Set ([08.2002 - ] (0208- ))
90999-00166	Key, Blank	Lock Cylinder Set ([08.2002 - ] (0208- ))
90999-00167	Key, Blank	Lock Cylinder Set ([08.2002 - ] (0208- ))
90999-00186	Key, Blank	Lock Cylinder Set ([08.2002 - ] (0208- ))
90999-00199	Key, Blank	Lock Cylinder Set ([08.2002 - ] (0208- ))
