NCP12

Toyota PLATZ · 1999 · 4,358 parts · 203 categories
NCP12 ×

← Back to categories

4,358 items

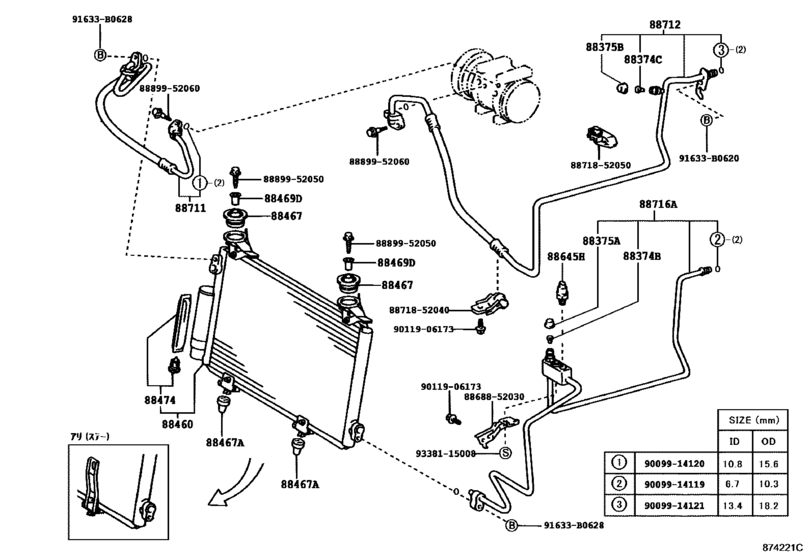

Heating & Air Conditioning - Cooler Piping ([08.1999 - 08.2002] (9908-0208)NCP1#) 34
#OEMPart name
88374 88374-30010 Valve, Service, No.1
88375 88375-30280 Cap, Service Valve (For Cooler Pipe)
88375 88375-30290 Cap, Service Valve (For Cooler Pipe)
88460 88450-52181 Condenser Assy, W/receiver
88460 88460-52010 Condenser Assy, Cooler
88460 88460-52050 Condenser Assy, Cooler
88467 88467-12180 Cushion, Cooler Condenser, No.1
88467 88467-52010 Cushion, Cooler Condenser, No.1
88467 88467-52020 Cushion, Cooler Condenser, No.2
88469 88469-52010 Collar, Condenser Bracket, No.1
88474 88474-17010 Dryer, Cooler
88474 88474-47010 Dryer, Cooler
88645 88645-60030 Switch, Pressure No.1
88711 88711-52020 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-52021 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-52030 Hose, Cooler Refrigerant Suction, No.1
88716 88706-52040 Tube Sub-Assy, Liquid, A
88716 88716-52040 Pipe, Cooler Refrigerant Liquid, A
91633 91633-B0620 New Genuine Part
91633 91631-B0618 BOLT WWASHER
91633 91633-B0628 New Genuine Part
91633 91631-B0625 BOLT W-WASHER
8868852030 88688-52030 Bracket, Cooler Diaphragm
8871852040 88718-52040 Pipe, Cooler Refrigerant Suction, No.2
8871852050 88718-52050 Pipe, Cooler Refrigerant Suction, No.2
8889952050 88899-52050 Cover, Evaporator
8889952060 88899-52060 Cover, Evaporator
8889952060 88899-52061 Cover, Evaporator
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914121 90099-14121 O-Ring, Cooler Evaporator No.1(Suction)
9011906173 90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)
9338115008 93381-15008 SCREWWWASHER
