NCP12

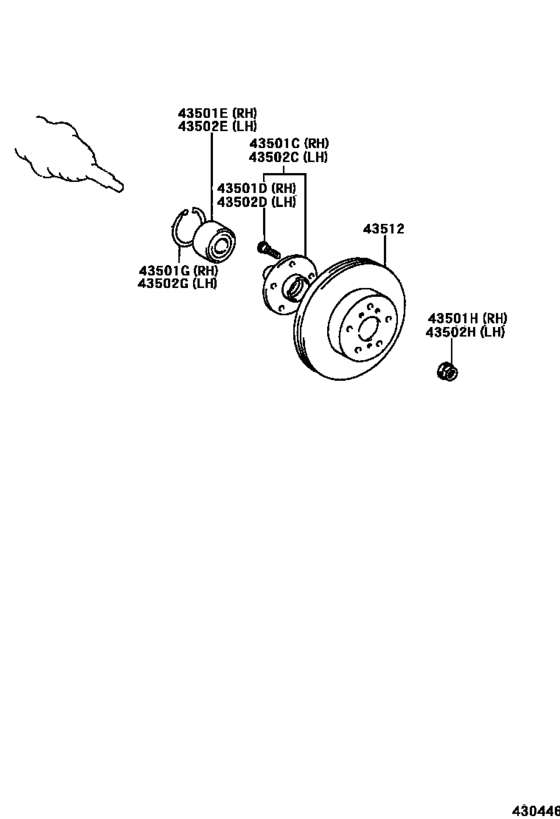

Front Axle Hub ([08.1999 - ] (9908- )) 7
| # | OEM | Part name |
|---|---|---|
| 43501 | 43502-52010 | Hub Sub-Assy, Front Axle |
| 43501 | 90942-02049 | Bolt, Hub |
| 43501 | 90942-02082 | Bolt, Hub |
| 43501 | 90369-38021 | Bearing (For Front Axle Hub) |
| 43501 | 90521-77001 | Ring, Hole Snap (For Front Axle Hub) |
| 43501 | 90177-22001 | Nut (For Axle Shaft) |
| 43512 | 43512-52010 | Disc, Front |
| OEM | Part name | Category |
|---|---|---|
| 43502-52010 | Hub Sub-Assy, Front Axle | Front Axle Hub ([08.1999 - ] (9908- )) |
| 43512-52010 | Disc, Front | Front Axle Hub ([08.1999 - ] (9908- )) |
| 90177-22001 | Nut (For Axle Shaft) | Front Axle Hub ([08.1999 - ] (9908- )) |
| 90369-38021 | Bearing (For Front Axle Hub) | Front Axle Hub ([08.1999 - ] (9908- )) |
| 90521-77001 | Ring, Hole Snap (For Front Axle Hub) | Front Axle Hub ([08.1999 - ] (9908- )) |
| 90942-02049 | Bolt, Hub | Front Axle Hub ([08.1999 - ] (9908- )) |
| 90942-02082 | Bolt, Hub | Front Axle Hub ([08.1999 - ] (9908- )) |
