NCP115

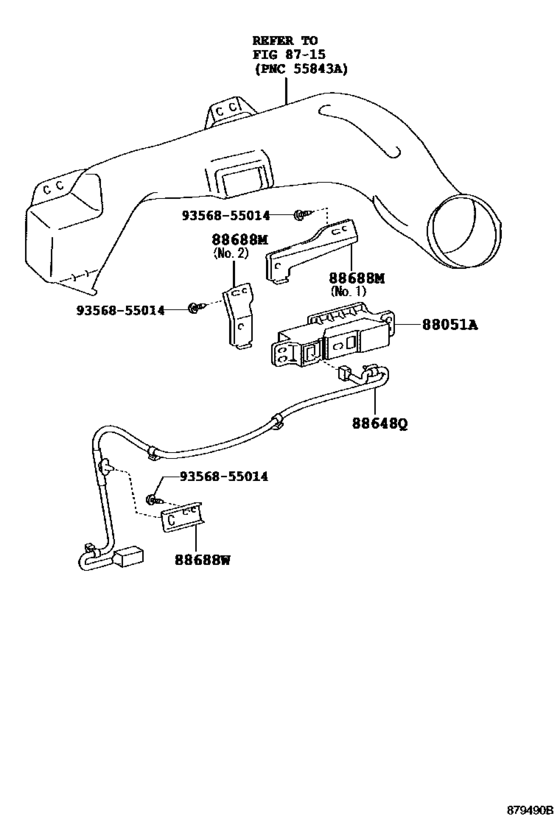

Air Purifier Or Ion Generator ([07.2007 - 08.2010] (0707-1008)G) 6
| # | OEM | Part name |
|---|---|---|
| 88051 | 88051-12010 | Generator Sub-Assy,ion |
| 88648 | 88648-52250 | Wire, Air Conditioner No.1 |
| 88688 | 88688-52320 | Bracket, Air Purifier, No.2 |
| 88688 | 88688-52330 | Bracket, Air Purifier, No.2 |
| 88688 | 88688-52310 | Bracket, Air Purifier, No.1 |
| 9356855014 | 93568-55014 | Screw |
| OEM | Part name | Category |
|---|---|---|
| 88051-12010 | Generator Sub-Assy,ion | Air Purifier Or Ion Generator ([07.2007 - 08.2010] (0707-1008)G) |
| 88648-52250 | Wire, Air Conditioner No.1 | Air Purifier Or Ion Generator ([07.2007 - 08.2010] (0707-1008)G) |
| 88688-52310 | Bracket, Air Purifier, No.1 | Air Purifier Or Ion Generator ([07.2007 - 08.2010] (0707-1008)G) |
| 88688-52320 | Bracket, Air Purifier, No.2 | Air Purifier Or Ion Generator ([07.2007 - 08.2010] (0707-1008)G) |
| 88688-52330 | Bracket, Air Purifier, No.2 | Air Purifier Or Ion Generator ([07.2007 - 08.2010] (0707-1008)G) |
| 93568-55014 | Screw | Air Purifier Or Ion Generator ([07.2007 - 08.2010] (0707-1008)G) |
