Search › Model › NCP11
NCP11

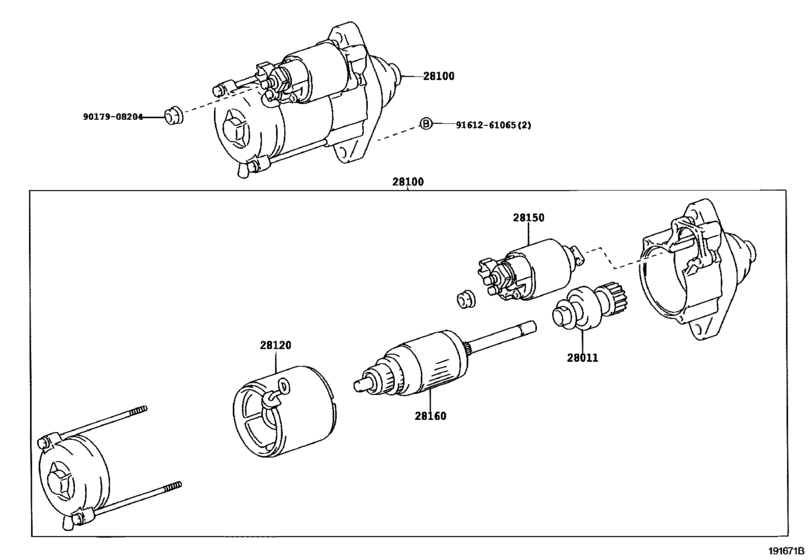

Starter ([08.2002 - ] 12V 0.8KW (0208- )) 10
| # | OEM | Part name |
|---|---|---|
| 28011 | 28011-70020 | Clutch Sub-Assy, Starter |
| 28100 | 28100-21020 | Starter Assy |
| 28100 | 28100-21022 | Starter Assy |
| 28120 | 28120-70020 | Yoke Assy, Starter |
| 28150 | 28150-16160 | Switch Assy, Magnet Starter |
| 28160 | 28160-70021 | Armature Assy, Starter |
| 9017908204 | 90179-08204 | Nut |
| 9017908204 | 90080-18070 | NUT, WWASHER |
| 9161261065 | 91612-61065 | Bolt(For Transaxle & Engine Setting) |
| 9161261065 | 90119-A0104 | Bolt with Washer |
| OEM | Part name | Category |
|---|---|---|
| 28011-70020 | Clutch Sub-Assy, Starter | Starter ([08.2002 - ] 12V 0.8KW (0208- )) |
| 28100-21020 | Starter Assy | Starter ([08.2002 - ] 12V 0.8KW (0208- )) |
| 28100-21022 | Starter Assy | Starter ([08.2002 - ] 12V 0.8KW (0208- )) |
| 28120-70020 | Yoke Assy, Starter | Starter ([08.2002 - ] 12V 0.8KW (0208- )) |
| 28150-16160 | Switch Assy, Magnet Starter | Starter ([08.2002 - ] 12V 0.8KW (0208- )) |
| 28160-70021 | Armature Assy, Starter | Starter ([08.2002 - ] 12V 0.8KW (0208- )) |
| 90080-18070 | NUT, WWASHER | Starter ([08.2002 - ] 12V 0.8KW (0208- )) |
| 90119-A0104 | Bolt with Washer | Starter ([08.2002 - ] 12V 0.8KW (0208- )) |
| 90179-08204 | Nut | Starter ([08.2002 - ] 12V 0.8KW (0208- )) |
| 91612-61065 | Bolt(For Transaxle & Engine Setting) | Starter ([08.2002 - ] 12V 0.8KW (0208- )) |
