Search › Model › NCP11

NCP11

Toyota YARIS-ECHO-VIOS-LIMO · 1999 · 4,761 parts · 205 categories

4,761 items

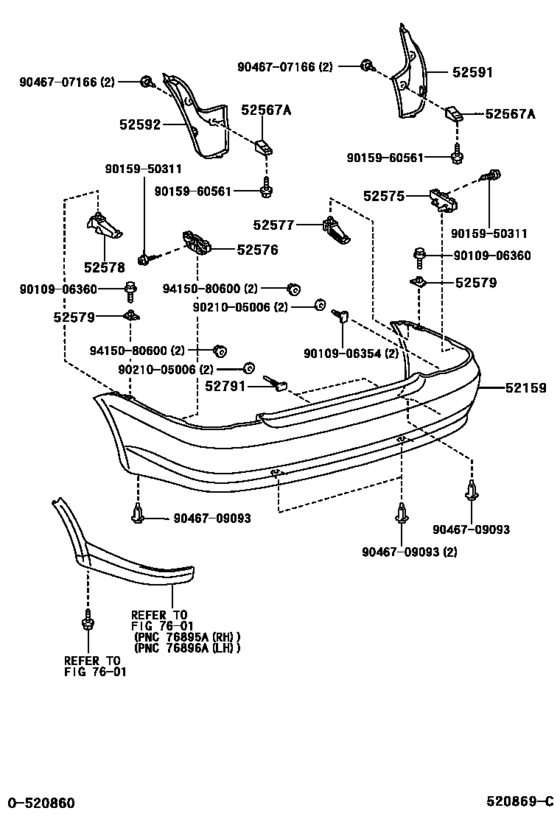

Rear Bumper & Bumper Stay ([08.2002 - ] (0208- )) 28

#	OEM	Part name
52159	52159-52090	Cover, Rear Bumper
52159	52159-52975	Cover, Rear Bumper
52159	52159-52200	Cover, Rear Bumper
52159	52159-52976	Cover, Rear Bumper
52159	52159-52340	Cover, Rear Bumper
52159	52159-52380	Cover, Rear Bumper
52567	52567-52010	Retainer, Rear Bumper, Lower Side
52567	52567-52020	Retainer, Rear Bumper, Lower Side
52575	52575-52070	Retainer, Rear Bumper Side, Rh
52575	52575-52071	Retainer, Rear Bumper Side, Rh
52577	52577-52010	Retainer, Rear Bumper Side, No.2 Rh
52578	52578-52010	Retainer, Rear Bumper Side, No.2 Lh
52579	52579-52010	Retainer, Rear Bumper Side, No.3
52591	52591-52040	Seal, Rear Bumper Side, Rh
52591	52591-52100	Seal, Rear Bumper Side, Rh
52592	52592-52040	Seal, Rear Bumper Side, Lh
52592	52592-52090	Seal, Rear Bumper Side, Lh
52791	52791-12010	Bolt, Bumper Moulding Set, No.1
52791	90109-06354	Bolt, Bumper Moulding Set, No.1
52791	52791-12040	Bolt, Bumper Moulding Set, No.1
9010906360	90109-06360	BOLT
9015950311	90159-50311	SCREW
9015950311	90159-A0034	SCREW WWASHER
9015960561	90159-60561	SCREW WWASHER
9021005006	90210-05006	WASHER SEAL
9046707166	90467-07166	Clip(For Front Fender Apron Seal)
9046709093	90467-09093	Piece, Rear Bumper
9415080600	94150-80600	NUT FLANGE

OEM	Part name	Category
52159-52090	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([08.2002 - ] (0208- ))
52159-52200	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([08.2002 - ] (0208- ))
52159-52340	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([08.2002 - ] (0208- ))
52159-52380	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([08.2002 - ] (0208- ))
52159-52975	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([08.2002 - ] (0208- ))
52159-52976	Cover, Rear Bumper	Rear Bumper & Bumper Stay ([08.2002 - ] (0208- ))
52567-52010	Retainer, Rear Bumper, Lower Side	Rear Bumper & Bumper Stay ([08.2002 - ] (0208- ))
52567-52020	Retainer, Rear Bumper, Lower Side	Rear Bumper & Bumper Stay ([08.2002 - ] (0208- ))
52575-52070	Retainer, Rear Bumper Side, Rh	Rear Bumper & Bumper Stay ([08.2002 - ] (0208- ))
52575-52071	Retainer, Rear Bumper Side, Rh	Rear Bumper & Bumper Stay ([08.2002 - ] (0208- ))
52577-52010	Retainer, Rear Bumper Side, No.2 Rh	Rear Bumper & Bumper Stay ([08.2002 - ] (0208- ))
52578-52010	Retainer, Rear Bumper Side, No.2 Lh	Rear Bumper & Bumper Stay ([08.2002 - ] (0208- ))
52579-52010	Retainer, Rear Bumper Side, No.3	Rear Bumper & Bumper Stay ([08.2002 - ] (0208- ))
52591-52040	Seal, Rear Bumper Side, Rh	Rear Bumper & Bumper Stay ([08.2002 - ] (0208- ))
52591-52100	Seal, Rear Bumper Side, Rh	Rear Bumper & Bumper Stay ([08.2002 - ] (0208- ))
52592-52040	Seal, Rear Bumper Side, Lh	Rear Bumper & Bumper Stay ([08.2002 - ] (0208- ))
52592-52090	Seal, Rear Bumper Side, Lh	Rear Bumper & Bumper Stay ([08.2002 - ] (0208- ))
52791-12010	Bolt, Bumper Moulding Set, No.1	Rear Bumper & Bumper Stay ([08.2002 - ] (0208- ))
52791-12040	Bolt, Bumper Moulding Set, No.1	Rear Bumper & Bumper Stay ([08.2002 - ] (0208- ))
90109-06354	Bolt, Bumper Moulding Set, No.1	Rear Bumper & Bumper Stay ([08.2002 - ] (0208- ))
90109-06360	BOLT	Rear Bumper & Bumper Stay ([08.2002 - ] (0208- ))
90159-50311	SCREW	Rear Bumper & Bumper Stay ([08.2002 - ] (0208- ))
90159-60561	SCREW WWASHER	Rear Bumper & Bumper Stay ([08.2002 - ] (0208- ))
90159-A0034	SCREW WWASHER	Rear Bumper & Bumper Stay ([08.2002 - ] (0208- ))
90210-05006	WASHER SEAL	Rear Bumper & Bumper Stay ([08.2002 - ] (0208- ))
90467-07166	Clip(For Front Fender Apron Seal)	Rear Bumper & Bumper Stay ([08.2002 - ] (0208- ))
90467-09093	Piece, Rear Bumper	Rear Bumper & Bumper Stay ([08.2002 - ] (0208- ))
94150-80600	NUT FLANGE	Rear Bumper & Bumper Stay ([08.2002 - ] (0208- ))
