NCP11

Toyota YARIS-ECHO-VIOS-LIMO · 1999 · 4,761 parts · 205 categories

4,761 items

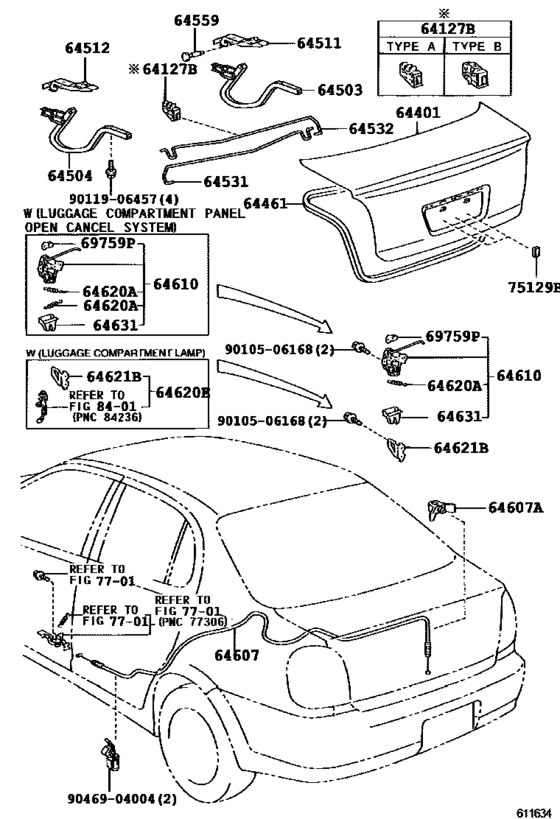

Luggage Compartment Door & Lock ([08.2002 - ] (0208- )) 39

#	OEM	Part name
64127	64127-16070	Support, Luggage Compartment Door Torsion Bar
64127	64127-20120	Support, Luggage Compartment Door Torsion Bar
64401	64401-52010	Panel Sub-Assy, Luggage Compartment Door
64401	64401-52020	Panel Sub-Assy, Luggage Compartment Door
64401	64401-52040	Panel Sub-Assy, Luggage Compartment Door
64401	64401-52041	Panel Sub-Assy, Luggage Compartment Door
64401	64401-52050	Panel Sub-Assy, Luggage Compartment Door
64401	64401-52051	Panel Sub-Assy, Luggage Compartment Door
64461	64461-52010	Weatherstrip, Luggage Compartment Door
64503	64503-16040	Arm Sub-Assy, Luggage Compartment Door Hinge, Rh
64511	64511-52010	Support, Luggage Compartment Door Hinge, Rh
64531	64531-52010	Bar, Luggage Door Hinge Torsion, Rh
64531	64531-52020	Bar, Luggage Door Hinge Torsion, Rh
64531	64531-52030	Bar, Luggage Door Hinge Torsion, Rh
64531	64531-52040	Bar, Luggage Door Hinge Torsion, Rh
64532	64532-52010	Bar, Luggage Door Hinge Torsion, Lh
64532	64532-52020	Bar, Luggage Door Hinge Torsion, Lh
64532	64532-52030	Bar, Luggage Door Hinge Torsion, Lh
64532	64532-52040	Bar, Luggage Door Hinge Torsion, Lh
64559	64559-52010	Pin, Luggage Door Hinge
64607	64607-52020	Cable Sub-Assy, Luggage Door Lock Control
64607	90959-01369	Clamp, Hood Lock Control Cable
64610	64610-52010	Lock Assy, Luggage Compartment Door
64610	64610-52020	Lock Assy, Luggage Compartment Door
64610	64610-52050	Lock Assy, Luggage Compartment Door
64610	64610-52080	Lock Assy, Luggage Compartment Door
64620	90506-05002	Spring, Tension(For Lock)
64620	90506-06008	Spring, Tension(For Luggage Compartment Door Lock)
64620	90905-06021	Spring, Tension(For Lock)
64620	64620-47010	Striker Assy, Luggage Compartment Door
64621	64621-16020	Striker, Luggage Compartment Door Lock
64631	64631-12050	Protector, Luggage Door Lock
64631	64631-16020	Protector, Luggage Door Lock
69759	69759-20040	Snap, Auxiliary Catch Release Lever Control Link
69759	69759-20050	Snap(For Rear Door Lock)
75129	75129-13020	Cushion, Rr Licence Plate
9010506168	90105-06168	BOLT WASHER BASED
9011906457	90119-06457	New Genuine Part
9046904004	90469-04004	Clamp (For Fuel Lid Lock Control Cable)

OEM	Part name	Category
64127-16070	Support, Luggage Compartment Door Torsion Bar	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
64127-20120	Support, Luggage Compartment Door Torsion Bar	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
64401-52010	Panel Sub-Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
64401-52020	Panel Sub-Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
64401-52040	Panel Sub-Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
64401-52041	Panel Sub-Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
64401-52050	Panel Sub-Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
64401-52051	Panel Sub-Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
64461-52010	Weatherstrip, Luggage Compartment Door	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
64503-16040	Arm Sub-Assy, Luggage Compartment Door Hinge, Rh	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
64511-52010	Support, Luggage Compartment Door Hinge, Rh	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
64531-52010	Bar, Luggage Door Hinge Torsion, Rh	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
64531-52020	Bar, Luggage Door Hinge Torsion, Rh	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
64531-52030	Bar, Luggage Door Hinge Torsion, Rh	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
64531-52040	Bar, Luggage Door Hinge Torsion, Rh	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
64532-52010	Bar, Luggage Door Hinge Torsion, Lh	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
64532-52020	Bar, Luggage Door Hinge Torsion, Lh	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
64532-52030	Bar, Luggage Door Hinge Torsion, Lh	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
64532-52040	Bar, Luggage Door Hinge Torsion, Lh	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
64559-52010	Pin, Luggage Door Hinge	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
64607-52020	Cable Sub-Assy, Luggage Door Lock Control	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
64610-52010	Lock Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
64610-52020	Lock Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
64610-52050	Lock Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
64610-52080	Lock Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
64620-47010	Striker Assy, Luggage Compartment Door	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
64621-16020	Striker, Luggage Compartment Door Lock	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
64631-12050	Protector, Luggage Door Lock	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
64631-16020	Protector, Luggage Door Lock	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
69759-20040	Snap, Auxiliary Catch Release Lever Control Link	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
69759-20050	Snap(For Rear Door Lock)	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
75129-13020	Cushion, Rr Licence Plate	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
90105-06168	BOLT WASHER BASED	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
90119-06457	New Genuine Part	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
90469-04004	Clamp (For Fuel Lid Lock Control Cable)	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
90506-05002	Spring, Tension(For Lock)	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
90506-06008	Spring, Tension(For Luggage Compartment Door Lock)	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
90905-06021	Spring, Tension(For Lock)	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))
90959-01369	Clamp, Hood Lock Control Cable	Luggage Compartment Door & Lock ([08.2002 - ] (0208- ))

Source: Public OEM parts-catalog data
Variants: 2 / 6
Category: 205
Collected: 2026-08-04
