Search › Model › NCP11

NCP11

Toyota YARIS-ECHO-VIOS-LIMO · 1999 · 4,761 parts · 205 categories

← Back to categories

4,761 items

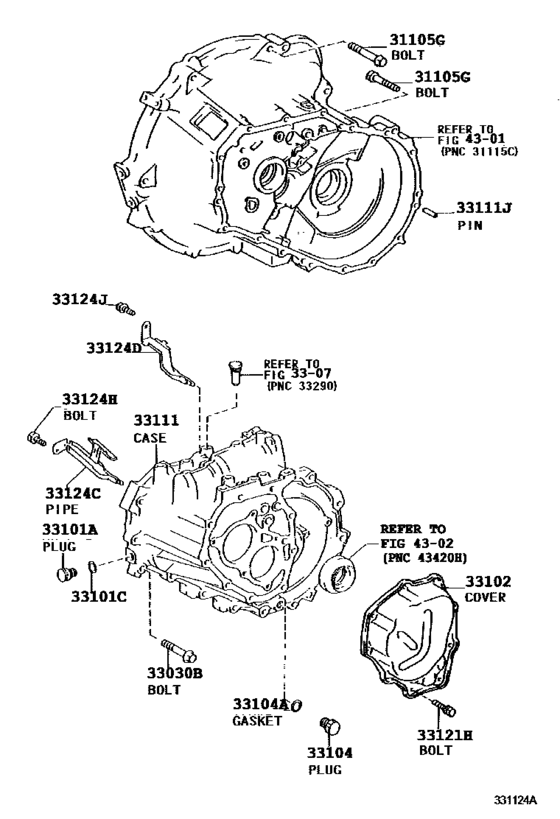

Clutch Housing & Transmission Case (Mtm) ([08.1999 - ] C150,C154 (9908- )MTM) 16

#	OEM	Part name
31105	91612-61050	Bolt(For Transaxle & Engine Setting)
33030	90105-08086	Bolt(For Transaxle Case & Transmission Case Setting)
33030	90105-08430	Bolt(For Transaxle Case & Transmission Case Setting)
33101	90341-18006	Plug (No magnet)
33101	90341-18033	Plug(For Manual Transmission Filler)
33101	90430-18008	Gasket
33101	90430-T0021	Gasket(For Manual Transmission Filler Plug)
33102	33102-10023	Cover Sub-Assy, Manual Transmission Case
33111	33111-16053	Case, Manual Transmission
33111	90250-08054	Pin, Straight
33121	90119-08373	Bolt, W/washer(For Transmission Case Cover)
33121	90119-08A34	Bolt, W/washer(For Transmission Case Cover)
33124	33124-10012	Pipe, Oil Receiver, No.1(Mtm)
33124	33124-10021	Pipe, Oil Receiver, No.2(Mtm)
33124	91611-60820	Bolt(For Transaxle & Engine Setting)
33124	91611-G0820	Bolt

OEM	Part name	Category
33102-10023	Cover Sub-Assy, Manual Transmission Case	Clutch Housing & Transmission Case (Mtm) ([08.1999 - ] C150,C154 (9908- )MTM)
33111-16053	Case, Manual Transmission	Clutch Housing & Transmission Case (Mtm) ([08.1999 - ] C150,C154 (9908- )MTM)
33124-10012	Pipe, Oil Receiver, No.1(Mtm)	Clutch Housing & Transmission Case (Mtm) ([08.1999 - ] C150,C154 (9908- )MTM)
33124-10021	Pipe, Oil Receiver, No.2(Mtm)	Clutch Housing & Transmission Case (Mtm) ([08.1999 - ] C150,C154 (9908- )MTM)
90105-08086	Bolt(For Transaxle Case & Transmission Case Setting)	Clutch Housing & Transmission Case (Mtm) ([08.1999 - ] C150,C154 (9908- )MTM)
90105-08430	Bolt(For Transaxle Case & Transmission Case Setting)	Clutch Housing & Transmission Case (Mtm) ([08.1999 - ] C150,C154 (9908- )MTM)
90119-08373	Bolt, W/washer(For Transmission Case Cover)	Clutch Housing & Transmission Case (Mtm) ([08.1999 - ] C150,C154 (9908- )MTM)
90119-08A34	Bolt, W/washer(For Transmission Case Cover)	Clutch Housing & Transmission Case (Mtm) ([08.1999 - ] C150,C154 (9908- )MTM)
90250-08054	Pin, Straight	Clutch Housing & Transmission Case (Mtm) ([08.1999 - ] C150,C154 (9908- )MTM)
90341-18006	Plug (No magnet)	Clutch Housing & Transmission Case (Mtm) ([08.1999 - ] C150,C154 (9908- )MTM)
90341-18033	Plug(For Manual Transmission Filler)	Clutch Housing & Transmission Case (Mtm) ([08.1999 - ] C150,C154 (9908- )MTM)
90430-18008	Gasket	Clutch Housing & Transmission Case (Mtm) ([08.1999 - ] C150,C154 (9908- )MTM)
90430-T0021	Gasket(For Manual Transmission Filler Plug)	Clutch Housing & Transmission Case (Mtm) ([08.1999 - ] C150,C154 (9908- )MTM)
91611-60820	Bolt(For Transaxle & Engine Setting)	Clutch Housing & Transmission Case (Mtm) ([08.1999 - ] C150,C154 (9908- )MTM)
91611-G0820	Bolt	Clutch Housing & Transmission Case (Mtm) ([08.1999 - ] C150,C154 (9908- )MTM)
91612-61050	Bolt(For Transaxle & Engine Setting)	Clutch Housing & Transmission Case (Mtm) ([08.1999 - ] C150,C154 (9908- )MTM)
