NCP105

Toyota RACTIS · 2005 · 4,060 parts · 199 categories

4,060 items

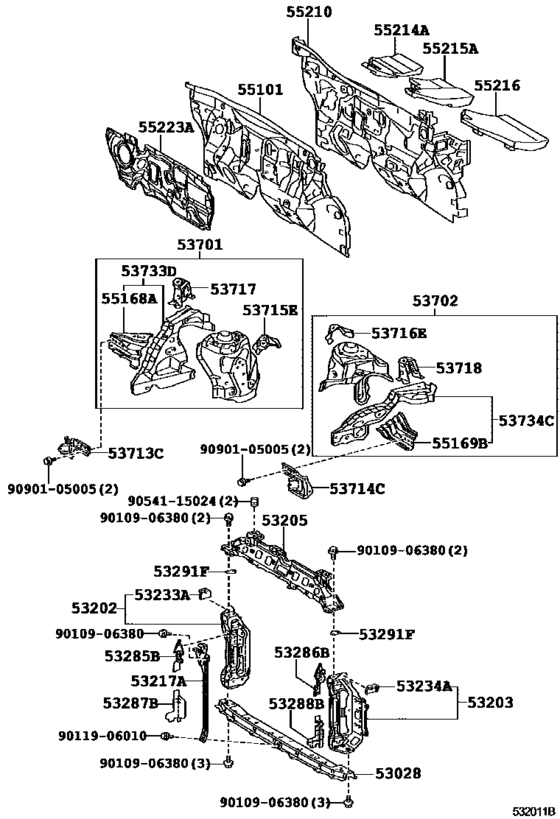

Front Fender Apron & Dash Panel ([09.2005 - ] (0509- )) 36

#	OEM	Part name
53028	53028-52070	Support Sub-Assy, Radiator, Lower
53202	53202-52901	Support Sub-Assy, Radiator, Rh
53203	53203-52901	Support Sub-Assy, Radiator, Lh
53205	53205-52090	Support Sub-Assy, Radiator, Upper
53217	52085-52010	Brace, Hood Lock Support
53233	53233-52010	Bracket, Headlamp, No.1 Rh
53234	53234-52020	Bracket, Headlamp, No.1 Lh
53285	53285-52220	Seal, Radiator Side Air, No.1
53286	53286-52160	Seal, Radiator Side Air, No.2
53287	53287-52040	Extension, Radiator Support, Rh
53288	53288-52040	Extension, Radiator Support, Lh
53291	53291-52070	Seal, Radiator Support To Frame
53701	53701-52170	Apron Sub-Assy, Front Fender, Rh
53702	53702-52170	Apron Sub-Assy, Front Fender, Lh
53713	53705-52020	Extension, Front Fender Apron, Front Rh
53714	53706-52020	Extension, Front Fender Apron, Front Lh
53715	53715-52030	Extension, Front Fender Apron, Rear Rh
53716	53716-52030	Extension, Front Fender Apron, Rear Lh
53717	53703-52020	Plate, Fender Apron, Rh
53718	53704-52060	Plate, Fender Apron, Lh
53733	53707-52030	Apron Sub-Assy, Fender Side, Rh
53734	53708-52030	Apron Sub-Assy, Fender Side, Lh
55101	55101-52570	Panel Sub-Assy, Dash
55168	55168-52130	Bracket, Front Fender Mounting, Rh
55169	55169-52130	Bracket, Front Fender Mounting, Lh
55210	55210-52190	Insulator Assy, Dash Panel
55214	55214-52150	Pad, Dash Panel Insulator, No.2
55215	55215-52120	Pad, Dash Panel Insulator, No.3
55216	55216-52050	Pad, Dash Panel Insulator, No.4
55223	55223-52080	Insulator, Dash Panel, Outer
55223	55223-52101	Insulator, Dash Panel, Outer
55223	55223-52100	Insulator, Dash Panel, Outer
9010906380	90109-06380	BOLT
9011906010	90119-06010	BOLT WWASHER
9054115024	90541-15024	Cushion, Radiator Support
9090105005	90901-05005	New Genuine Part

OEM	Part name	Category
52085-52010	Brace, Hood Lock Support	Front Fender Apron & Dash Panel ([09.2005 - ] (0509- ))
53028-52070	Support Sub-Assy, Radiator, Lower	Front Fender Apron & Dash Panel ([09.2005 - ] (0509- ))
53202-52901	Support Sub-Assy, Radiator, Rh	Front Fender Apron & Dash Panel ([09.2005 - ] (0509- ))
53203-52901	Support Sub-Assy, Radiator, Lh	Front Fender Apron & Dash Panel ([09.2005 - ] (0509- ))
53205-52090	Support Sub-Assy, Radiator, Upper	Front Fender Apron & Dash Panel ([09.2005 - ] (0509- ))
53233-52010	Bracket, Headlamp, No.1 Rh	Front Fender Apron & Dash Panel ([09.2005 - ] (0509- ))
53234-52020	Bracket, Headlamp, No.1 Lh	Front Fender Apron & Dash Panel ([09.2005 - ] (0509- ))
53285-52220	Seal, Radiator Side Air, No.1	Front Fender Apron & Dash Panel ([09.2005 - ] (0509- ))
53286-52160	Seal, Radiator Side Air, No.2	Front Fender Apron & Dash Panel ([09.2005 - ] (0509- ))
53287-52040	Extension, Radiator Support, Rh	Front Fender Apron & Dash Panel ([09.2005 - ] (0509- ))
53288-52040	Extension, Radiator Support, Lh	Front Fender Apron & Dash Panel ([09.2005 - ] (0509- ))
53291-52070	Seal, Radiator Support To Frame	Front Fender Apron & Dash Panel ([09.2005 - ] (0509- ))
53701-52170	Apron Sub-Assy, Front Fender, Rh	Front Fender Apron & Dash Panel ([09.2005 - ] (0509- ))
53702-52170	Apron Sub-Assy, Front Fender, Lh	Front Fender Apron & Dash Panel ([09.2005 - ] (0509- ))
53703-52020	Plate, Fender Apron, Rh	Front Fender Apron & Dash Panel ([09.2005 - ] (0509- ))
53704-52060	Plate, Fender Apron, Lh	Front Fender Apron & Dash Panel ([09.2005 - ] (0509- ))
53705-52020	Extension, Front Fender Apron, Front Rh	Front Fender Apron & Dash Panel ([09.2005 - ] (0509- ))
53706-52020	Extension, Front Fender Apron, Front Lh	Front Fender Apron & Dash Panel ([09.2005 - ] (0509- ))
53707-52030	Apron Sub-Assy, Fender Side, Rh	Front Fender Apron & Dash Panel ([09.2005 - ] (0509- ))
53708-52030	Apron Sub-Assy, Fender Side, Lh	Front Fender Apron & Dash Panel ([09.2005 - ] (0509- ))
53715-52030	Extension, Front Fender Apron, Rear Rh	Front Fender Apron & Dash Panel ([09.2005 - ] (0509- ))
53716-52030	Extension, Front Fender Apron, Rear Lh	Front Fender Apron & Dash Panel ([09.2005 - ] (0509- ))
55101-52570	Panel Sub-Assy, Dash	Front Fender Apron & Dash Panel ([09.2005 - ] (0509- ))
55168-52130	Bracket, Front Fender Mounting, Rh	Front Fender Apron & Dash Panel ([09.2005 - ] (0509- ))
55169-52130	Bracket, Front Fender Mounting, Lh	Front Fender Apron & Dash Panel ([09.2005 - ] (0509- ))
55210-52190	Insulator Assy, Dash Panel	Front Fender Apron & Dash Panel ([09.2005 - ] (0509- ))
55214-52150	Pad, Dash Panel Insulator, No.2	Front Fender Apron & Dash Panel ([09.2005 - ] (0509- ))
55215-52120	Pad, Dash Panel Insulator, No.3	Front Fender Apron & Dash Panel ([09.2005 - ] (0509- ))
55216-52050	Pad, Dash Panel Insulator, No.4	Front Fender Apron & Dash Panel ([09.2005 - ] (0509- ))
55223-52080	Insulator, Dash Panel, Outer	Front Fender Apron & Dash Panel ([09.2005 - ] (0509- ))
55223-52100	Insulator, Dash Panel, Outer	Front Fender Apron & Dash Panel ([09.2005 - ] (0509- ))
55223-52101	Insulator, Dash Panel, Outer	Front Fender Apron & Dash Panel ([09.2005 - ] (0509- ))
90109-06380	BOLT	Front Fender Apron & Dash Panel ([09.2005 - ] (0509- ))
90119-06010	BOLT WWASHER	Front Fender Apron & Dash Panel ([09.2005 - ] (0509- ))
90541-15024	Cushion, Radiator Support	Front Fender Apron & Dash Panel ([09.2005 - ] (0509- ))
90901-05005	New Genuine Part	Front Fender Apron & Dash Panel ([09.2005 - ] (0509- ))
