NA8W

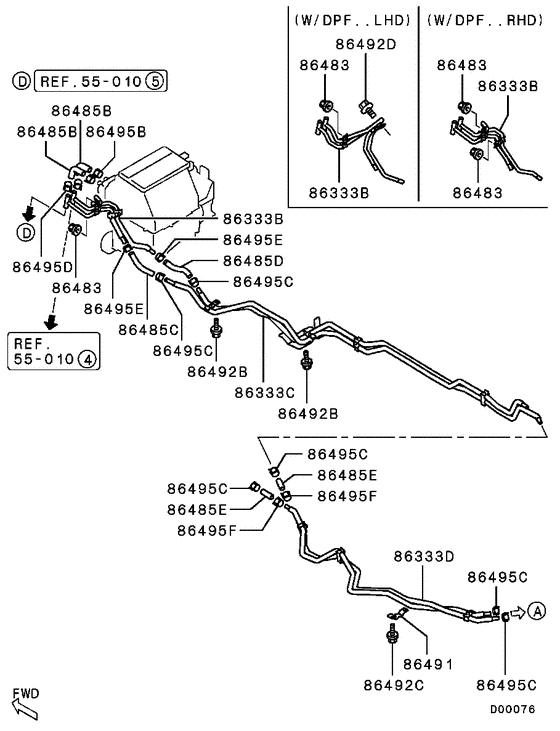

Rear heater unit & piping (PIPING) 12
| # | OEM | Part name |
|---|---|---|
| 86483 | MS440503 | NUT - Washer assembled,8 |
| 86485 | MN179916 | HOSE, RR HEATER PIPING |
| 86485 | MN179918 | HOSE, RR HEATER PIPING |
| 86485 | MN179917 | HOSE, RR HEATER PIPING |
| 86485 | MN179914 | HOSE, RR HEATER PIPING |
| 86491 | MN134270 | BRACKET, RR HEATER PIPING |
| 86491 | MN173772 | BRACKET, RR HEATER PIPING |
| 86492 | MU000369 | BOLT, SPARE TIRE CARRIER - 8x21 |
| 86492 | MF140007 | BOLT, FUEL LINE - Flange,6x20 |
| 86492 | MF140023 | BOLT, ACCEL CABLE SUPPORT - Flange,8x16 |
| 86495 | MU470040 | CLAMP, HEATER PIPING - 21.7 |
| 86495 | MU660005 | CLAMP, HEATER PIPING - 17.8 |
| OEM | Part name | Category |
|---|---|---|
| MF140007 | BOLT, FUEL LINE - Flange,6x20 | Rear heater unit & piping (PIPING) |
| MF140023 | BOLT, ACCEL CABLE SUPPORT - Flange,8x16 | Rear heater unit & piping (PIPING) |
| MN134270 | BRACKET, RR HEATER PIPING | Rear heater unit & piping (PIPING) |
| MN173772 | BRACKET, RR HEATER PIPING | Rear heater unit & piping (PIPING) |
| MN179914 | HOSE, RR HEATER PIPING | Rear heater unit & piping (PIPING) |
| MN179916 | HOSE, RR HEATER PIPING | Rear heater unit & piping (PIPING) |
| MN179917 | HOSE, RR HEATER PIPING | Rear heater unit & piping (PIPING) |
| MN179918 | HOSE, RR HEATER PIPING | Rear heater unit & piping (PIPING) |
| MS440503 | NUT - Washer assembled,8 | Rear heater unit & piping (PIPING) |
| MU000369 | BOLT, SPARE TIRE CARRIER - 8x21 | Rear heater unit & piping (PIPING) |
| MU470040 | CLAMP, HEATER PIPING - 21.7 | Rear heater unit & piping (PIPING) |
| MU660005 | CLAMP, HEATER PIPING - 17.8 | Rear heater unit & piping (PIPING) |
