Search › Model › NA8W
NA8W

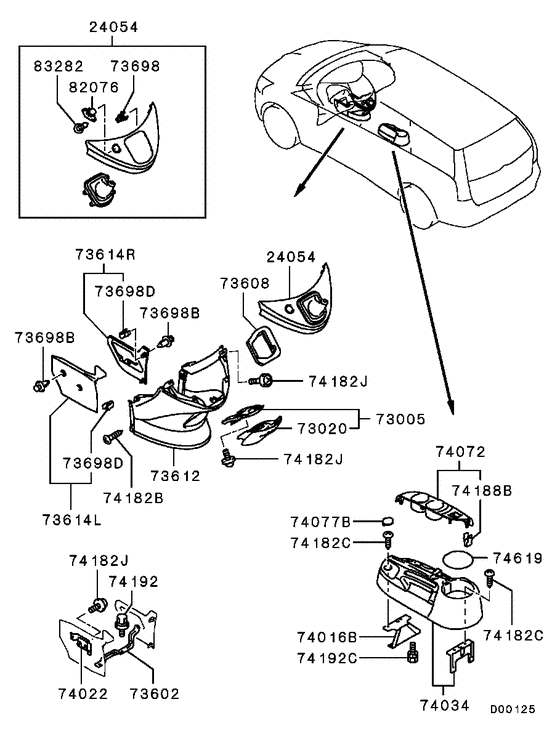

Console (LHD) 12
| # | OEM | Part name |
|---|---|---|
| 73602 | MR962230 | BRACKET, INSTRUMENT PANEL CONSOLE |
| 73698 | MR402859 | CLIP, FLOOR CONSOLE |
| 73698 | MR647319 | CLIP, SCUFF PLATE |
| 74016 | MN151927 | BRACKET,FLOOR CONSOLE |
| 74022 | MN151921 | BRACKET,FLOOR CONSOLE,FR |
| 74182 | MF453033 | SCREW, TAPPING, 5x16 - Tapping,5x16 |
| 74182 | MB409437 | SCREW, STEERING COLUMN COVER - Tapping,5x12 |
| 74192 | MS240121 | BOLT, CONNROD - Washer assembled,6x16 |
| 74192 | MF240050 | BOLT, ROCKER COVER - Washer assembled,8x14 |
| 74192 | MF240650 | BOLT, P/S OIL PUMP - Washer assembled,8x14 |
| 82076 | MR962274 | SWITCH, HAZARD WARNING LAMP |
| 83282 | MF456457 | SCREW, FR DOOR ARMREST - Tapping,4x12 |
| OEM | Part name | Category |
|---|---|---|
| MB409437 | SCREW, STEERING COLUMN COVER - Tapping,5x12 | Console (LHD) |
| MF240050 | BOLT, ROCKER COVER - Washer assembled,8x14 | Console (LHD) |
| MF240650 | BOLT, P/S OIL PUMP - Washer assembled,8x14 | Console (LHD) |
| MF453033 | SCREW, TAPPING, 5x16 - Tapping,5x16 | Console (LHD) |
| MF456457 | SCREW, FR DOOR ARMREST - Tapping,4x12 | Console (LHD) |
| MN151921 | BRACKET,FLOOR CONSOLE,FR | Console (LHD) |
| MN151927 | BRACKET,FLOOR CONSOLE | Console (LHD) |
| MR402859 | CLIP, FLOOR CONSOLE | Console (LHD) |
| MR647319 | CLIP, SCUFF PLATE | Console (LHD) |
| MR962230 | BRACKET, INSTRUMENT PANEL CONSOLE | Console (LHD) |
| MR962274 | SWITCH, HAZARD WARNING LAMP | Console (LHD) |
| MS240121 | BOLT, CONNROD - Washer assembled,6x16 | Console (LHD) |
