NA8W

Mitsubishi GRANDIS · 2005 · 1,821 parts · 238 categories

← Back to categories

1,821 items

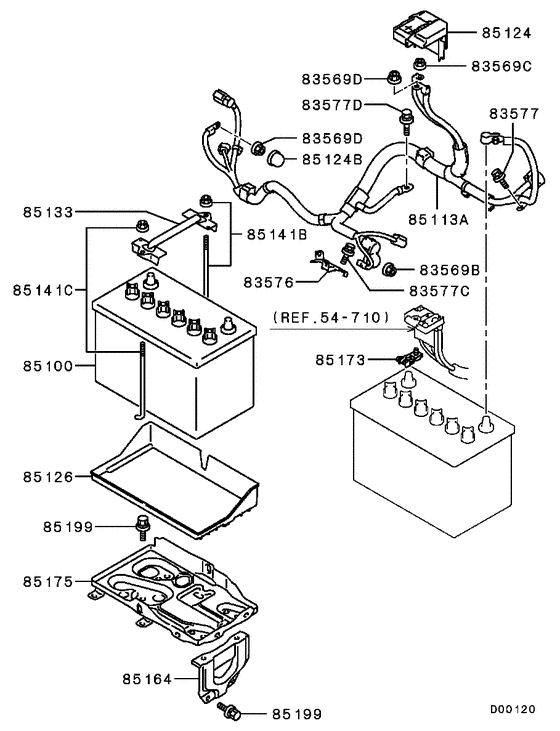

Battery cable & bracket (ALL) 14

#	OEM	Part name
83569	MS440503	NUT - Washer assembled,8
83569	MS440502	NUT, FUEL TANK - Washer assembled,6
83577	MB249413	BOLT, FUEL LINE - Washer assembled (earth),6x16
83577	MB330946	BOLT, FUEL LINE - Washer assembled,6x20
83577	MF244822	BOLT, ACCEL CABLE SUPPORT - Washer assembled,6x12
83577	MS240125	BOLT, FUEL TANK - Washer assembled,8x20
85124	MN108945	COVER, FUSIBLE LINK BOX
85126	MN188378	COVER,BATTERY
85133	MR238277	HOLDER, BATTERY - 175
85141	MR952759	L-BOLT KIT, BATTERY - 6x187
85164	MN161000	STAY, BATTERY TRAY
85173	MK412119	TERMINAL, BATTERY
85173	MU001364	TERMINAL, BATTERY - Nut position rh
85199	MF140023	BOLT, ACCEL CABLE SUPPORT - Flange,8x16

OEM	Part name	Category
MB249413	BOLT, FUEL LINE - Washer assembled (earth),6x16	Battery cable & bracket (ALL)
MB330946	BOLT, FUEL LINE - Washer assembled,6x20	Battery cable & bracket (ALL)
MF140023	BOLT, ACCEL CABLE SUPPORT - Flange,8x16	Battery cable & bracket (ALL)
MF244822	BOLT, ACCEL CABLE SUPPORT - Washer assembled,6x12	Battery cable & bracket (ALL)
MK412119	TERMINAL, BATTERY	Battery cable & bracket (ALL)
MN108945	COVER, FUSIBLE LINK BOX	Battery cable & bracket (ALL)
MN161000	STAY, BATTERY TRAY	Battery cable & bracket (ALL)
MN188378	COVER,BATTERY	Battery cable & bracket (ALL)
MR238277	HOLDER, BATTERY - 175	Battery cable & bracket (ALL)
MR952759	L-BOLT KIT, BATTERY - 6x187	Battery cable & bracket (ALL)
MS240125	BOLT, FUEL TANK - Washer assembled,8x20	Battery cable & bracket (ALL)
MS440502	NUT, FUEL TANK - Washer assembled,6	Battery cable & bracket (ALL)
MS440503	NUT - Washer assembled,8	Battery cable & bracket (ALL)
MU001364	TERMINAL, BATTERY - Nut position rh	Battery cable & bracket (ALL)

Source: Public OEM parts-catalog data
Variants: 2 / 6
Category: 238
Collected: 2026-07-25
