NA4W

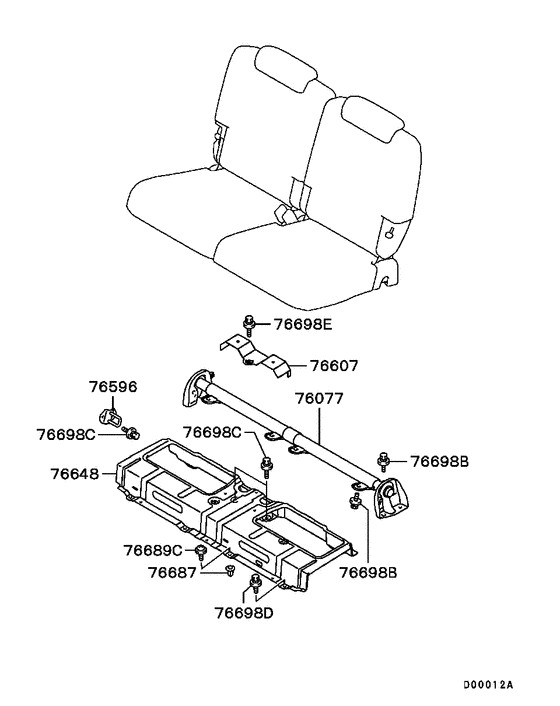

Third seat (INSTALLING PARTS) 10
| # | OEM | Part name |
|---|---|---|
| 76077 | MR966095 | SHAFT, RR SEAT SUPPORT |
| 76596 | MR966093 | STRIKER, 3RD SEAT |
| 76607 | MN157841 | DAMPER, 3RD SEAT MOUNTING |
| 76648 | MR966094 | BRACKET, 3RD SEAT |
| 76687 | MU480035 | GROMMET, ABS CONTROL EQUIP - Screw,6 |
| 76689 | MS452353 | SCREW, P/S OIL PUMP - 6x16 |
| 76698 | MS240188 | BOLT, FR BUMPER - Washer assembled,10x30 |
| 76698 | MS240615 | BOLT, FR SEAT - Washer assembled,8x20 |
| 76698 | MS240142 | BOLT, FUEL TANK - Washer assembled,6x20 |
| 76698 | MS240602 | BOLT, FR BUMPER - Washer assembled,6x20 |
| OEM | Part name | Category |
|---|---|---|
| MN157841 | DAMPER, 3RD SEAT MOUNTING | Third seat (INSTALLING PARTS) |
| MR966093 | STRIKER, 3RD SEAT | Third seat (INSTALLING PARTS) |
| MR966094 | BRACKET, 3RD SEAT | Third seat (INSTALLING PARTS) |
| MR966095 | SHAFT, RR SEAT SUPPORT | Third seat (INSTALLING PARTS) |
| MS240142 | BOLT, FUEL TANK - Washer assembled,6x20 | Third seat (INSTALLING PARTS) |
| MS240188 | BOLT, FR BUMPER - Washer assembled,10x30 | Third seat (INSTALLING PARTS) |
| MS240602 | BOLT, FR BUMPER - Washer assembled,6x20 | Third seat (INSTALLING PARTS) |
| MS240615 | BOLT, FR SEAT - Washer assembled,8x20 | Third seat (INSTALLING PARTS) |
| MS452353 | SCREW, P/S OIL PUMP - 6x16 | Third seat (INSTALLING PARTS) |
| MU480035 | GROMMET, ABS CONTROL EQUIP - Screw,6 | Third seat (INSTALLING PARTS) |
