Search › Model › NA4W
NA4W

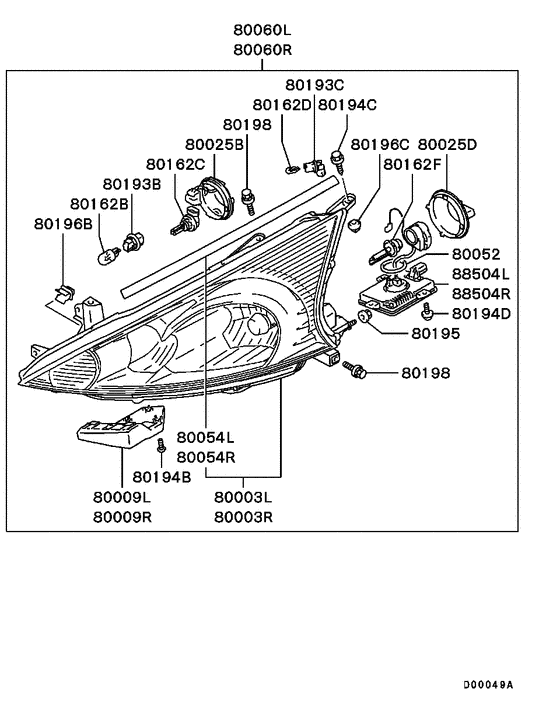

Headlamp (DISCHARGE) 22
| # | OEM | Part name |
|---|---|---|
| 80009 | MN129509 | BRACKET, HEADLAMP |
| 80009 | MN129510 | BRACKET, HEADLAMP |
| 80025 | MN182318 | COVER, HEADLAMP BULB SOCKET |
| 80025 | MN182320 | COVER, HEADLAMP BULB SOCKET |
| 80052 | MR971983 | GASKET, HEADLAMP |
| 80054 | MN182401 | SEAL, HEADLAMP, LH |
| 80054 | MN182402 | SEAL, HEADLAMP, RH |
| 80162 | MS820026 | BULB, TAIL LAMP - 12v-21w |
| 80162 | MS820977 | BULB, HEADLAMP - 12v-65w,halogen,h9 |
| 80162 | MS820090 | BULB (12V, 5W) - 12v-5w |
| 80162 | MU000582 | BULB, HEADLAMP - 85v-35w,d2r |
| 80193 | MU000229 | SOCKET, HEADLAMP |
| 80193 | MU000694 | SOCKET, HEADLAMP |
| 80194 | MS450927 | SCREW, RR BODY - Tapping,4x16 |
| 80194 | MS450973 | SCREW, RR BUMPER - Washer assembled,6x20 |
| 80194 | MU000716 | SCREW, HEADLAMP - Tapping,6x20 |
| 80194 | MR583998 | SCREW, HEADLAMP |
| 80195 | MS440522 | NUT, FUEL TANK - Washer assembled,6 |
| 80196 | MN167828 | GROMMET, HEADLAMP |
| 80196 | MR393386 | GROMMET, FR BUMPER - 6 |
| 80198 | MS240142 | BOLT, FUEL TANK - Washer assembled,6x20 |
| 88504 | MR991269 | CONTROL UNIT, HEADLAMP |
| OEM | Part name | Category |
|---|---|---|
| MN129509 | BRACKET, HEADLAMP | Headlamp (DISCHARGE) |
| MN129510 | BRACKET, HEADLAMP | Headlamp (DISCHARGE) |
| MN167828 | GROMMET, HEADLAMP | Headlamp (DISCHARGE) |
| MN182318 | COVER, HEADLAMP BULB SOCKET | Headlamp (DISCHARGE) |
| MN182320 | COVER, HEADLAMP BULB SOCKET | Headlamp (DISCHARGE) |
| MN182401 | SEAL, HEADLAMP, LH | Headlamp (DISCHARGE) |
| MN182402 | SEAL, HEADLAMP, RH | Headlamp (DISCHARGE) |
| MR393386 | GROMMET, FR BUMPER - 6 | Headlamp (DISCHARGE) |
| MR583998 | SCREW, HEADLAMP | Headlamp (DISCHARGE) |
| MR971983 | GASKET, HEADLAMP | Headlamp (DISCHARGE) |
| MR991269 | CONTROL UNIT, HEADLAMP | Headlamp (DISCHARGE) |
| MS240142 | BOLT, FUEL TANK - Washer assembled,6x20 | Headlamp (DISCHARGE) |
| MS440522 | NUT, FUEL TANK - Washer assembled,6 | Headlamp (DISCHARGE) |
| MS450927 | SCREW, RR BODY - Tapping,4x16 | Headlamp (DISCHARGE) |
| MS450973 | SCREW, RR BUMPER - Washer assembled,6x20 | Headlamp (DISCHARGE) |
| MS820026 | BULB, TAIL LAMP - 12v-21w | Headlamp (DISCHARGE) |
| MS820090 | BULB (12V, 5W) - 12v-5w | Headlamp (DISCHARGE) |
| MS820977 | BULB, HEADLAMP - 12v-65w,halogen,h9 | Headlamp (DISCHARGE) |
| MU000229 | SOCKET, HEADLAMP | Headlamp (DISCHARGE) |
| MU000582 | BULB, HEADLAMP - 85v-35w,d2r | Headlamp (DISCHARGE) |
| MU000694 | SOCKET, HEADLAMP | Headlamp (DISCHARGE) |
| MU000716 | SCREW, HEADLAMP - Tapping,6x20 | Headlamp (DISCHARGE) |
