NA4W

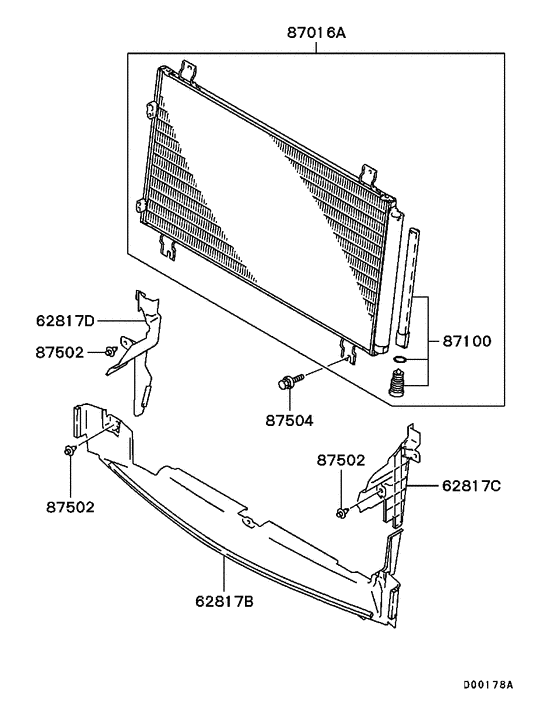

A/c condenser, piping (CONDENSER) 8
| # | OEM | Part name |
|---|---|---|
| 62817 | MR958114 | PANEL, AIR GUIDE |
| 62817 | MN134233 | PANEL, AIR GUIDE |
| 62817 | MN134234 | PANEL, AIR GUIDE |
| 87016 | MR958112 | CONDENSER ASSY, A/C REFRIGERANT |
| 87100 | MN179993 | DRYER & FILTER, A/C CONDENSER |
| 87502 | MB476821 | CLIP, SPLASH SHIELD |
| 87504 | MF247862 | BOLT, ENG SAFETY COVER - Washer assembled,6x12 |
| 87504 | MF248162 | BOLT, ENG AIR INTAKE LINE - Washer assembled,6x12 |
| OEM | Part name | Category |
|---|---|---|
| MB476821 | CLIP, SPLASH SHIELD | A/c condenser, piping (CONDENSER) |
| MF247862 | BOLT, ENG SAFETY COVER - Washer assembled,6x12 | A/c condenser, piping (CONDENSER) |
| MF248162 | BOLT, ENG AIR INTAKE LINE - Washer assembled,6x12 | A/c condenser, piping (CONDENSER) |
| MN134233 | PANEL, AIR GUIDE | A/c condenser, piping (CONDENSER) |
| MN134234 | PANEL, AIR GUIDE | A/c condenser, piping (CONDENSER) |
| MN179993 | DRYER & FILTER, A/C CONDENSER | A/c condenser, piping (CONDENSER) |
| MR958112 | CONDENSER ASSY, A/C REFRIGERANT | A/c condenser, piping (CONDENSER) |
| MR958114 | PANEL, AIR GUIDE | A/c condenser, piping (CONDENSER) |
