NA0

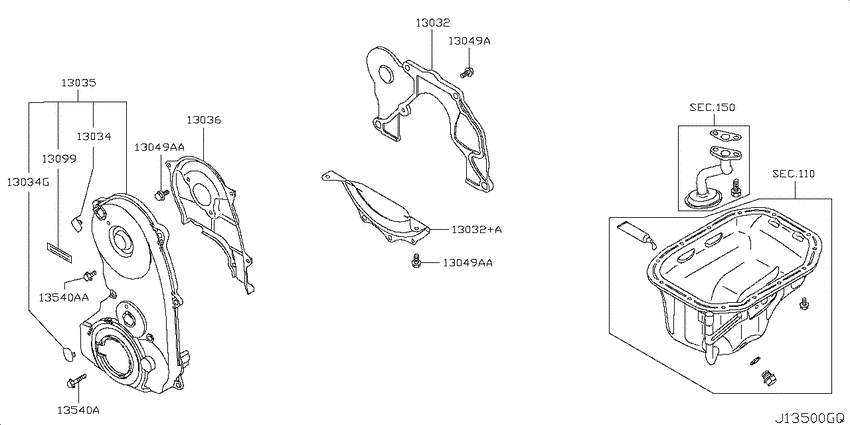

Front cover & fitting (2005-06-01 ~ ; 3G83T; 3G83T) 9
| # | OEM | Part name |
|---|---|---|
| 13032 | 13031-6A0A6 | プレ-ト,フロント |
| 13032 | 13031-6A0A5 | プレ-ト,フロント |
| 13034 | 13034-6A0A0 | Case-Front Cover |
| 13034 | 13036-6A0A0 | Cover-Case |
| 13036 | 13036-6A0A3 | Cover-Front |
| 13049 | 22167-6A0A0 | Bolt |
| 13049 | 01121-6A0H4 | Bolt |
| 13099 | 13099-6A0A0 | Label-Caution Timing |
| 13540 | 13540-6A0A0 | Bolt-Front Cover |
| OEM | Part name | Category |
|---|---|---|
| 01121-6A0H4 | Bolt | Front cover & fitting (2005-06-01 ~ ; 3G83T; 3G83T) |
| 13031-6A0A5 | プレ-ト,フロント | Front cover & fitting (2005-06-01 ~ ; 3G83T; 3G83T) |
| 13031-6A0A6 | プレ-ト,フロント | Front cover & fitting (2005-06-01 ~ ; 3G83T; 3G83T) |
| 13034-6A0A0 | Case-Front Cover | Front cover & fitting (2005-06-01 ~ ; 3G83T; 3G83T) |
| 13036-6A0A0 | Cover-Case | Front cover & fitting (2005-06-01 ~ ; 3G83T; 3G83T) |
| 13036-6A0A3 | Cover-Front | Front cover & fitting (2005-06-01 ~ ; 3G83T; 3G83T) |
| 13099-6A0A0 | Label-Caution Timing | Front cover & fitting (2005-06-01 ~ ; 3G83T; 3G83T) |
| 13540-6A0A0 | Bolt-Front Cover | Front cover & fitting (2005-06-01 ~ ; 3G83T; 3G83T) |
| 22167-6A0A0 | Bolt | Front cover & fitting (2005-06-01 ~ ; 3G83T; 3G83T) |
