NA0

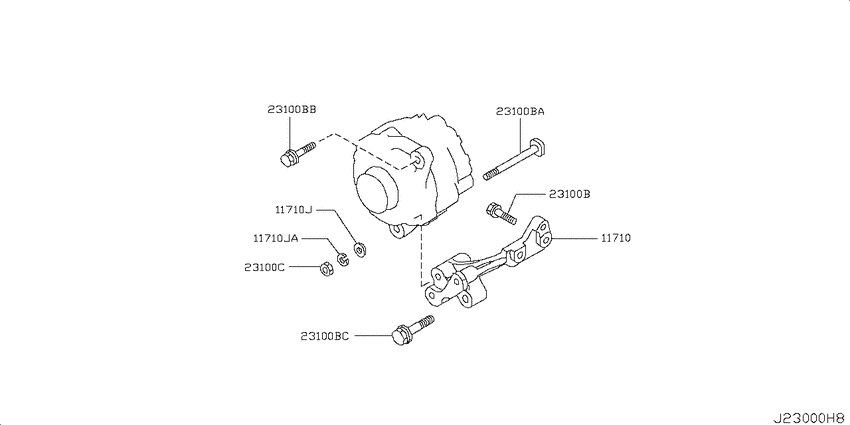

Alternator fitting (2005-06-01 ~ ; 3G83 +3G83T) 7
| # | OEM | Part name |
|---|---|---|
| 11710 | 11710-6A0A0 | ブラケツト,オルタネ-タ- |
| 11710 | 14037-6A0A0 | Washer-Plain |
| 23100 | 01141-6A0A1 | Bolt |
| 23100 | 11716-6A0A5 | Bolt |
| 23100 | 11916-6A0A1 | Bolt-Compressor Bracket |
| 23100 | 11716-6A0A6 | ボルト |
| 23100 | 23299-6A0A2 | Nut |
| OEM | Part name | Category |
|---|---|---|
| 01141-6A0A1 | Bolt | Alternator fitting (2005-06-01 ~ ; 3G83 +3G83T) |
| 11710-6A0A0 | ブラケツト,オルタネ-タ- | Alternator fitting (2005-06-01 ~ ; 3G83 +3G83T) |
| 11716-6A0A5 | Bolt | Alternator fitting (2005-06-01 ~ ; 3G83 +3G83T) |
| 11716-6A0A6 | ボルト | Alternator fitting (2005-06-01 ~ ; 3G83 +3G83T) |
| 11916-6A0A1 | Bolt-Compressor Bracket | Alternator fitting (2005-06-01 ~ ; 3G83 +3G83T) |
| 14037-6A0A0 | Washer-Plain | Alternator fitting (2005-06-01 ~ ; 3G83 +3G83T) |
| 23299-6A0A2 | Nut | Alternator fitting (2005-06-01 ~ ; 3G83 +3G83T) |
