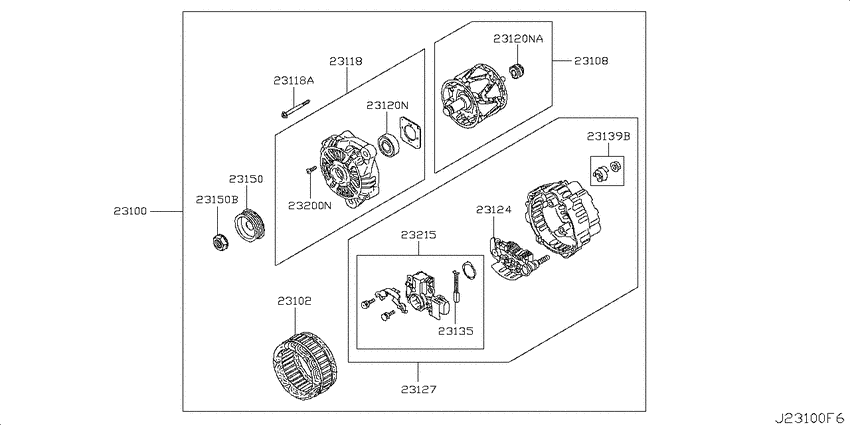

| 01141-6A0A1 |
Bolt |
Alternator (2005-06-01 ~ ; 3G83 +3G83T) |
| 11716-6A0A5 |
Bolt |
Alternator (2005-06-01 ~ ; 3G83 +3G83T) |
| 11716-6A0A6 |
ボルト |
Alternator (2005-06-01 ~ ; 3G83 +3G83T) |
| 11916-6A0A1 |
Bolt-Compressor Bracket |
Alternator (2005-06-01 ~ ; 3G83 +3G83T) |
| 23102-6A0A1 |
Stator Assy |
Alternator (2005-06-01 ~ ; 3G83 +3G83T) |
| 23108-6A0A2 |
Rotor Assy |
Alternator (2005-06-01 ~ ; 3G83 +3G83T) |
| 23113-6A0A2 |
Cover Assy-Front |
Alternator (2005-06-01 ~ ; 3G83 +3G83T) |
| 23115-6A0A0 |
Screw |
Alternator (2005-06-01 ~ ; 3G83 +3G83T) |
| 23120-6A0A2 |
Bearing-Ball |
Alternator (2005-06-01 ~ ; 3G83 +3G83T) |
| 23120-6A0A3 |
Bearing-Ball |
Alternator (2005-06-01 ~ ; 3G83 +3G83T) |
| 23124-6A0A2 |
Rectifier Assy |
Alternator (2005-06-01 ~ ; 3G83 +3G83T) |
| 23127-6A0A0 |
Cover Assy-Rear |
Alternator (2005-06-01 ~ ; 3G83 +3G83T) |
| 23135-6A0A1 |
Brush Assy |
Alternator (2005-06-01 ~ ; 3G83 +3G83T) |
| 23148-6A0A0 |
Screw |
Alternator (2005-06-01 ~ ; 3G83 +3G83T) |
| 23150-6A0A1 |
Pulley Assy |
Alternator (2005-06-01 ~ ; 3G83 +3G83T) |
| 23153-6A0A3 |
Nut Assy-Pulley |
Alternator (2005-06-01 ~ ; 3G83 +3G83T) |
| 23188-6A0A0 |
Nut-Terminal |
Alternator (2005-06-01 ~ ; 3G83 +3G83T) |
| 23215-6A0A1 |
Regulator Assy-Ic |
Alternator (2005-06-01 ~ ; 3G83 +3G83T) |
| 23299-6A0A2 |
Nut |
Alternator (2005-06-01 ~ ; 3G83 +3G83T) |
