Search › Model › N50
N50

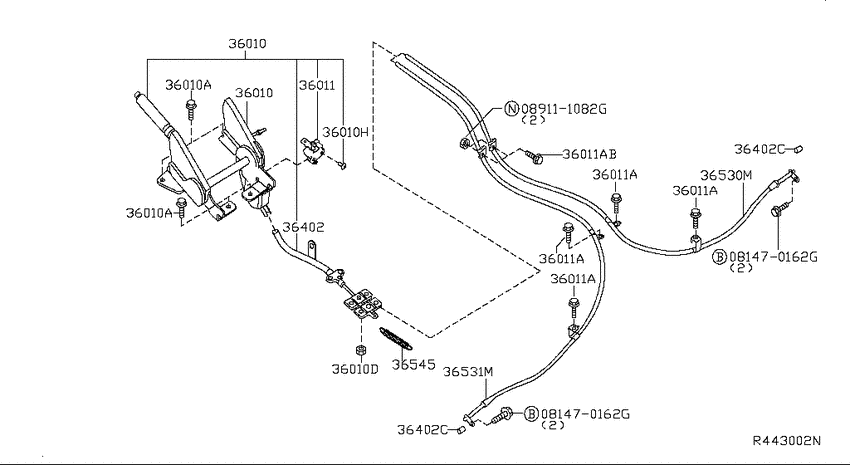

Parking brake control (2009-08-01 ~ ; VQ40DE) 9
| # | OEM | Part name |
|---|---|---|
| 36010 | 36010-EB30B | Device Assy-Parking Brake Control |
| 36010 | 01121-0097U | Bolt |
| 36010 | 01121-0108U | Bolt |
| 36011 | 36011-4P000 | Switch Assy-Parking Brake Lamp |
| 36402 | 36402-EA000 | Cable Assy-Parking Brake, Front |
| 36530 | 36530-EA01C | Cable Assy-Parking, Rear Rh |
| 36531 | 36531-EA01C | Cable Assy-Parking, Rear Lh |
| 36545 | 36545-0P001 | Spring-Return, Parking Brake |
| 81470162 | 08147-0162G | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 01121-0097U | Bolt | Parking brake control (2009-08-01 ~ ; VQ40DE) |
| 01121-0108U | Bolt | Parking brake control (2009-08-01 ~ ; VQ40DE) |
| 08147-0162G | Bolt-hexagon | Parking brake control (2009-08-01 ~ ; VQ40DE) |
| 36010-EB30B | Device Assy-Parking Brake Control | Parking brake control (2009-08-01 ~ ; VQ40DE) |
| 36011-4P000 | Switch Assy-Parking Brake Lamp | Parking brake control (2009-08-01 ~ ; VQ40DE) |
| 36402-EA000 | Cable Assy-Parking Brake, Front | Parking brake control (2009-08-01 ~ ; VQ40DE) |
| 36530-EA01C | Cable Assy-Parking, Rear Rh | Parking brake control (2009-08-01 ~ ; VQ40DE) |
| 36531-EA01C | Cable Assy-Parking, Rear Lh | Parking brake control (2009-08-01 ~ ; VQ40DE) |
| 36545-0P001 | Spring-Return, Parking Brake | Parking brake control (2009-08-01 ~ ; VQ40DE) |
