N48W

Mitsubishi CHARIOT · 1992 · 4,909 parts · 261 categories

4,909 items

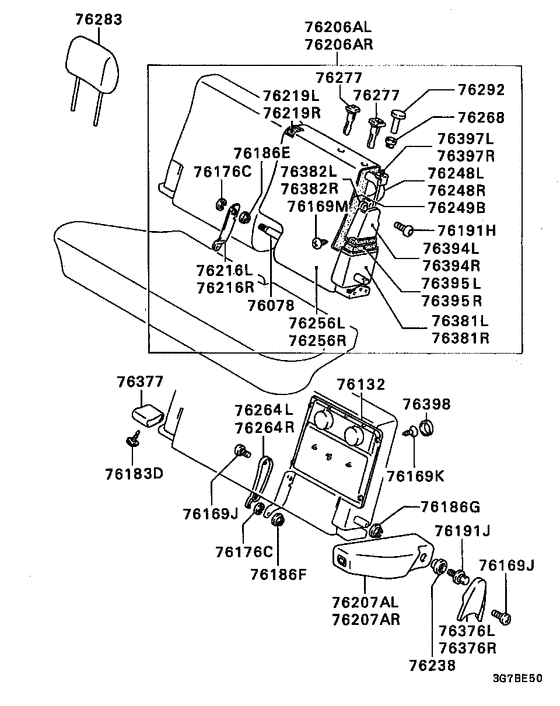

Rear seat (W/ARMREST..BACK) 86

#	OEM	Part name
76078	MB873671	SHAFT, RR SEAT RECLINING ADJUSTER
76132	MB915267	TRAY, 2ND SEAT BACK
76132	MB915268	TRAY, 2ND SEAT BACK
76132	MR746828	TRAY, 2ND SEAT BACK
76169	MB410568	SCREW, FR SEAT - 4x6
76169	MF453737	SCREW, FR SEAT - Tapping,4x25
76169	MF453016	SCREW, GEARSHIFT LINK - Tapping,4x10
76176	MF522408	SNAP RING, M/T GEARSHIFT EQUIP - 10
76183	MB873639	CLIP, RR SEAT
76186	MB873679	BUSHING, RR SEAT
76186	MB873636	BUSHING, RR SEAT
76186	MB850058	BUSHING, FR SEAT
76191	MB144649	BOLT, FR SEAT - 10x21
76191	MF243624	BOLT - Washer assembled,6x16
76206	MR742092	BACK ASSY, 2ND SEAT, LH
76206	MR742094	BACK ASSY, 2ND SEAT, LH
76206	MR746812	BACK ASSY, 2ND SEAT, LH
76206	MR742098	BACK ASSY, 2ND SEAT, RH
76206	MR742100	BACK ASSY, 2ND SEAT, RH
76206	MR746816	BACK ASSY, 2ND SEAT, RH
76207	MR742104	BACK ASSY, 2ND SEAT SIDE, LH
76207	MR742106	BACK ASSY, 2ND SEAT SIDE, LH
76207	MR746820	BACK ASSY, 2ND SEAT SIDE, LH
76207	MR742110	BACK ASSY, 2ND SEAT SIDE, RH
76207	MR742112	BACK ASSY, 2ND SEAT SIDE, RH
76207	MR746824	BACK ASSY, 2ND SEAT SIDE, RH
76216	MB873673	BRACKET, 2ND SEAT HINGE, LH
76216	MB873674	BRACKET, 2ND SEAT HINGE, RH
76219	MB873657	PAD, 2ND SEAT BACK, LH
76219	MB873658	PAD, 2ND SEAT BACK, RH
76238	MB741715	CAP, 2ND SEAT BACK SIDE END
76248	MB873655	FRAME, 2ND SEAT BACK, LH
76248	MB873656	FRAME, 2ND SEAT BACK, RH
76249	MB130809	WIRE, RR SEAT TRIMMING - 2.0x220
76256	MR742116	COVER, 2ND SEAT BACK, LH
76256	MR742118	COVER, 2ND SEAT BACK, LH
76256	MR746833	COVER, 2ND SEAT BACK, LH
76256	MR742122	COVER, 2ND SEAT BACK, RH
76256	MR742124	COVER, 2ND SEAT BACK, RH
76256	MR746837	COVER, 2ND SEAT BACK, RH
76264	MB915227	COVER, 2ND SEAT FREE HINGE, LH
76264	MB915228	COVER, 2ND SEAT FREE HINGE, LH
76264	MR746802	COVER, 2ND SEAT FREE HINGE, LH
76264	MB915229	COVER, 2ND SEAT FREE HINGE, RH
76264	MB915230	COVER, 2ND SEAT FREE HINGE, LH
76264	MR746803	COVER, 2ND SEAT FREE HINGE, RH
76268	MB790233	GUIDE, 2ND SEAT RECLINING ADJUSTER KNOB
76268	MB790234	GUIDE, 2ND SEAT RECLINING ADJUSTER KNOB
76268	MR746317	GARNISH, 2ND SEAT FOLDING KNOB
76277	MB797373	GUIDE, FR SEAT HEADREST - W/lock
76277	MB797375	GUIDE, FR SEAT HEADREST - W/o lock
76277	MB965689	GUIDE, FR SEAT HEADREST - W/lock
76277	MB965690	GUIDE, FR SEAT HEADREST - W/o lock
76277	MR746766	GUIDE, FR SEAT HEADREST - W/lock
76277	MR746767	GUIDE, FR SEAT HEADREST - W/o lock
76283	MR715597	HEADREST, FR SEAT
76283	MR715598	HEADREST, FR SEAT
76292	MB790230	KNOB, 2ND SEAT RECLINING ADJUSTER
76292	MB790231	KNOB, 2ND SEAT RECLINING ADJUSTER
76292	MR746316	KNOB, 2ND SEAT FOLDING LEVER
76376	MB915239	COVER, 2ND SEAT RECLINING ADJUSTER, UPR LH
76376	MB915240	COVER, 2ND SEAT RECLINING ADJUSTER, UPR LH
76376	MR746800	COVER, 2ND SEAT RECLINING ADJUSTER, UPR LH
76376	MB915241	COVER, 2ND SEAT RECLINING ADJUSTER, UPR LH
76376	MB915242	COVER, 2ND SEAT RECLINING ADJUSTER, UPR LH
76376	MR746801	COVER, 2ND SEAT RECLINING ADJUSTER, UPR RH
76377	MR742086	COVER, 2ND SEAT RECLINING ADJUSTER ROD
76377	MR742088	COVER, 2ND SEAT RECLINING ADJUSTER ROD
76377	MR746808	COVER, 2ND SEAT RECLINING ADJUSTER ROD
76381	MR742128	COVER, 2ND SEAT FOLDING ADJUSTER PANEL, LH
76381	MR742130	COVER, 2ND SEAT FOLDING ADJUSTER PANEL, LH
76381	MR746841	COVER, 2ND SEAT FOLDING ADJUSTER PANEL, LH
76381	MR742134	COVER, 2ND SEAT FOLDING ADJUSTER PANEL, RH
76381	MR742136	COVER, 2ND SEAT FOLDING ADJUSTER PANEL, RH
76381	MR746845	COVER, 2ND SEAT FOLDING ADJUSTER PANEL, RH
76382	MB873669	ADJUSTER, 2ND SEAT FOLDING, LH
76382	MB873670	ADJUSTER, 2ND SEAT FOLDING, RH
76394	MB873677	PANEL, 2ND SEAT FOLDING ADJUSTER PROTECTOR, LH
76394	MB873678	PANEL, 2ND SEAT FOLDING ADJUSTER PROTECTOR, RH
76395	MB873659	PAD, 2ND SEAT FOLDING ADJUSTER PANEL, LH
76395	MB873660	PAD, 2ND SEAT FOLDING ADJUSTER PANEL, RH
76397	MB873675	ROD, 2ND SEAT FOLDING, LH
76397	MB873676	ROD, 2ND SEAT FOLDING, RH
76398	MB774538	CAP, FR SEAT
76398	MB828010	CAP, FR SEAT
76398	MR746315	CAP, FR SEAT

OEM	Part name	Category
MB130809	WIRE, RR SEAT TRIMMING - 2.0x220	Rear seat (W/ARMREST..BACK)
MB144649	BOLT, FR SEAT - 10x21	Rear seat (W/ARMREST..BACK)
MB410568	SCREW, FR SEAT - 4x6	Rear seat (W/ARMREST..BACK)
MB741715	CAP, 2ND SEAT BACK SIDE END	Rear seat (W/ARMREST..BACK)
MB774538	CAP, FR SEAT	Rear seat (W/ARMREST..BACK)
MB790230	KNOB, 2ND SEAT RECLINING ADJUSTER	Rear seat (W/ARMREST..BACK)
MB790231	KNOB, 2ND SEAT RECLINING ADJUSTER	Rear seat (W/ARMREST..BACK)
MB790233	GUIDE, 2ND SEAT RECLINING ADJUSTER KNOB	Rear seat (W/ARMREST..BACK)
MB790234	GUIDE, 2ND SEAT RECLINING ADJUSTER KNOB	Rear seat (W/ARMREST..BACK)
MB797373	GUIDE, FR SEAT HEADREST - W/lock	Rear seat (W/ARMREST..BACK)
MB797375	GUIDE, FR SEAT HEADREST - W/o lock	Rear seat (W/ARMREST..BACK)
MB828010	CAP, FR SEAT	Rear seat (W/ARMREST..BACK)
MB850058	BUSHING, FR SEAT	Rear seat (W/ARMREST..BACK)
MB873636	BUSHING, RR SEAT	Rear seat (W/ARMREST..BACK)
MB873639	CLIP, RR SEAT	Rear seat (W/ARMREST..BACK)
MB873655	FRAME, 2ND SEAT BACK, LH	Rear seat (W/ARMREST..BACK)
MB873656	FRAME, 2ND SEAT BACK, RH	Rear seat (W/ARMREST..BACK)
MB873657	PAD, 2ND SEAT BACK, LH	Rear seat (W/ARMREST..BACK)
MB873658	PAD, 2ND SEAT BACK, RH	Rear seat (W/ARMREST..BACK)
MB873659	PAD, 2ND SEAT FOLDING ADJUSTER PANEL, LH	Rear seat (W/ARMREST..BACK)
MB873660	PAD, 2ND SEAT FOLDING ADJUSTER PANEL, RH	Rear seat (W/ARMREST..BACK)
MB873669	ADJUSTER, 2ND SEAT FOLDING, LH	Rear seat (W/ARMREST..BACK)
MB873670	ADJUSTER, 2ND SEAT FOLDING, RH	Rear seat (W/ARMREST..BACK)
MB873671	SHAFT, RR SEAT RECLINING ADJUSTER	Rear seat (W/ARMREST..BACK)
MB873673	BRACKET, 2ND SEAT HINGE, LH	Rear seat (W/ARMREST..BACK)
MB873674	BRACKET, 2ND SEAT HINGE, RH	Rear seat (W/ARMREST..BACK)
MB873675	ROD, 2ND SEAT FOLDING, LH	Rear seat (W/ARMREST..BACK)
MB873676	ROD, 2ND SEAT FOLDING, RH	Rear seat (W/ARMREST..BACK)
MB873677	PANEL, 2ND SEAT FOLDING ADJUSTER PROTECTOR, LH	Rear seat (W/ARMREST..BACK)
MB873678	PANEL, 2ND SEAT FOLDING ADJUSTER PROTECTOR, RH	Rear seat (W/ARMREST..BACK)
MB873679	BUSHING, RR SEAT	Rear seat (W/ARMREST..BACK)
MB915227	COVER, 2ND SEAT FREE HINGE, LH	Rear seat (W/ARMREST..BACK)
MB915228	COVER, 2ND SEAT FREE HINGE, LH	Rear seat (W/ARMREST..BACK)
MB915229	COVER, 2ND SEAT FREE HINGE, RH	Rear seat (W/ARMREST..BACK)
MB915230	COVER, 2ND SEAT FREE HINGE, LH	Rear seat (W/ARMREST..BACK)
MB915239	COVER, 2ND SEAT RECLINING ADJUSTER, UPR LH	Rear seat (W/ARMREST..BACK)
MB915240	COVER, 2ND SEAT RECLINING ADJUSTER, UPR LH	Rear seat (W/ARMREST..BACK)
MB915241	COVER, 2ND SEAT RECLINING ADJUSTER, UPR LH	Rear seat (W/ARMREST..BACK)
MB915242	COVER, 2ND SEAT RECLINING ADJUSTER, UPR LH	Rear seat (W/ARMREST..BACK)
MB915267	TRAY, 2ND SEAT BACK	Rear seat (W/ARMREST..BACK)
MB915268	TRAY, 2ND SEAT BACK	Rear seat (W/ARMREST..BACK)
MB965689	GUIDE, FR SEAT HEADREST - W/lock	Rear seat (W/ARMREST..BACK)
MB965690	GUIDE, FR SEAT HEADREST - W/o lock	Rear seat (W/ARMREST..BACK)
MF243624	BOLT - Washer assembled,6x16	Rear seat (W/ARMREST..BACK)
MF453016	SCREW, GEARSHIFT LINK - Tapping,4x10	Rear seat (W/ARMREST..BACK)
MF453737	SCREW, FR SEAT - Tapping,4x25	Rear seat (W/ARMREST..BACK)
MF522408	SNAP RING, M/T GEARSHIFT EQUIP - 10	Rear seat (W/ARMREST..BACK)
MR715597	HEADREST, FR SEAT	Rear seat (W/ARMREST..BACK)
MR715598	HEADREST, FR SEAT	Rear seat (W/ARMREST..BACK)
MR742086	COVER, 2ND SEAT RECLINING ADJUSTER ROD	Rear seat (W/ARMREST..BACK)
MR742088	COVER, 2ND SEAT RECLINING ADJUSTER ROD	Rear seat (W/ARMREST..BACK)
MR742092	BACK ASSY, 2ND SEAT, LH	Rear seat (W/ARMREST..BACK)
MR742094	BACK ASSY, 2ND SEAT, LH	Rear seat (W/ARMREST..BACK)
MR742098	BACK ASSY, 2ND SEAT, RH	Rear seat (W/ARMREST..BACK)
MR742100	BACK ASSY, 2ND SEAT, RH	Rear seat (W/ARMREST..BACK)
MR742104	BACK ASSY, 2ND SEAT SIDE, LH	Rear seat (W/ARMREST..BACK)
MR742106	BACK ASSY, 2ND SEAT SIDE, LH	Rear seat (W/ARMREST..BACK)
MR742110	BACK ASSY, 2ND SEAT SIDE, RH	Rear seat (W/ARMREST..BACK)
MR742112	BACK ASSY, 2ND SEAT SIDE, RH	Rear seat (W/ARMREST..BACK)
MR742116	COVER, 2ND SEAT BACK, LH	Rear seat (W/ARMREST..BACK)
MR742118	COVER, 2ND SEAT BACK, LH	Rear seat (W/ARMREST..BACK)
MR742122	COVER, 2ND SEAT BACK, RH	Rear seat (W/ARMREST..BACK)
MR742124	COVER, 2ND SEAT BACK, RH	Rear seat (W/ARMREST..BACK)
MR742128	COVER, 2ND SEAT FOLDING ADJUSTER PANEL, LH	Rear seat (W/ARMREST..BACK)
MR742130	COVER, 2ND SEAT FOLDING ADJUSTER PANEL, LH	Rear seat (W/ARMREST..BACK)
MR742134	COVER, 2ND SEAT FOLDING ADJUSTER PANEL, RH	Rear seat (W/ARMREST..BACK)
MR742136	COVER, 2ND SEAT FOLDING ADJUSTER PANEL, RH	Rear seat (W/ARMREST..BACK)
MR746315	CAP, FR SEAT	Rear seat (W/ARMREST..BACK)
MR746316	KNOB, 2ND SEAT FOLDING LEVER	Rear seat (W/ARMREST..BACK)
MR746317	GARNISH, 2ND SEAT FOLDING KNOB	Rear seat (W/ARMREST..BACK)
MR746766	GUIDE, FR SEAT HEADREST - W/lock	Rear seat (W/ARMREST..BACK)
MR746767	GUIDE, FR SEAT HEADREST - W/o lock	Rear seat (W/ARMREST..BACK)
MR746800	COVER, 2ND SEAT RECLINING ADJUSTER, UPR LH	Rear seat (W/ARMREST..BACK)
MR746801	COVER, 2ND SEAT RECLINING ADJUSTER, UPR RH	Rear seat (W/ARMREST..BACK)
MR746802	COVER, 2ND SEAT FREE HINGE, LH	Rear seat (W/ARMREST..BACK)
MR746803	COVER, 2ND SEAT FREE HINGE, RH	Rear seat (W/ARMREST..BACK)
MR746808	COVER, 2ND SEAT RECLINING ADJUSTER ROD	Rear seat (W/ARMREST..BACK)
MR746812	BACK ASSY, 2ND SEAT, LH	Rear seat (W/ARMREST..BACK)
MR746816	BACK ASSY, 2ND SEAT, RH	Rear seat (W/ARMREST..BACK)
MR746820	BACK ASSY, 2ND SEAT SIDE, LH	Rear seat (W/ARMREST..BACK)
MR746824	BACK ASSY, 2ND SEAT SIDE, RH	Rear seat (W/ARMREST..BACK)
MR746828	TRAY, 2ND SEAT BACK	Rear seat (W/ARMREST..BACK)
MR746833	COVER, 2ND SEAT BACK, LH	Rear seat (W/ARMREST..BACK)
MR746837	COVER, 2ND SEAT BACK, RH	Rear seat (W/ARMREST..BACK)
MR746841	COVER, 2ND SEAT FOLDING ADJUSTER PANEL, LH	Rear seat (W/ARMREST..BACK)
MR746845	COVER, 2ND SEAT FOLDING ADJUSTER PANEL, RH	Rear seat (W/ARMREST..BACK)
