Search › Model › N24W

N24W

Mitsubishi EXPO-LRV · 1992 · 3,266 parts · 200 categories

3,266 items

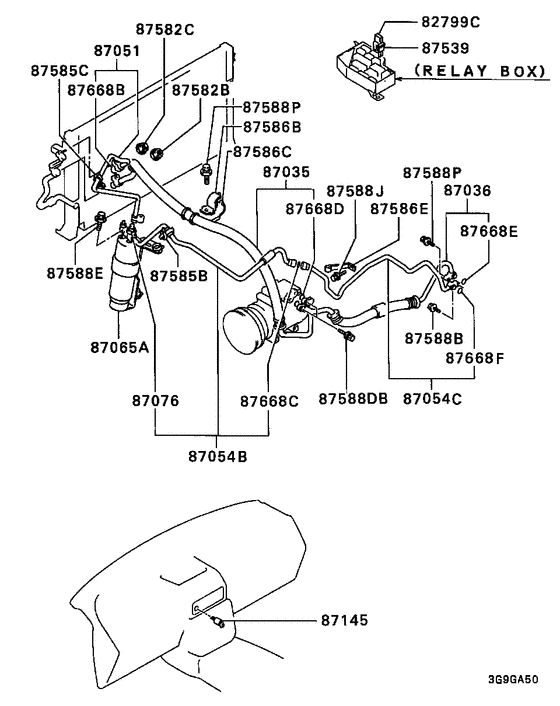

A/c condenser, piping (A/C PIPING) 26

#	OEM	Part name
82799	MB629083	RELAY, ABS - G8h-1a7t-n25
87035	MB609855	HOSE, A/C COMPRESSOR DISCHARGE
87036	MR114549	HOSE,A/C COMPRESSOR SUCTION
87051	MB899347	PIPE, A/C CONDENSER OUTLET
87054	MB899371	PIPE,A/C RECEIVER OUTLET
87054	MB609864	PIPE,A/C RECEIVER OUTLET
87065	MB899497	RECEIVER ASSY,A/C
87076	MB657806	SWITCH, A/C REFRIGERANT PRESSURE
87145	MB657410	SWITCH, A/C
87539	MS810965	FUSE, SWITCH - Blade type,10a
87539	MS810968	FUSE, INSTRUMENT PANEL WIRING - Blade type,25a
87582	MS440503	NUT - Washer assembled,8
87582	MS440502	NUT, FUEL TANK - Washer assembled,6
87585	MU481162	CLIP, A/C PIPING - 12
87585	MS470477	CLIP, ACCEL CONTROL EQUIP - 8.3-12
87586	MR114548	CLAMP, A/C PIPING
87586	MR114547	CLAMP, A/C PIPING
87586	MB879207	CLAMP,A/C PIPING
87588	MF244830	BOLT, ENG RR PLATE
87588	MF244857	BOLT, A/C DRIVING - Washer assembled,8x35
87588	MF243628	BOLT, CONNROD - Washer assembled,6x25
87588	MF243651	BOLT, ENG RR MOUNTING - Washer assembled,8x20
87668	MB276213	O-RING, A/C PIPING - 8
87668	MR114742	O-RING, A/C PIPING - 8
87668	MR114743	O-RING, A/C PIPING - 1/2
87668	MR114744	O-RING, A/C PIPING - 5/8

OEM	Part name	Category
MB276213	O-RING, A/C PIPING - 8	A/c condenser, piping (A/C PIPING)
MB609855	HOSE, A/C COMPRESSOR DISCHARGE	A/c condenser, piping (A/C PIPING)
MB609864	PIPE,A/C RECEIVER OUTLET	A/c condenser, piping (A/C PIPING)
MB629083	RELAY, ABS - G8h-1a7t-n25	A/c condenser, piping (A/C PIPING)
MB657410	SWITCH, A/C	A/c condenser, piping (A/C PIPING)
MB657806	SWITCH, A/C REFRIGERANT PRESSURE	A/c condenser, piping (A/C PIPING)
MB879207	CLAMP,A/C PIPING	A/c condenser, piping (A/C PIPING)
MB899347	PIPE, A/C CONDENSER OUTLET	A/c condenser, piping (A/C PIPING)
MB899371	PIPE,A/C RECEIVER OUTLET	A/c condenser, piping (A/C PIPING)
MB899497	RECEIVER ASSY,A/C	A/c condenser, piping (A/C PIPING)
MF243628	BOLT, CONNROD - Washer assembled,6x25	A/c condenser, piping (A/C PIPING)
MF243651	BOLT, ENG RR MOUNTING - Washer assembled,8x20	A/c condenser, piping (A/C PIPING)
MF244830	BOLT, ENG RR PLATE	A/c condenser, piping (A/C PIPING)
MF244857	BOLT, A/C DRIVING - Washer assembled,8x35	A/c condenser, piping (A/C PIPING)
MR114547	CLAMP, A/C PIPING	A/c condenser, piping (A/C PIPING)
MR114548	CLAMP, A/C PIPING	A/c condenser, piping (A/C PIPING)
MR114549	HOSE,A/C COMPRESSOR SUCTION	A/c condenser, piping (A/C PIPING)
MR114742	O-RING, A/C PIPING - 8	A/c condenser, piping (A/C PIPING)
MR114743	O-RING, A/C PIPING - 1/2	A/c condenser, piping (A/C PIPING)
MR114744	O-RING, A/C PIPING - 5/8	A/c condenser, piping (A/C PIPING)
MS440502	NUT, FUEL TANK - Washer assembled,6	A/c condenser, piping (A/C PIPING)
MS440503	NUT - Washer assembled,8	A/c condenser, piping (A/C PIPING)
MS470477	CLIP, ACCEL CONTROL EQUIP - 8.3-12	A/c condenser, piping (A/C PIPING)
MS810965	FUSE, SWITCH - Blade type,10a	A/c condenser, piping (A/C PIPING)
MS810968	FUSE, INSTRUMENT PANEL WIRING - Blade type,25a	A/c condenser, piping (A/C PIPING)
MU481162	CLIP, A/C PIPING - 12	A/c condenser, piping (A/C PIPING)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 200
Collected: 2026-07-25
