Search › Model › N23W
N23W

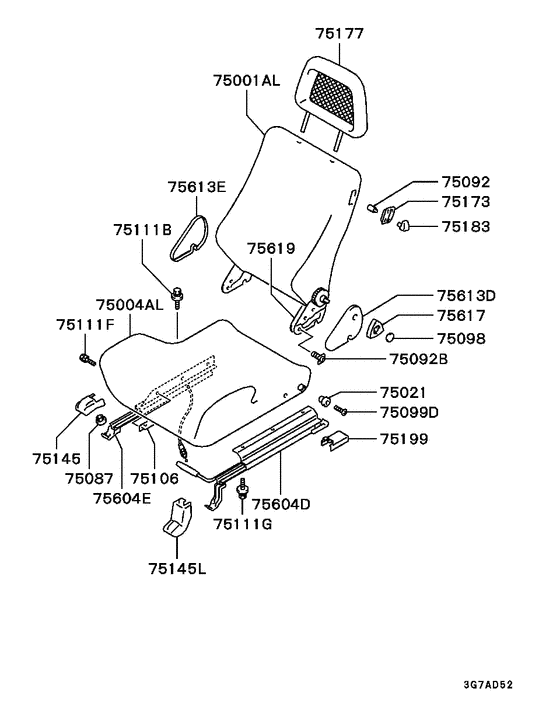

Front seat (LH..RECARO) 15
| # | OEM | Part name |
|---|---|---|
| 75001 | MR763080 | BACK ASSY, FR SEAT, LH |
| 75004 | MR763078 | CUSHION ASSY, FR SEAT, LH |
| 75087 | MS440504 | NUT - Washer assembled,10 |
| 75098 | MB769902 | CAP, FR SEAT LUMBAR SUPPORT LEVER |
| 75099 | MB850917 | SCREW, FR SEAT |
| 75111 | MS240188 | BOLT, FR BUMPER - Washer assembled,10x30 |
| 75111 | MU240135 | BOLT, FR SEAT - Washer assembled,10x30 |
| 75111 | MB873707 | BOLT, FR SEAT - 8x20 |
| 75111 | MF244824 | BOLT - Washer assembled,6x16 |
| 75145 | MB778517 | COVER, FR SEAT ANCHOR |
| 75145 | MB784530 | COVER, FR SEAT ANCHOR, LH |
| 75177 | MR744564 | HEADREST, FR SEAT |
| 75199 | MB784488 | COVER, FR SEAT ANCHOR, RR |
| 75604 | MR139797 | ADJUSTER, FR SEAT SLIDE |
| 75604 | MR139799 | ADJUSTER, FR SEAT SLIDE |
| OEM | Part name | Category |
|---|---|---|
| MB769902 | CAP, FR SEAT LUMBAR SUPPORT LEVER | Front seat (LH..RECARO) |
| MB778517 | COVER, FR SEAT ANCHOR | Front seat (LH..RECARO) |
| MB784488 | COVER, FR SEAT ANCHOR, RR | Front seat (LH..RECARO) |
| MB784530 | COVER, FR SEAT ANCHOR, LH | Front seat (LH..RECARO) |
| MB850917 | SCREW, FR SEAT | Front seat (LH..RECARO) |
| MB873707 | BOLT, FR SEAT - 8x20 | Front seat (LH..RECARO) |
| MF244824 | BOLT - Washer assembled,6x16 | Front seat (LH..RECARO) |
| MR139797 | ADJUSTER, FR SEAT SLIDE | Front seat (LH..RECARO) |
| MR139799 | ADJUSTER, FR SEAT SLIDE | Front seat (LH..RECARO) |
| MR744564 | HEADREST, FR SEAT | Front seat (LH..RECARO) |
| MR763078 | CUSHION ASSY, FR SEAT, LH | Front seat (LH..RECARO) |
| MR763080 | BACK ASSY, FR SEAT, LH | Front seat (LH..RECARO) |
| MS240188 | BOLT, FR BUMPER - Washer assembled,10x30 | Front seat (LH..RECARO) |
| MS440504 | NUT - Washer assembled,10 | Front seat (LH..RECARO) |
| MU240135 | BOLT, FR SEAT - Washer assembled,10x30 | Front seat (LH..RECARO) |
