N15

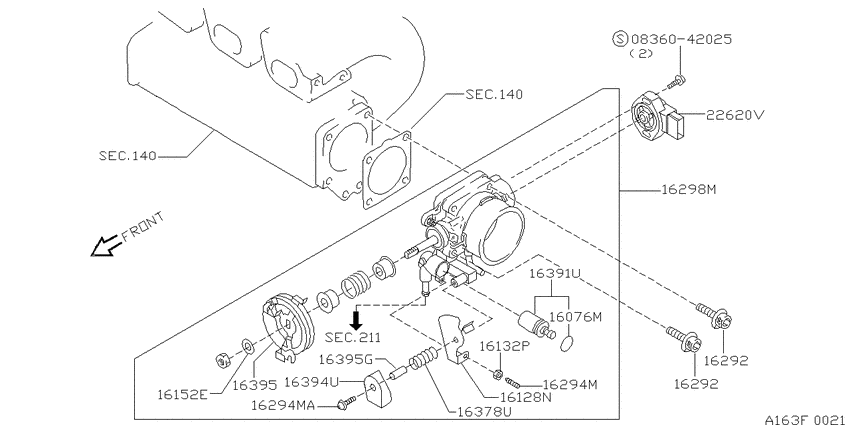

Throttle chamber (1997-09-01 ~ 1999-10-01; SR16VE) 8
| # | OEM | Part name |
|---|---|---|
| 16128 | 16131-2J200 | Cam-Opener |
| 16152 | 16152-2J200 | Washer |
| 16294 | 16379-2J201 | Screw-Adjusting |
| 16298 | 16119-2J201 | Chamber Assy-Throttle |
| 16378 | 16378-2J200 | Spring-Cam |
| 16394 | 16394-2J201 | Ptc |
| 16395 | 16134-2J201 | Lever-Throttle |
| 22620 | 22620-31U01 | Throttle Position Switch |
| OEM | Part name | Category |
|---|---|---|
| 16119-2J201 | Chamber Assy-Throttle | Throttle chamber (1997-09-01 ~ 1999-10-01; SR16VE) |
| 16131-2J200 | Cam-Opener | Throttle chamber (1997-09-01 ~ 1999-10-01; SR16VE) |
| 16134-2J201 | Lever-Throttle | Throttle chamber (1997-09-01 ~ 1999-10-01; SR16VE) |
| 16152-2J200 | Washer | Throttle chamber (1997-09-01 ~ 1999-10-01; SR16VE) |
| 16378-2J200 | Spring-Cam | Throttle chamber (1997-09-01 ~ 1999-10-01; SR16VE) |
| 16379-2J201 | Screw-Adjusting | Throttle chamber (1997-09-01 ~ 1999-10-01; SR16VE) |
| 16394-2J201 | Ptc | Throttle chamber (1997-09-01 ~ 1999-10-01; SR16VE) |
| 22620-31U01 | Throttle Position Switch | Throttle chamber (1997-09-01 ~ 1999-10-01; SR16VE) |
