Search › Model › N15
N15

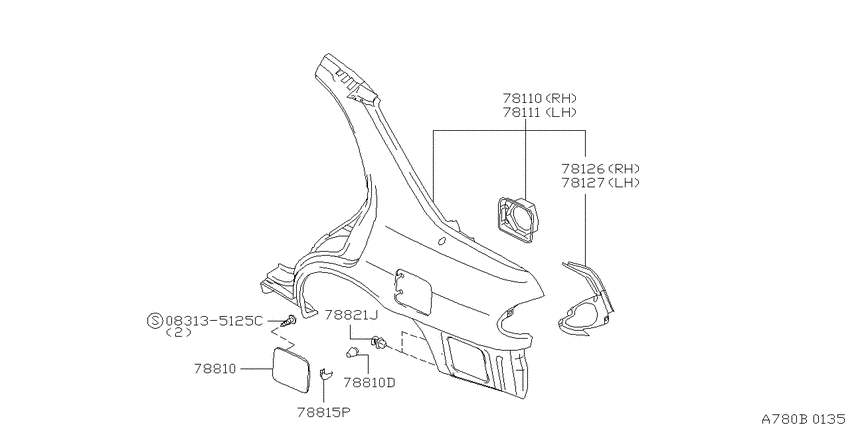

Rear fender & fitting (1997-09-01 ~ ; 4S) 8
| # | OEM | Part name |
|---|---|---|
| 78110 | 78100-0N830 | Fender-Rear, Rh |
| 78110 | 78100-0N831 | Fender-Rear, Rh |
| 78111 | 78101-0N835 | Fender-Rear, Lh |
| 78111 | 78101-0N837 | Fender-Rear, Lh |
| 78126 | 78134-0N830 | Corner-Rear Fender, Rh |
| 78127 | 78135-0N836 | Corner-Rear Fender, Lh |
| 78810 | 78830-0N810 | Lid-Gas Filler |
| 83135125 | 08313-5125C | スクリユ-,マシン |
| OEM | Part name | Category |
|---|---|---|
| 08313-5125C | スクリユ-,マシン | Rear fender & fitting (1997-09-01 ~ ; 4S) |
| 78100-0N830 | Fender-Rear, Rh | Rear fender & fitting (1997-09-01 ~ ; 4S) |
| 78100-0N831 | Fender-Rear, Rh | Rear fender & fitting (1997-09-01 ~ ; 4S) |
| 78101-0N835 | Fender-Rear, Lh | Rear fender & fitting (1997-09-01 ~ ; 4S) |
| 78101-0N837 | Fender-Rear, Lh | Rear fender & fitting (1997-09-01 ~ ; 4S) |
| 78134-0N830 | Corner-Rear Fender, Rh | Rear fender & fitting (1997-09-01 ~ ; 4S) |
| 78135-0N836 | Corner-Rear Fender, Lh | Rear fender & fitting (1997-09-01 ~ ; 4S) |
| 78830-0N810 | Lid-Gas Filler | Rear fender & fitting (1997-09-01 ~ ; 4S) |
