| 01121-00911 |
BOLT |

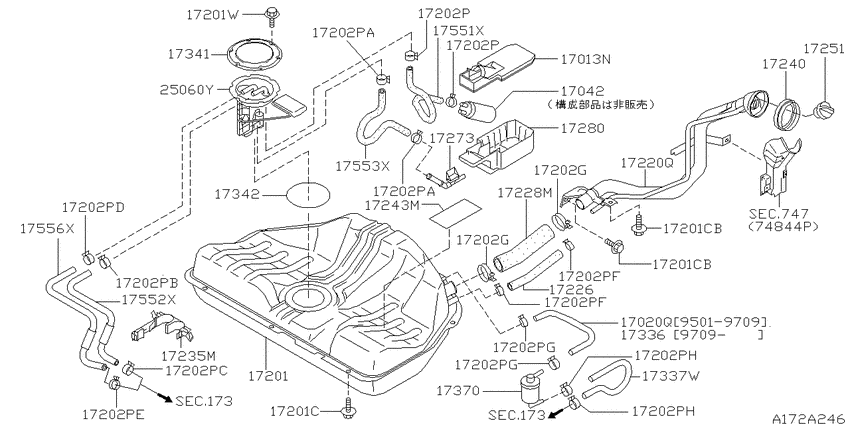

Fuel tank (1997-09-01 ~ 1999-10-01; 9(4S+3HB).SR18DE +(2WD.PUL+2WD.LUC).GA15DE +GA16DE +SR16VE) |
| 01121-03791 |
BOLT |
Fuel tank (1997-09-01 ~ 1999-10-01; 9(4S+3HB).SR18DE +(2WD.PUL+2WD.LUC).GA15DE +GA16DE +SR16VE) |
| 01555-00291 |
CLAMP-HOSE |
Fuel tank (1997-09-01 ~ 1999-10-01; 9(4S+3HB).SR18DE +(2WD.PUL+2WD.LUC).GA15DE +GA16DE +SR16VE) |
| 01558-00121 |
CLAMP |
Fuel tank (1997-09-01 ~ 1999-10-01; 9(4S+3HB).SR18DE +(2WD.PUL+2WD.LUC).GA15DE +GA16DE +SR16VE) |
| 01558-00401 |
CLAMP-HOSE |
Fuel tank (1997-09-01 ~ 1999-10-01; 9(4S+3HB).SR18DE +(2WD.PUL+2WD.LUC).GA15DE +GA16DE +SR16VE) |
| 16439-35F15 |
Clamp |
Fuel tank (1997-09-01 ~ 1999-10-01; 9(4S+3HB).SR18DE +(2WD.PUL+2WD.LUC).GA15DE +GA16DE +SR16VE) |
| 16439-N4710 |
Clamp-Hose |
Fuel tank (1997-09-01 ~ 1999-10-01; 9(4S+3HB).SR18DE +(2WD.PUL+2WD.LUC).GA15DE +GA16DE +SR16VE) |
| 16439-V5000 |
Clamp-Hose A |
Fuel tank (1997-09-01 ~ 1999-10-01; 9(4S+3HB).SR18DE +(2WD.PUL+2WD.LUC).GA15DE +GA16DE +SR16VE) |
| 17013-0N000 |
Bracket-Fuel Pump |
Fuel tank (1997-09-01 ~ 1999-10-01; 9(4S+3HB).SR18DE +(2WD.PUL+2WD.LUC).GA15DE +GA16DE +SR16VE) |
| 17042-0M024 |
Pump Assy-Fuel |
Fuel tank (1997-09-01 ~ 1999-10-01; 9(4S+3HB).SR18DE +(2WD.PUL+2WD.LUC).GA15DE +GA16DE +SR16VE) |
| 17202-0M000 |
Tank Assy-Fuel |
Fuel tank (1997-09-01 ~ 1999-10-01; 9(4S+3HB).SR18DE +(2WD.PUL+2WD.LUC).GA15DE +GA16DE +SR16VE) |
| 17221-0N000 |
チユ-ブ アツセンブリ-,フイラ- |
Fuel tank (1997-09-01 ~ 1999-10-01; 9(4S+3HB).SR18DE +(2WD.PUL+2WD.LUC).GA15DE +GA16DE +SR16VE) |
| 17226-4U000 |
Hose-Ventilation |
Fuel tank (1997-09-01 ~ 1999-10-01; 9(4S+3HB).SR18DE +(2WD.PUL+2WD.LUC).GA15DE +GA16DE +SR16VE) |
| 17235-0M000 |
Connector-Breather |
Fuel tank (1997-09-01 ~ 1999-10-01; 9(4S+3HB).SR18DE +(2WD.PUL+2WD.LUC).GA15DE +GA16DE +SR16VE) |
| 17240-50Y00 |
Grommet-Filler Base |
Fuel tank (1997-09-01 ~ 1999-10-01; 9(4S+3HB).SR18DE +(2WD.PUL+2WD.LUC).GA15DE +GA16DE +SR16VE) |
| 17243-51E02 |
SHIM-FUEL TANK |
Fuel tank (1997-09-01 ~ 1999-10-01; 9(4S+3HB).SR18DE +(2WD.PUL+2WD.LUC).GA15DE +GA16DE +SR16VE) |
| 17273-0N010 |
Tube-Fuel Tank, Return |
Fuel tank (1997-09-01 ~ 1999-10-01; 9(4S+3HB).SR18DE +(2WD.PUL+2WD.LUC).GA15DE +GA16DE +SR16VE) |
| 17280-0N000 |
Chamber Assy-Fuel Tank |
Fuel tank (1997-09-01 ~ 1999-10-01; 9(4S+3HB).SR18DE +(2WD.PUL+2WD.LUC).GA15DE +GA16DE +SR16VE) |
| 17336-0M000 |
Hose-Evaporation |
Fuel tank (1997-09-01 ~ 1999-10-01; 9(4S+3HB).SR18DE +(2WD.PUL+2WD.LUC).GA15DE +GA16DE +SR16VE) |
| 17370-86L01 |
Valve Assy-Check |
Fuel tank (1997-09-01 ~ 1999-10-01; 9(4S+3HB).SR18DE +(2WD.PUL+2WD.LUC).GA15DE +GA16DE +SR16VE) |
| 17552-1M207 |
Hose-Fuel |
Fuel tank (1997-09-01 ~ 1999-10-01; 9(4S+3HB).SR18DE +(2WD.PUL+2WD.LUC).GA15DE +GA16DE +SR16VE) |
| 17553-50Y10 |
Hose-Fuel |
Fuel tank (1997-09-01 ~ 1999-10-01; 9(4S+3HB).SR18DE +(2WD.PUL+2WD.LUC).GA15DE +GA16DE +SR16VE) |
| 17556-1M207 |
Hose-Fuel |
Fuel tank (1997-09-01 ~ 1999-10-01; 9(4S+3HB).SR18DE +(2WD.PUL+2WD.LUC).GA15DE +GA16DE +SR16VE) |
| 25060-0M000 |
Sender Unit-Fuel Gauge |
Fuel tank (1997-09-01 ~ 1999-10-01; 9(4S+3HB).SR18DE +(2WD.PUL+2WD.LUC).GA15DE +GA16DE +SR16VE) |
| 25060-0M010 |
Sender Unit-Fuel Gauge |
Fuel tank (1997-09-01 ~ 1999-10-01; 9(4S+3HB).SR18DE +(2WD.PUL+2WD.LUC).GA15DE +GA16DE +SR16VE) |
