Search › Model › N15
N15

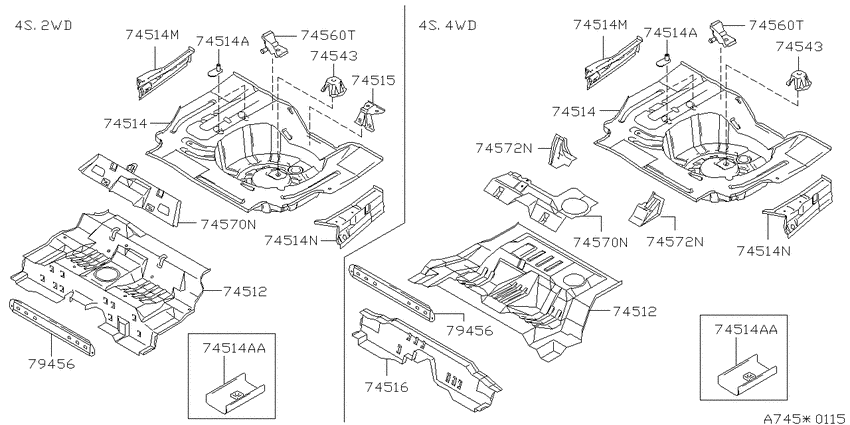

Floor panel (rear) (1997-09-01 ~ 1999-10-01; 4S; 4S) 7
| # | OEM | Part name |
|---|---|---|
| 74512 | 74512-0M030 | Floor-Rear, Front |
| 74514 | 74398-10V00 | Plate-Bolt |
| 74514 | 74530-0N800 | Floor-Rear, Rear Side Rh |
| 74514 | 74531-0N800 | Floor-Rear, Rear Side Lh |
| 74515 | 74595-0N800 | Bracket-Jack Mounting |
| 74560 | 74560-1N800 | Bracket-Muffler Mounting |
| 74570 | 74574-0N000 | Reinforce-Anchor Belt, Rear Floor |
| OEM | Part name | Category |
|---|---|---|
| 74398-10V00 | Plate-Bolt | Floor panel (rear) (1997-09-01 ~ 1999-10-01; 4S; 4S) |
| 74512-0M030 | Floor-Rear, Front | Floor panel (rear) (1997-09-01 ~ 1999-10-01; 4S; 4S) |
| 74530-0N800 | Floor-Rear, Rear Side Rh | Floor panel (rear) (1997-09-01 ~ 1999-10-01; 4S; 4S) |
| 74531-0N800 | Floor-Rear, Rear Side Lh | Floor panel (rear) (1997-09-01 ~ 1999-10-01; 4S; 4S) |
| 74560-1N800 | Bracket-Muffler Mounting | Floor panel (rear) (1997-09-01 ~ 1999-10-01; 4S; 4S) |
| 74574-0N000 | Reinforce-Anchor Belt, Rear Floor | Floor panel (rear) (1997-09-01 ~ 1999-10-01; 4S; 4S) |
| 74595-0N800 | Bracket-Jack Mounting | Floor panel (rear) (1997-09-01 ~ 1999-10-01; 4S; 4S) |
