N14

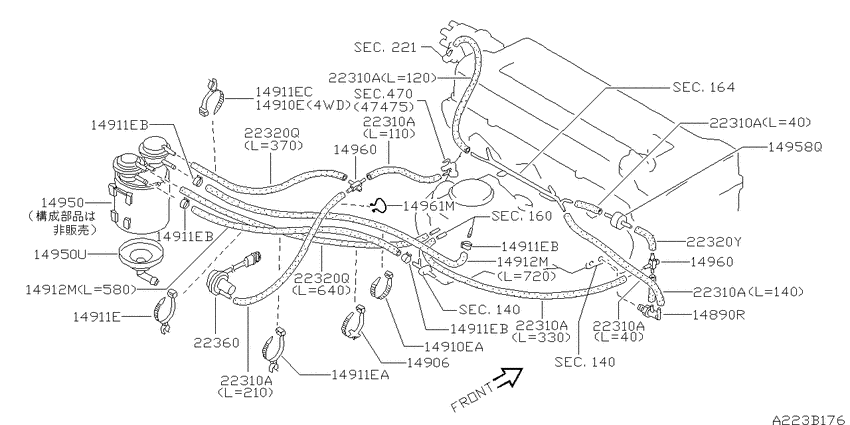

Vacuum piping (1992-08-01 ~ ; GA15DS) 13
| # | OEM | Part name |
|---|---|---|
| 14890 | 14890-64R65 | Thermal Vacuum Valve |
| 14890 | 14890-U7700 | Valve-Thermal |
| 14906 | 24222-89901 | Clip |
| 14910 | 01552-00043 | CLIP |
| 14911 | 16439-N2100 | Clamp-Hose |
| 14911 | 16439-50Y20 | Clamp-Hose |
| 14950 | 14950-50Y00 | Canister Assy-Evaporation |
| 14958 | 14958-W8810 | Valve Assy-Vacuum Delay |
| 14960 | 14960-W1304 | Connector, A |
| 14961 | 01552-00071 | LOCK-PURSE |
| 22320 | 22321-G5100 | Hose-Vacuum Control, B |
| 22360 | 22360-01M00 | Switch Assy-Vacuum |
| 22360 | 22360-77A01 | Switch Assy-Vacuum |
| OEM | Part name | Category |
|---|---|---|
| 01552-00043 | CLIP | Vacuum piping (1992-08-01 ~ ; GA15DS) |
| 01552-00071 | LOCK-PURSE | Vacuum piping (1992-08-01 ~ ; GA15DS) |
| 14890-64R65 | Thermal Vacuum Valve | Vacuum piping (1992-08-01 ~ ; GA15DS) |
| 14890-U7700 | Valve-Thermal | Vacuum piping (1992-08-01 ~ ; GA15DS) |
| 14950-50Y00 | Canister Assy-Evaporation | Vacuum piping (1992-08-01 ~ ; GA15DS) |
| 14958-W8810 | Valve Assy-Vacuum Delay | Vacuum piping (1992-08-01 ~ ; GA15DS) |
| 14960-W1304 | Connector, A | Vacuum piping (1992-08-01 ~ ; GA15DS) |
| 16439-50Y20 | Clamp-Hose | Vacuum piping (1992-08-01 ~ ; GA15DS) |
| 16439-N2100 | Clamp-Hose | Vacuum piping (1992-08-01 ~ ; GA15DS) |
| 22321-G5100 | Hose-Vacuum Control, B | Vacuum piping (1992-08-01 ~ ; GA15DS) |
| 22360-01M00 | Switch Assy-Vacuum | Vacuum piping (1992-08-01 ~ ; GA15DS) |
| 22360-77A01 | Switch Assy-Vacuum | Vacuum piping (1992-08-01 ~ ; GA15DS) |
| 24222-89901 | Clip | Vacuum piping (1992-08-01 ~ ; GA15DS) |
