N13W

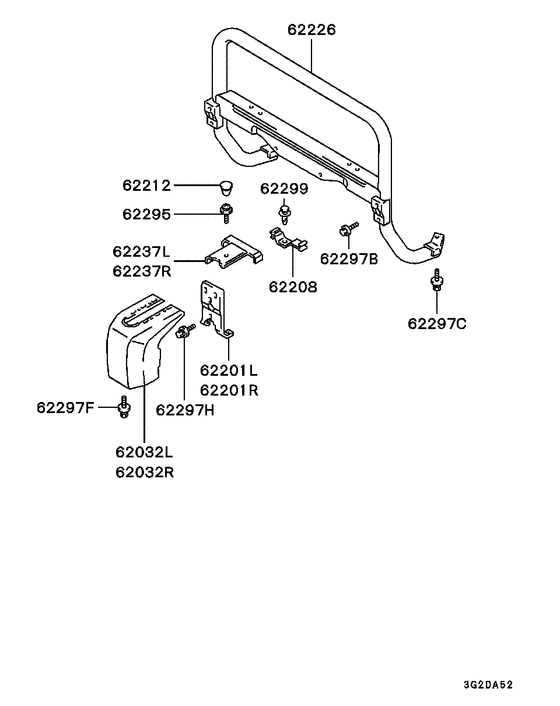

Grille guard (-9408.3) 18
| # | OEM | Part name |
|---|---|---|
| 62032 | MB842537 | GUARD, FR BUMPER, LH |
| 62032 | MB842538 | GUARD, FR BUMPER, RH |
| 62201 | MB866495 | BRACKET, FR GRILLE GUARD, LH |
| 62201 | MB866496 | BRACKET, FR GRILLE GUARD, RH |
| 62208 | MB862253 | BRACKET, RADIATOR GRILLE GUARD GARNISH |
| 62208 | MB862254 | BRACKET, RADIATOR GRILLE GUARD GARNISH |
| 62212 | MB889000 | CAP, FR BUMPER GUARD COVER |
| 62226 | MB842540 | GUARD, RADIATOR GRILLE |
| 62237 | MB862155 | PLATE, FR GRILLE GUARD, LH |
| 62237 | MB862156 | PLATE, FR GRILLE GUARD, RH |
| 62295 | MF351032 | SCREW, FUEL FILLER LID LOCKING - Washer assembled,6x16 |
| 62295 | MS350129 | SCREW, FUEL TANK - Washer assembled,6x16 |
| 62297 | MB190020 | BOLT, BODY MOUNTING - 10x80 |
| 62297 | MS240129 | BOLT, FUEL TANK - Washer assembled,10x25 |
| 62297 | MS240179 | BOLT, FR BUMPER - Washer assembled,6x16 |
| 62297 | MS240121 | BOLT, CONNROD - Washer assembled,6x16 |
| 62299 | MU481233 | CLIP, GRILLE GUARD GARNISH |
| 62299 | MB547806 | CLIP, SPLASH SHIELD - 8 |
| OEM | Part name | Category |
|---|---|---|
| MB190020 | BOLT, BODY MOUNTING - 10x80 | Grille guard (-9408.3) |
| MB547806 | CLIP, SPLASH SHIELD - 8 | Grille guard (-9408.3) |
| MB842537 | GUARD, FR BUMPER, LH | Grille guard (-9408.3) |
| MB842538 | GUARD, FR BUMPER, RH | Grille guard (-9408.3) |
| MB842540 | GUARD, RADIATOR GRILLE | Grille guard (-9408.3) |
| MB862155 | PLATE, FR GRILLE GUARD, LH | Grille guard (-9408.3) |
| MB862156 | PLATE, FR GRILLE GUARD, RH | Grille guard (-9408.3) |
| MB862253 | BRACKET, RADIATOR GRILLE GUARD GARNISH | Grille guard (-9408.3) |
| MB862254 | BRACKET, RADIATOR GRILLE GUARD GARNISH | Grille guard (-9408.3) |
| MB866495 | BRACKET, FR GRILLE GUARD, LH | Grille guard (-9408.3) |
| MB866496 | BRACKET, FR GRILLE GUARD, RH | Grille guard (-9408.3) |
| MB889000 | CAP, FR BUMPER GUARD COVER | Grille guard (-9408.3) |
| MF351032 | SCREW, FUEL FILLER LID LOCKING - Washer assembled,6x16 | Grille guard (-9408.3) |
| MS240121 | BOLT, CONNROD - Washer assembled,6x16 | Grille guard (-9408.3) |
| MS240129 | BOLT, FUEL TANK - Washer assembled,10x25 | Grille guard (-9408.3) |
| MS240179 | BOLT, FR BUMPER - Washer assembled,6x16 | Grille guard (-9408.3) |
| MS350129 | SCREW, FUEL TANK - Washer assembled,6x16 | Grille guard (-9408.3) |
| MU481233 | CLIP, GRILLE GUARD GARNISH | Grille guard (-9408.3) |
