Search › Model › N13P
N13P

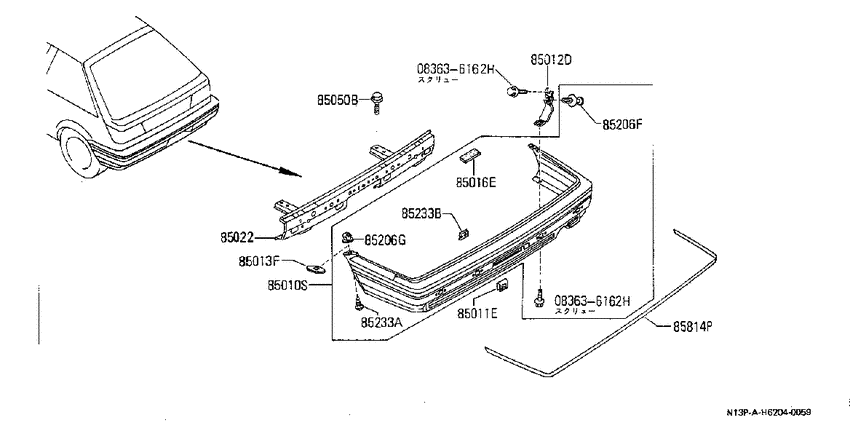

Rear bumper (1986-10-01 ~ ; 3HB) 9
| # | OEM | Part name |
|---|---|---|
| 85010 | 85022-50M25 | Fascia Kit-Rear Bumper |
| 85012 | 85270-50M00 | Bracket-Rear Bumper Side |
| 85013 | 85094-50M00 | Spacer-Rear Bumper Side |
| 85022 | 85030-50M30 | Reinforce-Inner Rear Bumper Center |
| 85022 | 85030-50M31 | Reinforce-Inner Rear Bumper Center |
| 85050 | 01125-01551 | BOLT |
| 85233 | 01461-00271 | SCREW |
| 85233 | 01241-00431 | NUT |
| 85814 | 99035-50M10 | Stripe-Accent, Rear Bumper |
| OEM | Part name | Category |
|---|---|---|
| 01125-01551 | BOLT | Rear bumper (1986-10-01 ~ ; 3HB) |
| 01241-00431 | NUT | Rear bumper (1986-10-01 ~ ; 3HB) |
| 01461-00271 | SCREW | Rear bumper (1986-10-01 ~ ; 3HB) |
| 85022-50M25 | Fascia Kit-Rear Bumper | Rear bumper (1986-10-01 ~ ; 3HB) |
| 85030-50M30 | Reinforce-Inner Rear Bumper Center | Rear bumper (1986-10-01 ~ ; 3HB) |
| 85030-50M31 | Reinforce-Inner Rear Bumper Center | Rear bumper (1986-10-01 ~ ; 3HB) |
| 85094-50M00 | Spacer-Rear Bumper Side | Rear bumper (1986-10-01 ~ ; 3HB) |
| 85270-50M00 | Bracket-Rear Bumper Side | Rear bumper (1986-10-01 ~ ; 3HB) |
| 99035-50M10 | Stripe-Accent, Rear Bumper | Rear bumper (1986-10-01 ~ ; 3HB) |
