N13P

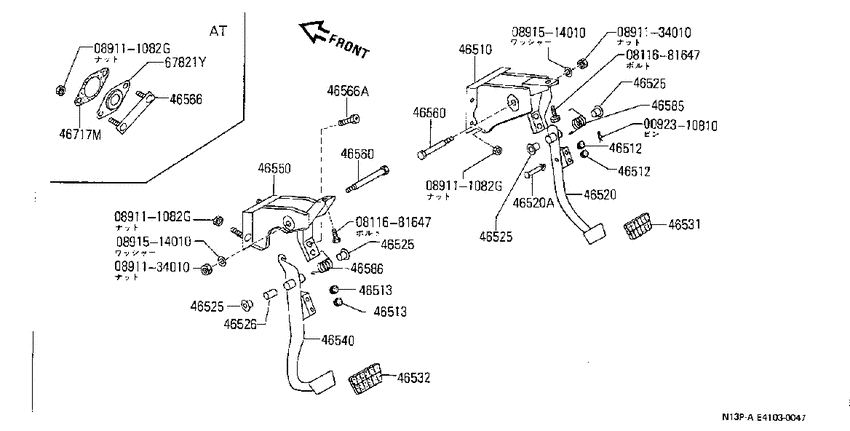

clutch & brake pedal (1986-10-01 ~ ; ALL) 11
| # | OEM | Part name |
|---|---|---|
| 46510 | 46510-50A05 | Bracket Assy-Pedal |
| 46520 | 46520-51A05 | Pedal Assy-Brake |
| 46520 | 46123-H8500 | Pin-Clevis |
| 46520 | 46123-H850A | Pin-Clevis |
| 46566 | 46565-50A00 | Plate-Fix Pedal Bracket |
| 46717 | 46567-50A00 | Packing-Master Cylinder |
| 67821 | 46566-50A00 | Cover-Clutch Master Cylinder Hole |
| 92310810 | 00923-10810 | PIN-SNAP |
| 811681647 | 08116-81647 | Bolt-hexagon |
| 891134010 | 08911-34010 | ナツト,ヘクサゴン |
| 891514010 | 08915-14010 | WASHER-LOCK |
| OEM | Part name | Category |
|---|---|---|
| 00923-10810 | PIN-SNAP | clutch & brake pedal (1986-10-01 ~ ; ALL) |
| 08116-81647 | Bolt-hexagon | clutch & brake pedal (1986-10-01 ~ ; ALL) |
| 08911-34010 | ナツト,ヘクサゴン | clutch & brake pedal (1986-10-01 ~ ; ALL) |
| 08915-14010 | WASHER-LOCK | clutch & brake pedal (1986-10-01 ~ ; ALL) |
| 46123-H8500 | Pin-Clevis | clutch & brake pedal (1986-10-01 ~ ; ALL) |
| 46123-H850A | Pin-Clevis | clutch & brake pedal (1986-10-01 ~ ; ALL) |
| 46510-50A05 | Bracket Assy-Pedal | clutch & brake pedal (1986-10-01 ~ ; ALL) |
| 46520-51A05 | Pedal Assy-Brake | clutch & brake pedal (1986-10-01 ~ ; ALL) |
| 46565-50A00 | Plate-Fix Pedal Bracket | clutch & brake pedal (1986-10-01 ~ ; ALL) |
| 46566-50A00 | Cover-Clutch Master Cylinder Hole | clutch & brake pedal (1986-10-01 ~ ; ALL) |
| 46567-50A00 | Packing-Master Cylinder | clutch & brake pedal (1986-10-01 ~ ; ALL) |
