N13

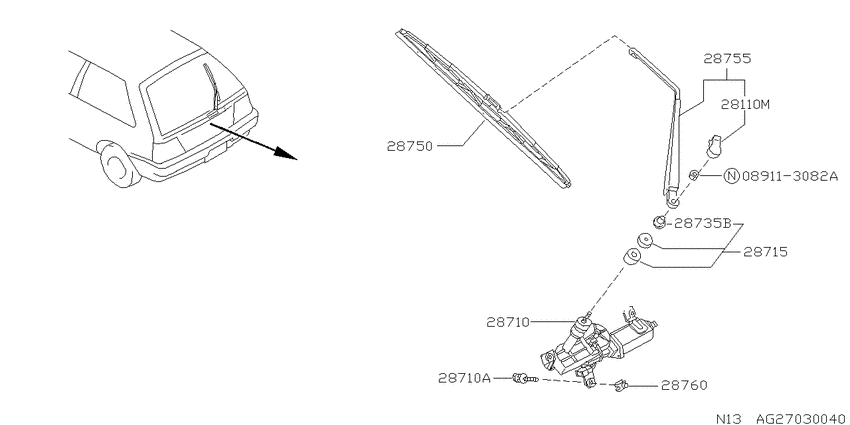

Rear window wiper (1986-05-01 ~ ; 3HB) 9
| # | OEM | Part name |
|---|---|---|
| 28110 | 28782-50M00 | Cover-Rear Wiper Arm |
| 28710 | 28710-60M00 | Motor Assy-Rear Window Wiper |
| 28710 | 01436-00671 | SCREW |
| 28715 | 28715-50M00 | Washer & Seal Kit-Pivot, B |
| 28735 | 28718-15F00 | Nut |
| 28750 | 28890-05B70 | Blade Assy-Rear Window Wiper |
| 28755 | 28780-60M00 | Arm Assy-Rear Window Wiper |
| 28755 | 28780-60M01 | Arm Assy-Rear Window Wiper |
| 28760 | 01241-00391 | NUT-ARM SET |
| OEM | Part name | Category |
|---|---|---|
| 01241-00391 | NUT-ARM SET | Rear window wiper (1986-05-01 ~ ; 3HB) |
| 01436-00671 | SCREW | Rear window wiper (1986-05-01 ~ ; 3HB) |
| 28710-60M00 | Motor Assy-Rear Window Wiper | Rear window wiper (1986-05-01 ~ ; 3HB) |
| 28715-50M00 | Washer & Seal Kit-Pivot, B | Rear window wiper (1986-05-01 ~ ; 3HB) |
| 28718-15F00 | Nut | Rear window wiper (1986-05-01 ~ ; 3HB) |
| 28780-60M00 | Arm Assy-Rear Window Wiper | Rear window wiper (1986-05-01 ~ ; 3HB) |
| 28780-60M01 | Arm Assy-Rear Window Wiper | Rear window wiper (1986-05-01 ~ ; 3HB) |
| 28782-50M00 | Cover-Rear Wiper Arm | Rear window wiper (1986-05-01 ~ ; 3HB) |
| 28890-05B70 | Blade Assy-Rear Window Wiper | Rear window wiper (1986-05-01 ~ ; 3HB) |
