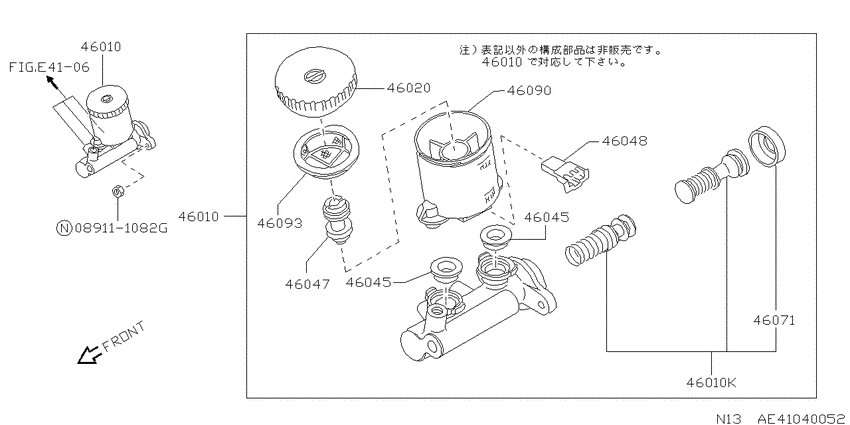

Brake master cylinder (1988-04-01 ~ ; E13S+GA15#) 8
| # | OEM | Part name |
|---|---|---|
| 46010 | 46010-65A00 | Cylinder Assy-Brake Master |
| 46010 | 46010-65A05 | Cylinder Assy-Brake Master |
| 46020 | 46020-01M00 | Cap Assy-Oil Reservoir Tank |
| 46020 | 46020-52A00 | Cap Assy-Oil Reservoir Tank |
| 46047 | 46047-04B00 | Float-Reservoir Tank |
| 46071 | 46082-04B00 | Ring-Snap |
| 46090 | 46091-68A00 | Tank-Oil Reservoir |
| 46093 | 46093-04B00 | Strainer-Brake Oil |
| OEM | Part name | Category |
|---|---|---|
| 46010-65A00 | Cylinder Assy-Brake Master | Brake master cylinder (1988-04-01 ~ ; E13S+GA15#) |
| 46010-65A05 | Cylinder Assy-Brake Master | Brake master cylinder (1988-04-01 ~ ; E13S+GA15#) |
| 46020-01M00 | Cap Assy-Oil Reservoir Tank | Brake master cylinder (1988-04-01 ~ ; E13S+GA15#) |
| 46020-52A00 | Cap Assy-Oil Reservoir Tank | Brake master cylinder (1988-04-01 ~ ; E13S+GA15#) |
| 46047-04B00 | Float-Reservoir Tank | Brake master cylinder (1988-04-01 ~ ; E13S+GA15#) |
| 46082-04B00 | Ring-Snap | Brake master cylinder (1988-04-01 ~ ; E13S+GA15#) |
| 46091-68A00 | Tank-Oil Reservoir | Brake master cylinder (1988-04-01 ~ ; E13S+GA15#) |
| 46093-04B00 | Strainer-Brake Oil | Brake master cylinder (1988-04-01 ~ ; E13S+GA15#) |
