N13

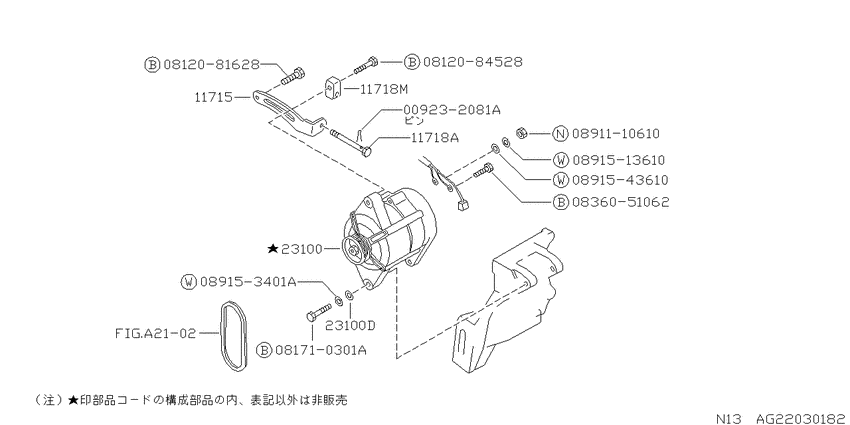

Alternator mounting (1987-09-01 ~ ; GA15#) 12
| # | OEM | Part name |
|---|---|---|
| 11715 | 11715-77A00 | Bar-Adjusting, Alternator |
| 11718 | 11916-V4311 | Bolt |
| 11718 | 11942-77A00 | Bracket-Adjust Bolt |
| 23100 | 23100-77A00 | Alternator Assy |
| 23100 | 11058-12G00 | Washer-Plain |
| 9232081 | 00923-2081A | ピン,スナツプ |
| 81710301 | 08171-0301A | Bolt-hexagon |
| 812081628 | 08120-81628 | Bolt-hexagon |
| 812084528 | 08120-84528 | Bolt-hexagon |
| 836051062 | 08360-51062 | スクリユ-,マシン |
| 891513610 | 08915-13610 | ワツシヤ-,スプリング |
| 891543610 | 08915-43610 | ワツシヤ-,プレ-ン |
| OEM | Part name | Category |
|---|---|---|
| 00923-2081A | ピン,スナツプ | Alternator mounting (1987-09-01 ~ ; GA15#) |
| 08120-81628 | Bolt-hexagon | Alternator mounting (1987-09-01 ~ ; GA15#) |
| 08120-84528 | Bolt-hexagon | Alternator mounting (1987-09-01 ~ ; GA15#) |
| 08171-0301A | Bolt-hexagon | Alternator mounting (1987-09-01 ~ ; GA15#) |
| 08360-51062 | スクリユ-,マシン | Alternator mounting (1987-09-01 ~ ; GA15#) |
| 08915-13610 | ワツシヤ-,スプリング | Alternator mounting (1987-09-01 ~ ; GA15#) |
| 08915-43610 | ワツシヤ-,プレ-ン | Alternator mounting (1987-09-01 ~ ; GA15#) |
| 11058-12G00 | Washer-Plain | Alternator mounting (1987-09-01 ~ ; GA15#) |
| 11715-77A00 | Bar-Adjusting, Alternator | Alternator mounting (1987-09-01 ~ ; GA15#) |
| 11916-V4311 | Bolt | Alternator mounting (1987-09-01 ~ ; GA15#) |
| 11942-77A00 | Bracket-Adjust Bolt | Alternator mounting (1987-09-01 ~ ; GA15#) |
| 23100-77A00 | Alternator Assy | Alternator mounting (1987-09-01 ~ ; GA15#) |
