N12

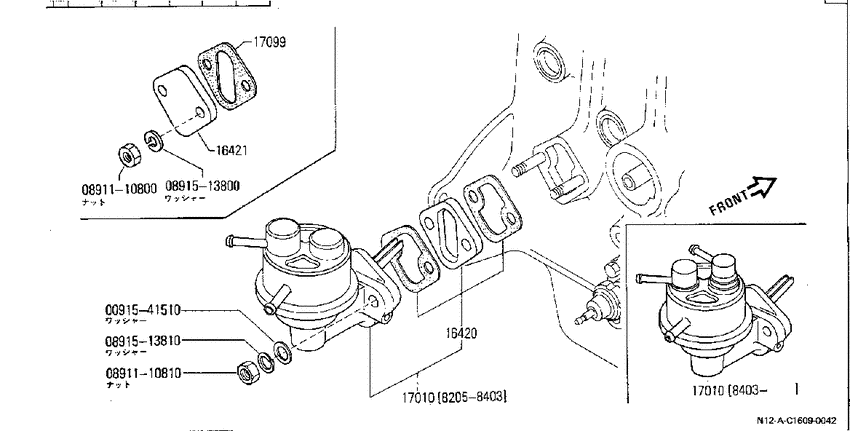

Fuel Pump (1982-05-01 ~ ; E13S+E15) 9
| # | OEM | Part name |
|---|---|---|
| 16420 | 16420-01M00 | Spacer-Fuel Pump |
| 16420 | 16420-77A00 | Spacer-Fuel Pump |
| 17010 | 17010-11M25 | Pump Assy-Fuel |
| 17010 | 17010-11M26 | Pump Assy-Fuel |
| 17010 | 17010-23M25 | Pump Assy-Fuel |
| 17010 | 17010-34A25 | Pump Assy-Fuel |
| 91541510 | 00915-41510 | WASHER-PLAIN |
| 891110810 | 08911-10810 | NUT |
| 891513810 | 08915-13810 | ワツシヤ-,スプリング |
| OEM | Part name | Category |
|---|---|---|
| 00915-41510 | WASHER-PLAIN | Fuel Pump (1982-05-01 ~ ; E13S+E15) |
| 08911-10810 | NUT | Fuel Pump (1982-05-01 ~ ; E13S+E15) |
| 08915-13810 | ワツシヤ-,スプリング | Fuel Pump (1982-05-01 ~ ; E13S+E15) |
| 16420-01M00 | Spacer-Fuel Pump | Fuel Pump (1982-05-01 ~ ; E13S+E15) |
| 16420-77A00 | Spacer-Fuel Pump | Fuel Pump (1982-05-01 ~ ; E13S+E15) |
| 17010-11M25 | Pump Assy-Fuel | Fuel Pump (1982-05-01 ~ ; E13S+E15) |
| 17010-11M26 | Pump Assy-Fuel | Fuel Pump (1982-05-01 ~ ; E13S+E15) |
| 17010-23M25 | Pump Assy-Fuel | Fuel Pump (1982-05-01 ~ ; E13S+E15) |
| 17010-34A25 | Pump Assy-Fuel | Fuel Pump (1982-05-01 ~ ; E13S+E15) |
