Search › Model › N12
N12

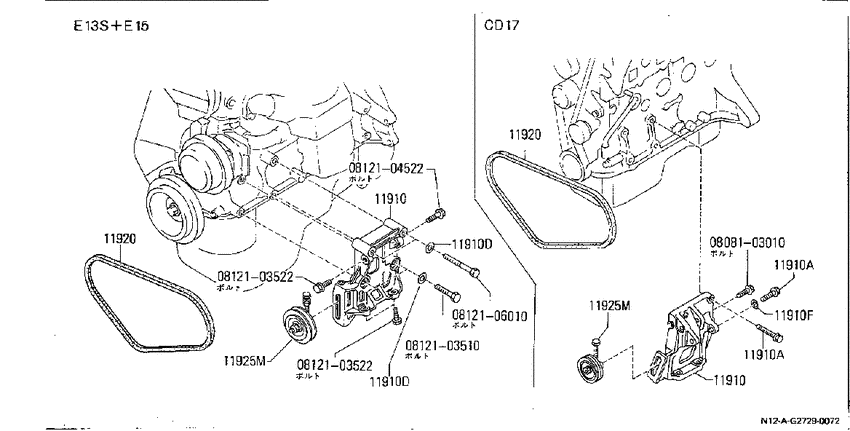

Compressor mounting & fitting (1982-05-01 ~ ; (エアコン用 ); *ALL) 8
| # | OEM | Part name |
|---|---|---|
| 11910 | 11910-01M02 | Bracket-Compressor |
| 11910 | 11910-01M03 | Bracket-Compressor |
| 11910 | 01311-00122 | WASHER-LOCK |
| 11925 | 11925-01M00 | Pulley Assy-Idler, Compressor |
| 812103510 | 08121-03510 | Bolt-hexagon |
| 812103522 | 08121-03522 | Bolt-hexagon |
| 812103522 | 08121-0351C | Bolt-hexagon |
| 812106010 | 08121-06010 | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 01311-00122 | WASHER-LOCK | Compressor mounting & fitting (1982-05-01 ~ ; (エアコン用 ); *ALL) |
| 08121-03510 | Bolt-hexagon | Compressor mounting & fitting (1982-05-01 ~ ; (エアコン用 ); *ALL) |
| 08121-0351C | Bolt-hexagon | Compressor mounting & fitting (1982-05-01 ~ ; (エアコン用 ); *ALL) |
| 08121-03522 | Bolt-hexagon | Compressor mounting & fitting (1982-05-01 ~ ; (エアコン用 ); *ALL) |
| 08121-06010 | Bolt-hexagon | Compressor mounting & fitting (1982-05-01 ~ ; (エアコン用 ); *ALL) |
| 11910-01M02 | Bracket-Compressor | Compressor mounting & fitting (1982-05-01 ~ ; (エアコン用 ); *ALL) |
| 11910-01M03 | Bracket-Compressor | Compressor mounting & fitting (1982-05-01 ~ ; (エアコン用 ); *ALL) |
| 11925-01M00 | Pulley Assy-Idler, Compressor | Compressor mounting & fitting (1982-05-01 ~ ; (エアコン用 ); *ALL) |
