Search › Model › MZ21
MZ21

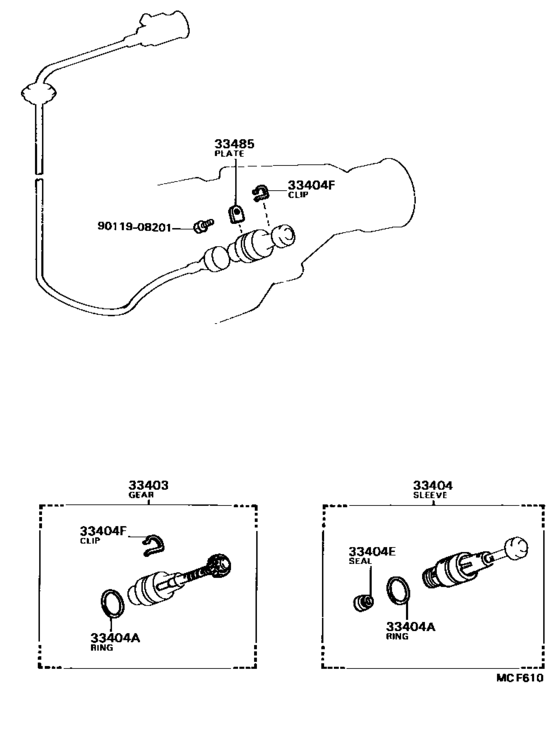

Speedometer Driven Gear (Mtm) ([01.1988 - ] (8801- )5F) 9
| # | OEM | Part name |
|---|---|---|
| 33403 | 33403-29115 | Gear Sub-Assy, Speedometer Driven (Mtm) |
| 33404 | 33404-22010 | Sleeve Sub-Assy, Speedometer Shaft (Mtm) |
| 33404 | 96711-24030 | Ring,o (For Speedometer Driven Hole Cover) |
| 33404 | 90310-09001 | Seal, Oil (For Mtm Speedometer Shaft Sleeve) |
| 33404 | 90468-12005 | Clip (For Mtm Speedometer Shaft Sleeve) |
| 33485 | 33485-30020 | Plate, Speedometer Sleeve Lock (For Atm) |
| 9011908201 | 90119-08201 | Bolt (for Transmission Control Cable Bracket) |
| 9011908201 | 91611-60814 | Bolt |
| 9011908201 | 90119-A0310 | Bolt (For Transmission Control Cable Bracket) |
| OEM | Part name | Category |
|---|---|---|
| 33403-29115 | Gear Sub-Assy, Speedometer Driven (Mtm) | Speedometer Driven Gear (Mtm) ([01.1988 - ] (8801- )5F) |
| 33404-22010 | Sleeve Sub-Assy, Speedometer Shaft (Mtm) | Speedometer Driven Gear (Mtm) ([01.1988 - ] (8801- )5F) |
| 33485-30020 | Plate, Speedometer Sleeve Lock (For Atm) | Speedometer Driven Gear (Mtm) ([01.1988 - ] (8801- )5F) |
| 90119-08201 | Bolt (for Transmission Control Cable Bracket) | Speedometer Driven Gear (Mtm) ([01.1988 - ] (8801- )5F) |
| 90119-A0310 | Bolt (For Transmission Control Cable Bracket) | Speedometer Driven Gear (Mtm) ([01.1988 - ] (8801- )5F) |
| 90310-09001 | Seal, Oil (For Mtm Speedometer Shaft Sleeve) | Speedometer Driven Gear (Mtm) ([01.1988 - ] (8801- )5F) |
| 90468-12005 | Clip (For Mtm Speedometer Shaft Sleeve) | Speedometer Driven Gear (Mtm) ([01.1988 - ] (8801- )5F) |
| 91611-60814 | Bolt | Speedometer Driven Gear (Mtm) ([01.1988 - ] (8801- )5F) |
| 96711-24030 | Ring,o (For Speedometer Driven Hole Cover) | Speedometer Driven Gear (Mtm) ([01.1988 - ] (8801- )5F) |
