Search › Model › MZ20

MZ20

Toyota SOARER · 1986 · 5,588 parts · 194 categories

5,588 items

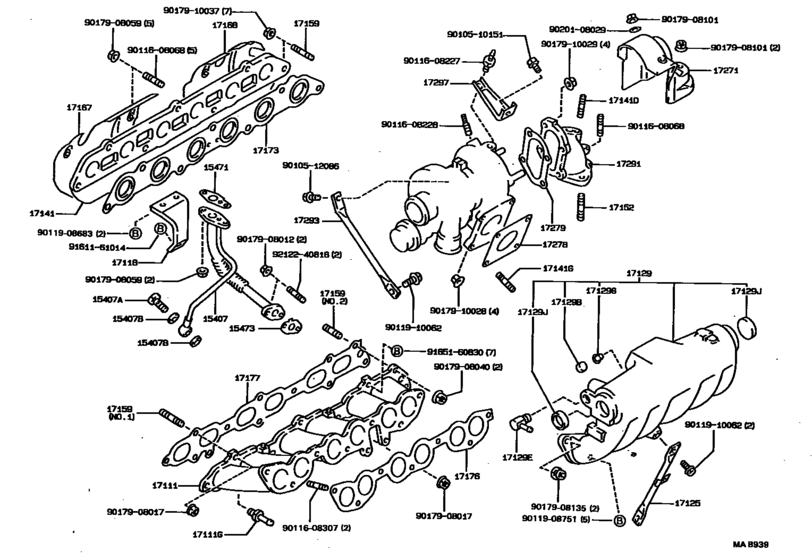

Manifold ([01.1988 - ] (8801- )7MGTEU) 96

#	OEM	Part name
4175	04175-42010	Gasket Kit, Turbocharger
4175	04175-42011	Gasket Kit, Turbocharger
4176	04176-58010	Seal Kit, Turbocharger
4176	04176-58011	Seal Kit, Turbocharger
15407	15407-42010	Pipe Sub-Assy, Turbo Oil Inlet
15407	90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)
15407	90430-12005	Gasket(For Water Hole)
15407	90401-12021	Bolt, Union(For Turbo Oil Inlet Pipe)
15471	15471-54010	Gasket, Turbo Oil Inlet
15471	15471-58010	Gasket, Turbo Oil Inlet
15471	15471-54020	Gasket, Turbo Oil Inlet
15473	15473-41010	Gasket, Oil Hole Cover Plate
15473	15473-42010	Gasket, Turbo Oil Outlet, No.2
17021	17021-42010	Housing Sub-Assy, Bearing
17021	90116-08158	Bolt, Stud(For Bearing Housing)
17021	90116-06048	Bolt, Stud(For Oil Pan)
17021	90521-99023	Ring, Hole Snap(For Bearing Housing)
17111	17111-42020	Manifold, Intake
17111	90404-51096	Union(For Intake Manifold Water)
17118	17118-42020	Stay, Manifold
17118	17118-42010	Stay, Manifold
17125	17125-42020	Stay, Surge Tank, No.1
17125	17125-42010	Stay, Surge Tank, No.1
17129	17109-42020	Tank, Intake Air Surge
17129	96411-41800	Plug, Tight, No.1
17129	90404-54033	Union, No.3
17129	90404-54039	Union, No.3
17129	25619-43010	Tube, Egr Inlet
17129	96411-44000	Plug, Tight, No.1
17129	96411-45000	Plug, Tight, No.1(For Cam Housing)
17141	17141-42010	Manifold, Exhaust
17141	90116-08128	Bolt, Stud(For Manifold Stay)
17141	90116-10127	Bolt, Stud(For Turbocharger)
17141	90116-10125	Bolt, Stud(For Turbine Housing)
17152	90116-10058	Bolt, Stud(For Manifold Extension)
17152	90116-10146	Bolt, Stud(For Manifold To Exhaust Pipe)
17159	90116-08178	Bolt, Stud(For Manifold To Cylinder Head)
17159	90116-08230	Bolt, Stud(For Manifold To Cylinder Head)
17159	90116-10025	Bolt, Stud(For Manifold To Cylinder Head)
17167	17167-42040	Insulator, Exhaust Manifold Heat, No.1
17167	17167-42010	Insulator, Exhaust Manifold Heat, No.1
17168	17168-42030	Insulator, Exhaust Manifold Heat, No.2
17168	17168-42010	Insulator, Exhaust Manifold Heat, No.2
17173	17173-42010	Gasket, Exhaust Manifold To Head
17176	17176-42010	Gasket, Air Surge Tank To Intake Manifold
17176	17176-42020	Gasket, Air Surge Tank To Intake Manifold
17177	17177-42010	Gasket, Intake Manifold To Head, No.1
17177	17177-42020	Gasket, Intake Manifold To Head, No.1
17201	17201-42020	Turbocharger Sub-Assy
17224	17224-42020	Housing, Compressor
17224	90404-51041	Union(For Compressor Housing)
17229	17229-58010	Band, V
17239	17239-58010	Clamp, V, No.2
17271	17271-42020	Insulator, Turbo, No.1
17271	17271-42010	Insulator, Turbo, No.1
17278	17278-42010	Gasket, Turbo To Exhaust Manifold
17279	17279-42010	Gasket, Turbine Outlet Elbow
17291	17291-42010	Elbow, Turbine Outlet
17293	17293-42011	Stay, Turbocharger
17293	17293-42010	Stay, Turbocharger
17294	17294-28010	Hose, Actuator
17294	96132-30600	Clip(For Actuator Hose)
17294	96132-51100	Clip (For Hose)
17297	17297-42010	Stay, Turbocharger, No.2
91651	91651-B0620	New Genuine Part
9010510151	90105-10151	New Genuine Part
9010510151	91512-81016	New Genuine Part
9010512086	90105-12086	Bolt, Hexagon(For Front Disc Brake Caliper)
9010512086	91512-81220	Bolt, Hexagon(For Front Disc Brake Caliper)
9011608068	90116-08068	Bolt, Stud
9011608227	90116-08227	New Genuine Part
9011608228	90116-08228	New Genuine Part
9011608307	90116-08307	New Genuine Part
9011908683	90119-08683	New Genuine Part
9011908751	90119-08751	Bolt(For Head To Camshaft Bearing Cap)
9011910062	90119-10062	New Genuine Part
9011910062	90119-10640	New Genuine Part
9017908012	90179-08012	NUT
9017908017	90179-08017	NUT
9017908040	90179-08040	Nut, Cap(For Cylinder Head Cover)
9017908059	90179-08059	Nut
9017908059	90179-08101	NUT
9017908135	90179-08135	New Genuine Part
9017908135	90179-08153	NUT
9017910028	90179-10028	Nut, Exhaust Pipe Set Stud Bolt
9017910029	90179-10029	Nut(for Front Stabilizer Bar)
9017910029	48284-0W060	Nut, Front Spring Center Bolt
9017910037	90179-10037	NUT
9017910037	90179-10128	NUT
9020108029	90201-08029	Washer, Plate(For Steering Tilt Lever)
9025403013	90254-03013	New Genuine Part
9052304002	90523-04002	RING
9161161014	91611-61014	New Genuine Part
9161161014	91612-B1014	BOLT WWASHER
9165160830	91651-60830	Bolt (For Transfer Power Take-Off Cover)
9212240818	92122-40818	Bolt, Stud(For Oil Pan)

OEM	Part name	Category
04175-42010	Gasket Kit, Turbocharger	Manifold ([01.1988 - ] (8801- )7MGTEU)
04175-42011	Gasket Kit, Turbocharger	Manifold ([01.1988 - ] (8801- )7MGTEU)
04176-58010	Seal Kit, Turbocharger	Manifold ([01.1988 - ] (8801- )7MGTEU)
04176-58011	Seal Kit, Turbocharger	Manifold ([01.1988 - ] (8801- )7MGTEU)
15407-42010	Pipe Sub-Assy, Turbo Oil Inlet	Manifold ([01.1988 - ] (8801- )7MGTEU)
15471-54010	Gasket, Turbo Oil Inlet	Manifold ([01.1988 - ] (8801- )7MGTEU)
15471-54020	Gasket, Turbo Oil Inlet	Manifold ([01.1988 - ] (8801- )7MGTEU)
15471-58010	Gasket, Turbo Oil Inlet	Manifold ([01.1988 - ] (8801- )7MGTEU)
15473-41010	Gasket, Oil Hole Cover Plate	Manifold ([01.1988 - ] (8801- )7MGTEU)
15473-42010	Gasket, Turbo Oil Outlet, No.2	Manifold ([01.1988 - ] (8801- )7MGTEU)
17021-42010	Housing Sub-Assy, Bearing	Manifold ([01.1988 - ] (8801- )7MGTEU)
17109-42020	Tank, Intake Air Surge	Manifold ([01.1988 - ] (8801- )7MGTEU)
17111-42020	Manifold, Intake	Manifold ([01.1988 - ] (8801- )7MGTEU)
17118-42010	Stay, Manifold	Manifold ([01.1988 - ] (8801- )7MGTEU)
17118-42020	Stay, Manifold	Manifold ([01.1988 - ] (8801- )7MGTEU)
17125-42010	Stay, Surge Tank, No.1	Manifold ([01.1988 - ] (8801- )7MGTEU)
17125-42020	Stay, Surge Tank, No.1	Manifold ([01.1988 - ] (8801- )7MGTEU)
17141-42010	Manifold, Exhaust	Manifold ([01.1988 - ] (8801- )7MGTEU)
17167-42010	Insulator, Exhaust Manifold Heat, No.1	Manifold ([01.1988 - ] (8801- )7MGTEU)
17167-42040	Insulator, Exhaust Manifold Heat, No.1	Manifold ([01.1988 - ] (8801- )7MGTEU)
17168-42010	Insulator, Exhaust Manifold Heat, No.2	Manifold ([01.1988 - ] (8801- )7MGTEU)
17168-42030	Insulator, Exhaust Manifold Heat, No.2	Manifold ([01.1988 - ] (8801- )7MGTEU)
17173-42010	Gasket, Exhaust Manifold To Head	Manifold ([01.1988 - ] (8801- )7MGTEU)
17176-42010	Gasket, Air Surge Tank To Intake Manifold	Manifold ([01.1988 - ] (8801- )7MGTEU)
17176-42020	Gasket, Air Surge Tank To Intake Manifold	Manifold ([01.1988 - ] (8801- )7MGTEU)
17177-42010	Gasket, Intake Manifold To Head, No.1	Manifold ([01.1988 - ] (8801- )7MGTEU)
17177-42020	Gasket, Intake Manifold To Head, No.1	Manifold ([01.1988 - ] (8801- )7MGTEU)
17201-42020	Turbocharger Sub-Assy	Manifold ([01.1988 - ] (8801- )7MGTEU)
17224-42020	Housing, Compressor	Manifold ([01.1988 - ] (8801- )7MGTEU)
17229-58010	Band, V	Manifold ([01.1988 - ] (8801- )7MGTEU)
17239-58010	Clamp, V, No.2	Manifold ([01.1988 - ] (8801- )7MGTEU)
17271-42010	Insulator, Turbo, No.1	Manifold ([01.1988 - ] (8801- )7MGTEU)
17271-42020	Insulator, Turbo, No.1	Manifold ([01.1988 - ] (8801- )7MGTEU)
17278-42010	Gasket, Turbo To Exhaust Manifold	Manifold ([01.1988 - ] (8801- )7MGTEU)
17279-42010	Gasket, Turbine Outlet Elbow	Manifold ([01.1988 - ] (8801- )7MGTEU)
17291-42010	Elbow, Turbine Outlet	Manifold ([01.1988 - ] (8801- )7MGTEU)
17293-42010	Stay, Turbocharger	Manifold ([01.1988 - ] (8801- )7MGTEU)
17293-42011	Stay, Turbocharger	Manifold ([01.1988 - ] (8801- )7MGTEU)
17294-28010	Hose, Actuator	Manifold ([01.1988 - ] (8801- )7MGTEU)
17297-42010	Stay, Turbocharger, No.2	Manifold ([01.1988 - ] (8801- )7MGTEU)
25619-43010	Tube, Egr Inlet	Manifold ([01.1988 - ] (8801- )7MGTEU)
48284-0W060	Nut, Front Spring Center Bolt	Manifold ([01.1988 - ] (8801- )7MGTEU)
90105-10151	New Genuine Part	Manifold ([01.1988 - ] (8801- )7MGTEU)
90105-12086	Bolt, Hexagon(For Front Disc Brake Caliper)	Manifold ([01.1988 - ] (8801- )7MGTEU)
90116-06048	Bolt, Stud(For Oil Pan)	Manifold ([01.1988 - ] (8801- )7MGTEU)
90116-08068	Bolt, Stud	Manifold ([01.1988 - ] (8801- )7MGTEU)
90116-08128	Bolt, Stud(For Manifold Stay)	Manifold ([01.1988 - ] (8801- )7MGTEU)
90116-08158	Bolt, Stud(For Bearing Housing)	Manifold ([01.1988 - ] (8801- )7MGTEU)
90116-08178	Bolt, Stud(For Manifold To Cylinder Head)	Manifold ([01.1988 - ] (8801- )7MGTEU)
90116-08227	New Genuine Part	Manifold ([01.1988 - ] (8801- )7MGTEU)
90116-08228	New Genuine Part	Manifold ([01.1988 - ] (8801- )7MGTEU)
90116-08230	Bolt, Stud(For Manifold To Cylinder Head)	Manifold ([01.1988 - ] (8801- )7MGTEU)
90116-08307	New Genuine Part	Manifold ([01.1988 - ] (8801- )7MGTEU)
90116-10025	Bolt, Stud(For Manifold To Cylinder Head)	Manifold ([01.1988 - ] (8801- )7MGTEU)
90116-10058	Bolt, Stud(For Manifold Extension)	Manifold ([01.1988 - ] (8801- )7MGTEU)
90116-10125	Bolt, Stud(For Turbine Housing)	Manifold ([01.1988 - ] (8801- )7MGTEU)
90116-10127	Bolt, Stud(For Turbocharger)	Manifold ([01.1988 - ] (8801- )7MGTEU)
90116-10146	Bolt, Stud(For Manifold To Exhaust Pipe)	Manifold ([01.1988 - ] (8801- )7MGTEU)
90119-08683	New Genuine Part	Manifold ([01.1988 - ] (8801- )7MGTEU)
90119-08751	Bolt(For Head To Camshaft Bearing Cap)	Manifold ([01.1988 - ] (8801- )7MGTEU)
90119-10062	New Genuine Part	Manifold ([01.1988 - ] (8801- )7MGTEU)
90119-10640	New Genuine Part	Manifold ([01.1988 - ] (8801- )7MGTEU)
90179-08012	NUT	Manifold ([01.1988 - ] (8801- )7MGTEU)
90179-08017	NUT	Manifold ([01.1988 - ] (8801- )7MGTEU)
90179-08040	Nut, Cap(For Cylinder Head Cover)	Manifold ([01.1988 - ] (8801- )7MGTEU)
90179-08059	Nut	Manifold ([01.1988 - ] (8801- )7MGTEU)
90179-08101	NUT	Manifold ([01.1988 - ] (8801- )7MGTEU)
90179-08135	New Genuine Part	Manifold ([01.1988 - ] (8801- )7MGTEU)
90179-08153	NUT	Manifold ([01.1988 - ] (8801- )7MGTEU)
90179-10028	Nut, Exhaust Pipe Set Stud Bolt	Manifold ([01.1988 - ] (8801- )7MGTEU)
90179-10029	Nut(for Front Stabilizer Bar)	Manifold ([01.1988 - ] (8801- )7MGTEU)
90179-10037	NUT	Manifold ([01.1988 - ] (8801- )7MGTEU)
90179-10128	NUT	Manifold ([01.1988 - ] (8801- )7MGTEU)
90201-08029	Washer, Plate(For Steering Tilt Lever)	Manifold ([01.1988 - ] (8801- )7MGTEU)
90254-03013	New Genuine Part	Manifold ([01.1988 - ] (8801- )7MGTEU)
90401-12021	Bolt, Union(For Turbo Oil Inlet Pipe)	Manifold ([01.1988 - ] (8801- )7MGTEU)
90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)	Manifold ([01.1988 - ] (8801- )7MGTEU)
90404-51041	Union(For Compressor Housing)	Manifold ([01.1988 - ] (8801- )7MGTEU)
90404-51096	Union(For Intake Manifold Water)	Manifold ([01.1988 - ] (8801- )7MGTEU)
90404-54033	Union, No.3	Manifold ([01.1988 - ] (8801- )7MGTEU)
90404-54039	Union, No.3	Manifold ([01.1988 - ] (8801- )7MGTEU)
90430-12005	Gasket(For Water Hole)	Manifold ([01.1988 - ] (8801- )7MGTEU)
90521-99023	Ring, Hole Snap(For Bearing Housing)	Manifold ([01.1988 - ] (8801- )7MGTEU)
90523-04002	RING	Manifold ([01.1988 - ] (8801- )7MGTEU)
91512-81016	New Genuine Part	Manifold ([01.1988 - ] (8801- )7MGTEU)
91512-81220	Bolt, Hexagon(For Front Disc Brake Caliper)	Manifold ([01.1988 - ] (8801- )7MGTEU)
91611-61014	New Genuine Part	Manifold ([01.1988 - ] (8801- )7MGTEU)
91612-B1014	BOLT WWASHER	Manifold ([01.1988 - ] (8801- )7MGTEU)
91651-60830	Bolt (For Transfer Power Take-Off Cover)	Manifold ([01.1988 - ] (8801- )7MGTEU)
91651-B0620	New Genuine Part	Manifold ([01.1988 - ] (8801- )7MGTEU)
92122-40818	Bolt, Stud(For Oil Pan)	Manifold ([01.1988 - ] (8801- )7MGTEU)
96132-30600	Clip(For Actuator Hose)	Manifold ([01.1988 - ] (8801- )7MGTEU)
96132-51100	Clip (For Hose)	Manifold ([01.1988 - ] (8801- )7MGTEU)
96411-41800	Plug, Tight, No.1	Manifold ([01.1988 - ] (8801- )7MGTEU)
96411-44000	Plug, Tight, No.1	Manifold ([01.1988 - ] (8801- )7MGTEU)
96411-45000	Plug, Tight, No.1(For Cam Housing)	Manifold ([01.1988 - ] (8801- )7MGTEU)
