MZ20

Toyota SOARER · 1986 · 5,588 parts · 194 categories

5,588 items

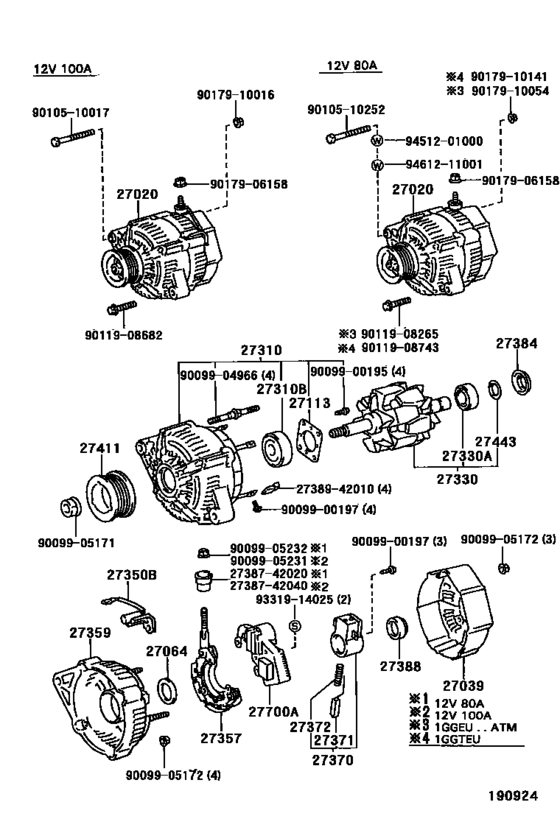

Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC) 55

#	OEM	Part name
27020	27060-42021	Alternator Assy
27020	27060-42020	Alternator Assy
27039	27039-42020	Cover, Alternator Rear End
27039	27039-50080	Cover, Alternator Rear End
27064	27064-42010	Seal, Alternator Plate
27113	27312-42010	Plate, Bearing Retainer, Alternator
27310	27310-42040	Frame Assy, Drive End, Alternator
27310	27310-42080	Frame Assy, Drive End, Alternator
27310	90099-10160	Bearing(For Alternator Drive End Frame)
27310	90099-10219	Bearing(For Alternator Drive End Frame)
27310	27310-42020	Frame Assy, Drive End, Alternator
27330	27330-42020	Rotor Assy, Alternator
27330	27330-28050	Rotor Assy, Alternator
27330	90099-10140	Bearing(For Alternator Rotor)
27350	90099-52093	Condenser, Alternator
27357	27357-42020	Holder, Alternator, W/rectifier
27357	27357-75060	Holder, Alternator, W/rectifier
27359	27359-42020	Frame, Alternator Rectifier End
27370	27370-42010	Holder Assy, Alternator Brush
27370	27370-75060	Holder Assy, Alternator Brush
27371	27371-63020	Brush, Alternator
27371	27371-70300	Brush, Alternator
27372	27372-63020	Spring, Alternator Brush
27372	27372-87501	Spring, Alternator Brush
27384	27384-42010	Washer
27384	27384-50030	Holder, Alternator Brush, A
27388	27388-42010	Cover, Alternator Brush
27411	27411-74070	Pulley, Alternator
27411	27411-42020	Pulley, Alternator
27443	27443-63020	Cover, Alternator Bearing
27700	27700-16010	Regulator Assy, Generator
27700	27700-66020	Regulator Assy, Generator
2738742020	27387-42020	Insulator, Terminal
2738742040	27387-42040	Insulator, Terminal
2738942010	27389-42010	Insulator, Terminal
9009900195	90099-00195	New Genuine Part
9009900197	90099-00197	Screw
9009904966	90099-04966	Bearing(for Alternator Rotor)
9009905171	90099-05171	Nut(For Alternator Pulley)
9009905172	90099-05172	New Genuine Part
9009905231	90099-05231	New Genuine Part
9009905232	90099-05232	New Genuine Part
9010510017	90105-10017	Bolt
9010510252	90105-10252	New Genuine Part
9011908265	90119-08265	New Genuine Part
9011908265	90119-08743	New Genuine Part
9011908682	90119-08682	New Genuine Part
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9017910016	90179-10016	Nut(For Counter Gear Shaft)
9017910016	90179-10132	Nut
9017910054	90179-10054	Nut, No.1 (For Center Support Bearing)
9017910141	90179-10141	Nut(For Counter Gear Shaft)
9331914025	93319-14025	Screw W Washer
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)
9461211001	94612-11001	Washer, Plate (For Center Support Bearing Housing)

OEM	Part name	Category
27039-42020	Cover, Alternator Rear End	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
27039-50080	Cover, Alternator Rear End	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
27060-42020	Alternator Assy	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
27060-42021	Alternator Assy	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
27064-42010	Seal, Alternator Plate	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
27310-42020	Frame Assy, Drive End, Alternator	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
27310-42040	Frame Assy, Drive End, Alternator	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
27310-42080	Frame Assy, Drive End, Alternator	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
27312-42010	Plate, Bearing Retainer, Alternator	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
27330-28050	Rotor Assy, Alternator	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
27330-42020	Rotor Assy, Alternator	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
27357-42020	Holder, Alternator, W/rectifier	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
27357-75060	Holder, Alternator, W/rectifier	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
27359-42020	Frame, Alternator Rectifier End	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
27370-42010	Holder Assy, Alternator Brush	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
27370-75060	Holder Assy, Alternator Brush	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
27371-63020	Brush, Alternator	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
27371-70300	Brush, Alternator	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
27372-63020	Spring, Alternator Brush	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
27372-87501	Spring, Alternator Brush	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
27384-42010	Washer	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
27384-50030	Holder, Alternator Brush, A	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
27387-42020	Insulator, Terminal	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
27387-42040	Insulator, Terminal	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
27388-42010	Cover, Alternator Brush	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
27389-42010	Insulator, Terminal	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
27411-42020	Pulley, Alternator	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
27411-74070	Pulley, Alternator	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
27443-63020	Cover, Alternator Bearing	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
27700-16010	Regulator Assy, Generator	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
27700-66020	Regulator Assy, Generator	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
90099-00195	New Genuine Part	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
90099-00197	Screw	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
90099-04966	Bearing(for Alternator Rotor)	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
90099-05171	Nut(For Alternator Pulley)	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
90099-05172	New Genuine Part	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
90099-05231	New Genuine Part	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
90099-05232	New Genuine Part	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
90099-10140	Bearing(For Alternator Rotor)	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
90099-10160	Bearing(For Alternator Drive End Frame)	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
90099-10219	Bearing(For Alternator Drive End Frame)	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
90099-52093	Condenser, Alternator	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
90105-10017	Bolt	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
90105-10252	New Genuine Part	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
90119-08265	New Genuine Part	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
90119-08682	New Genuine Part	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
90119-08743	New Genuine Part	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
90179-10016	Nut(For Counter Gear Shaft)	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
90179-10054	Nut, No.1 (For Center Support Bearing)	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
90179-10132	Nut	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
90179-10141	Nut(For Counter Gear Shaft)	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
93319-14025	Screw W Washer	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
94612-11001	Washer, Plate (For Center Support Bearing Housing)	Alternator ([01.1988 - ] 12V 80A,100A (8801- )1GGEU..4FC ; (8801- )1GGTEU,7MGTEU ; (8901- )1GFE..4FC)
