Search › Model › MZ12
MZ12

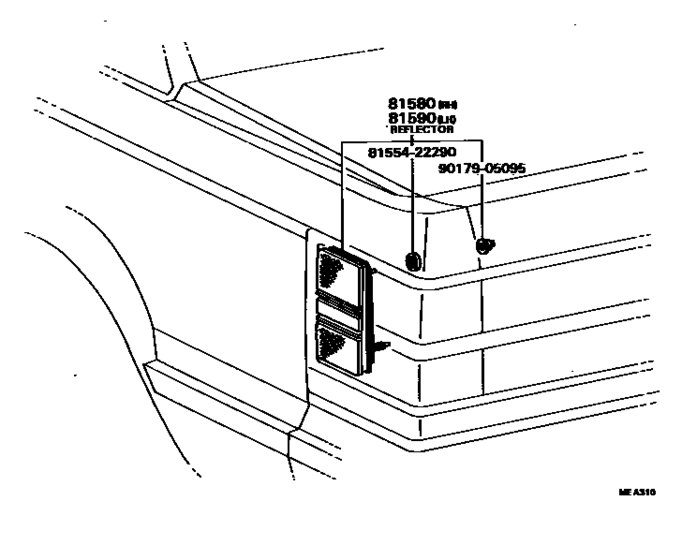

Reflex Reflector ([02.1981 - ] (8102- )) 7
| # | OEM | Part name |
|---|---|---|
| 81580 | 81580-29025 | Reflector Assy, Reflex Side, Rh |
| 81580 | 81580-24020 | Reflector Assy, Reflex Side, Rh |
| 81590 | 81590-29025 | Reflector Assy, Reflex Side, Lh |
| 81590 | 81590-24020 | Reflector Assy, Reflex Side, Lh |
| 8155422290 | 81554-22290 | Gasket, Rear Combination Lamp Body, Rh |
| 9017905095 | 90179-05095 | NUT |
| 9017905095 | 90179-05004 | NUT |
| OEM | Part name | Category |
|---|---|---|
| 81554-22290 | Gasket, Rear Combination Lamp Body, Rh | Reflex Reflector ([02.1981 - ] (8102- )) |
| 81580-24020 | Reflector Assy, Reflex Side, Rh | Reflex Reflector ([02.1981 - ] (8102- )) |
| 81580-29025 | Reflector Assy, Reflex Side, Rh | Reflex Reflector ([02.1981 - ] (8102- )) |
| 81590-24020 | Reflector Assy, Reflex Side, Lh | Reflex Reflector ([02.1981 - ] (8102- )) |
| 81590-29025 | Reflector Assy, Reflex Side, Lh | Reflex Reflector ([02.1981 - ] (8102- )) |
| 90179-05004 | NUT | Reflex Reflector ([02.1981 - ] (8102- )) |
| 90179-05095 | NUT | Reflex Reflector ([02.1981 - ] (8102- )) |
