Search › Model › MX83
MX83

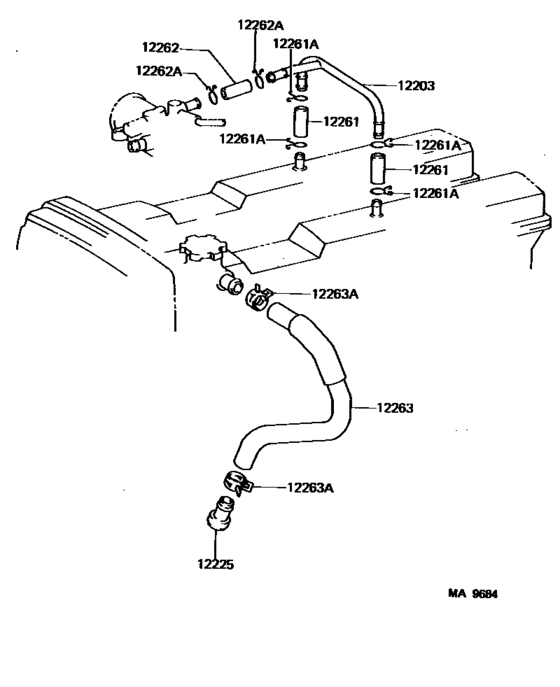

Ventilation Hose ([08.1989 - ] (8908- )7MGE) 7
| # | OEM | Part name |
|---|---|---|
| 12203 | 12229-42010 | Pipe Sub-Assy, Ventilation |
| 12225 | 12225-42010 | Flange, Ventilation |
| 12261 | 12261-42010 | Hose, Ventilation |
| 12261 | 90467-16035 | Clip Or Clamp(For Ventilation Hose) |
| 12263 | 12263-42010 | Hose, Ventilation, No.3 |
| 12263 | 96134-42600 | Clip(For Ventilation Hose) |
| 12263 | 96134-52600 | Clip Or Clamp(For Ventilation Hose) |
| OEM | Part name | Category |
|---|---|---|
| 12225-42010 | Flange, Ventilation | Ventilation Hose ([08.1989 - ] (8908- )7MGE) |
| 12229-42010 | Pipe Sub-Assy, Ventilation | Ventilation Hose ([08.1989 - ] (8908- )7MGE) |
| 12261-42010 | Hose, Ventilation | Ventilation Hose ([08.1989 - ] (8908- )7MGE) |
| 12263-42010 | Hose, Ventilation, No.3 | Ventilation Hose ([08.1989 - ] (8908- )7MGE) |
| 90467-16035 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([08.1989 - ] (8908- )7MGE) |
| 96134-42600 | Clip(For Ventilation Hose) | Ventilation Hose ([08.1989 - ] (8908- )7MGE) |
| 96134-52600 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([08.1989 - ] (8908- )7MGE) |
