Search › Model › MX83

MX83

Toyota CHASER · 1989 · 6,020 parts · 191 categories

6,020 items

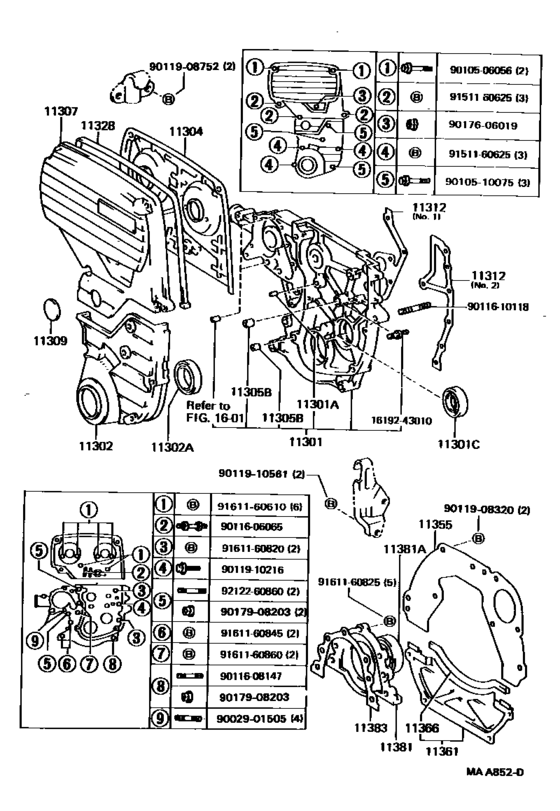

Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE) 50

#	OEM	Part name
11301	11301-42010	Case Sub-Assy, Timing Gear
11301	90250-08074	Pin, Straight(For Timing Gear Case)
11301	90311-42003	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11301	90311-42026	Seal, Oil(For Timing Gear Case Or Timing Chain Case)
11302	11321-42020	Cover Sub-Assy, Timing Chain Or Belt
11302	90311-52003	Seal, Oil(For Timing Chain Or Belt Cover)
11304	11322-42010	Cover, Timing Chain Or Belt, No.2
11305	90253-11001	Pin, Ring(For Camshaft Bearing Cap Setting)
11305	90253-13013	Pin, Ring(For Oil Seal Retainer, No.2)
11307	11304-42010	Cover, Sub-Assy, Timing Belt, No.3
11309	11325-42010	Cover Sub-Assy, Timing Belt, No.4
11312	11312-42010	Gasket, Front End Plate
11312	11312-43010	Gasket, Front End Plate
11312	11313-42010	Gasket, Front End Plate
11312	11313-42020	Gasket, Front End Plate
11328	11328-42010	Gasket, Timing Gear Or Chain Cover
11355	11355-41010	Plate, Rear End
11361	11361-45010	Cover, Flywheel Housing Under
11366	31131-30010	Seal, Flywheel Housing Under Cover Dust
11381	11381-43010	Retainer, Engine Rear Oil Seal
11381	90311-80001	Seal, Engine Rear Oil
11383	11383-41010	Gasket, Engine Rear Oil Seal Retainer
1619243010	16192-43010	New Genuine Part
9002901505	90029-01505	New Genuine Part
9010506056	90105-06056	New Genuine Part
9010506056	91511-60635	Bolt
9010510075	90105-10075	Bolt(For Alternator)
9011606065	90116-06065	New Genuine Part
9011608147	90116-08147	Bolt, Stud(For Timing Chain Cover Set)
9011610118	90116-10118	Bolt, Stud(For Alternator Bracket)
9011908320	90119-08320	Screw Or Bolt(for Valve Rocker Shaft Lock)
9011908320	91611-B0816	Bolt
9011908752	90119-08752	New Genuine Part
9011910216	90119-10216	Bolt (For Control Shaft Cover)
9011910561	90119-10561	New Genuine Part
9017606019	90176-06019	Nut (For Rear Wiper Arm Setting)
9017908203	90179-08203	Nut
9017908203	90179-08153	NUT
9151160625	91511-60625	Bolt(For Cylinder Head Cover)
9151160625	91511-J0625	Bolt(For Cylinder Head Cover)
9161160610	91611-60610	Bolt (For Transfer Oil Receiver No.1)
9161160610	91611-B0610	Bolt (For Transfer Oil Receiver No.1)
9161160820	91611-60820	Bolt(For Transaxle & Engine Setting)
9161160820	91611-G0820	Bolt
9161160825	91611-60825	Bolt(For Head To Camshaft Bearing Cap)
9161160825	91611-B0825	Bolt(For Clutch Release Cylinder Setting)
9161160845	91611-60845	Bolt(for Clutch Release Cylinder Setting)
9161160845	91611-B0845	Bolt(for Clutch Release Cylinder Setting)
9161160860	91611-60860	Bolt(For Rocker Support Set)
9212260860	92122-60860	Bolt, Stud(For Water Outlet)

OEM	Part name	Category
11301-42010	Case Sub-Assy, Timing Gear	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
11304-42010	Cover, Sub-Assy, Timing Belt, No.3	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
11312-42010	Gasket, Front End Plate	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
11312-43010	Gasket, Front End Plate	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
11313-42010	Gasket, Front End Plate	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
11313-42020	Gasket, Front End Plate	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
11321-42020	Cover Sub-Assy, Timing Chain Or Belt	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
11322-42010	Cover, Timing Chain Or Belt, No.2	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
11325-42010	Cover Sub-Assy, Timing Belt, No.4	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
11328-42010	Gasket, Timing Gear Or Chain Cover	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
11355-41010	Plate, Rear End	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
11361-45010	Cover, Flywheel Housing Under	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
11381-43010	Retainer, Engine Rear Oil Seal	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
11383-41010	Gasket, Engine Rear Oil Seal Retainer	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
16192-43010	New Genuine Part	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
31131-30010	Seal, Flywheel Housing Under Cover Dust	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
90029-01505	New Genuine Part	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
90105-06056	New Genuine Part	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
90105-10075	Bolt(For Alternator)	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
90116-06065	New Genuine Part	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
90116-08147	Bolt, Stud(For Timing Chain Cover Set)	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
90116-10118	Bolt, Stud(For Alternator Bracket)	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
90119-08320	Screw Or Bolt(for Valve Rocker Shaft Lock)	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
90119-08752	New Genuine Part	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
90119-10216	Bolt (For Control Shaft Cover)	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
90119-10561	New Genuine Part	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
90176-06019	Nut (For Rear Wiper Arm Setting)	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
90179-08153	NUT	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
90179-08203	Nut	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
90250-08074	Pin, Straight(For Timing Gear Case)	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
90253-11001	Pin, Ring(For Camshaft Bearing Cap Setting)	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
90253-13013	Pin, Ring(For Oil Seal Retainer, No.2)	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
90311-42003	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
90311-42026	Seal, Oil(For Timing Gear Case Or Timing Chain Case)	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
90311-52003	Seal, Oil(For Timing Chain Or Belt Cover)	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
90311-80001	Seal, Engine Rear Oil	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
91511-60625	Bolt(For Cylinder Head Cover)	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
91511-60635	Bolt	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
91511-J0625	Bolt(For Cylinder Head Cover)	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
91611-60610	Bolt (For Transfer Oil Receiver No.1)	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
91611-60820	Bolt(For Transaxle & Engine Setting)	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
91611-60825	Bolt(For Head To Camshaft Bearing Cap)	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
91611-60845	Bolt(for Clutch Release Cylinder Setting)	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
91611-60860	Bolt(For Rocker Support Set)	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
91611-B0610	Bolt (For Transfer Oil Receiver No.1)	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
91611-B0816	Bolt	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
91611-B0825	Bolt(For Clutch Release Cylinder Setting)	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
91611-B0845	Bolt(for Clutch Release Cylinder Setting)	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
91611-G0820	Bolt	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
92122-60860	Bolt, Stud(For Water Outlet)	Timing Gear Cover & Rear End Plate ([08.1989 - ] (8908- )7MGE)
