Search › Model › MX83

MX83

Toyota CHASER · 1989 · 6,020 parts · 191 categories

6,020 items

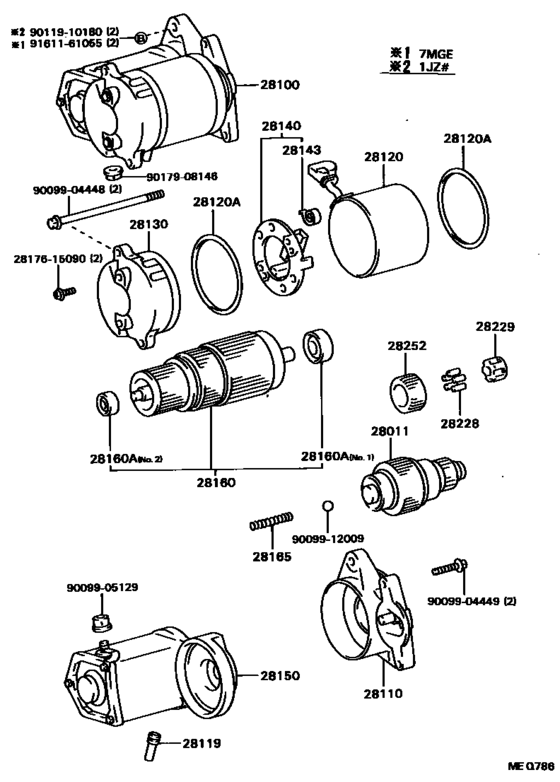

Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE) 55

#	OEM	Part name
28011	28011-26042	Clutch Sub-Assy, Starter
28011	28011-76070	Clutch Sub-Assy, Starter
28100	28100-41060	Starter Assy
28100	28100-45050	Starter Assy
28100	28100-42040	Starter Assy
28100	28100-46100	Starter Assy
28100	28100-46090	Starter Assy
28110	28110-41060	Housing Assy, Starter Drive
28110	28110-42040	Housing Assy, Starter Drive
28110	28110-45050	Housing Assy, Starter Drive
28110	28110-46090	Housing Assy, Starter Drive
28119	28199-15090	Cover, Starter End Frame
28119	28199-46080	Cover, Starter End Frame
28119	28199-74110	Cover, Starter End Frame
28120	28120-15090	Yoke Assy, Starter
28120	28120-26071	Yoke Assy, Starter
28120	28120-74070	Yoke Assy, Starter
28120	90099-14064	Rubber(For Starter Yoke)
28130	28130-15020	Frame Assy, Starter Commutator End
28130	28130-15090	Frame Assy, Starter Commutator End
28130	28130-46090	Frame Assy, Starter Commutator End
28140	28140-15090	Holder Assy, Starter Brush
28140	28140-26070	Holder Assy, Starter Brush
28140	28140-76070	Holder Assy, Starter Brush
28143	90099-17112	Spring, Starter Brush
28150	28150-41060	Switch Assy, Magnet Starter
28150	28150-45050	Switch Assy, Magnet Starter
28150	28150-46090	Switch Assy, Magnet Starter
28150	28150-46120	Switch Assy, Magnet Starter
28160	28160-15091	Armature Assy, Starter
28160	28160-26071	Armature Assy, Starter
28160	28160-74070	Armature Assy, Starter
28160	28253-45020	Bearing, Starter Armature
28160	90099-10113	Bearing, Starter Armature
28160	90099-10143	Bearing, Starter Armature
28160	90099-10144	Bearing, Starter Armature
28160	90099-10196	Bearing, Starter Armature
28160	90099-10197	Bearing, Starter Armature
28165	28165-26040	Spring, Starter Magnet Switch Return
28165	28165-76070	Spring, Starter Magnet Switch Return
28228	28228-26040	Roller, Starter Idle Gear Clutch
28229	28229-26040	Retainer, Starter Idle Gear
28229	28229-74070	Retainer, Starter Idle Gear
28252	28254-45020	Pinion, Starter Drive
28252	28254-74070	Pinion, Starter Drive
2817615090	28176-15090	Screw, Starter
2817615090	28176-87701	Screw, Starter
9009904448	90099-04448	Bolt, Starter
9009904449	90099-04449	New Genuine Part
9009905129	90099-05129	Nut (For Front Wiper Arm Setting)
9009912009	90099-12009	Ball, Starter Clutch
9011910180	90119-10180	Bolt (For Transfer Extension Rear Housing)
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9161161055	91611-61055	Bolt(For Clutch Release Cylinder Setting)

OEM	Part name	Category
28011-26042	Clutch Sub-Assy, Starter	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28011-76070	Clutch Sub-Assy, Starter	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28100-41060	Starter Assy	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28100-42040	Starter Assy	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28100-45050	Starter Assy	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28100-46090	Starter Assy	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28100-46100	Starter Assy	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28110-41060	Housing Assy, Starter Drive	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28110-42040	Housing Assy, Starter Drive	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28110-45050	Housing Assy, Starter Drive	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28110-46090	Housing Assy, Starter Drive	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28120-15090	Yoke Assy, Starter	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28120-26071	Yoke Assy, Starter	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28120-74070	Yoke Assy, Starter	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28130-15020	Frame Assy, Starter Commutator End	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28130-15090	Frame Assy, Starter Commutator End	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28130-46090	Frame Assy, Starter Commutator End	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28140-15090	Holder Assy, Starter Brush	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28140-26070	Holder Assy, Starter Brush	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28140-76070	Holder Assy, Starter Brush	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28150-41060	Switch Assy, Magnet Starter	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28150-45050	Switch Assy, Magnet Starter	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28150-46090	Switch Assy, Magnet Starter	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28150-46120	Switch Assy, Magnet Starter	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28160-15091	Armature Assy, Starter	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28160-26071	Armature Assy, Starter	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28160-74070	Armature Assy, Starter	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28165-26040	Spring, Starter Magnet Switch Return	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28165-76070	Spring, Starter Magnet Switch Return	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28176-15090	Screw, Starter	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28176-87701	Screw, Starter	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28199-15090	Cover, Starter End Frame	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28199-46080	Cover, Starter End Frame	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28199-74110	Cover, Starter End Frame	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28228-26040	Roller, Starter Idle Gear Clutch	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28229-26040	Retainer, Starter Idle Gear	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28229-74070	Retainer, Starter Idle Gear	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28253-45020	Bearing, Starter Armature	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28254-45020	Pinion, Starter Drive	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
28254-74070	Pinion, Starter Drive	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
90099-04448	Bolt, Starter	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
90099-04449	New Genuine Part	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
90099-05129	Nut (For Front Wiper Arm Setting)	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
90099-10113	Bearing, Starter Armature	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
90099-10143	Bearing, Starter Armature	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
90099-10144	Bearing, Starter Armature	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
90099-10196	Bearing, Starter Armature	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
90099-10197	Bearing, Starter Armature	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
90099-12009	Ball, Starter Clutch	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
90099-14064	Rubber(For Starter Yoke)	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
90099-17112	Spring, Starter Brush	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
90119-10180	Bolt (For Transfer Extension Rear Housing)	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
90179-08146	Nut	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
90179-08204	Nut	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
91611-61055	Bolt(For Clutch Release Cylinder Setting)	Starter ([08.1990 - ] 12V 1.4KW (9008- )1JZ#,7MGE)
