MX83

Toyota CHASER · 1989 · 6,020 parts · 191 categories

6,020 items

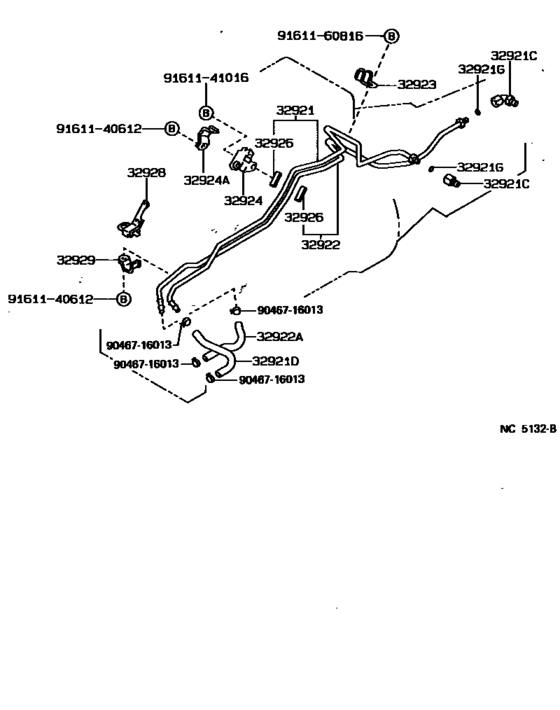

Oil Cooler & Tube (Atm) ([08.1989 - ] (8908- )MX83) 23

#	OEM	Part name
32921	32921-22401	Tube, Oil Cooler Inlet, No.1
32921	90404-16020	Union(For Oil Cooler Tube)
32921	90404-16029	Union(For Oil Cooler Tube)
32921	90407-16009	Union(For Oil Cooler Tube)
32921	32941-22201	Hose(For Oil Cooler Inlet)
32921	90301-11006	O Ring, Transaxle Case Elbow
32922	32922-22421	Tube, Oil Cooler Outlet, No.1
32922	32941-22181	Hose(For Oil Cooler Inlet)
32923	32923-30110	Clamp, Automatic Transmission Oil Cooler Tube
32924	32924-30160	Clamp, Oil Cooler Tube, No.2
32924	32929-22050	Clamp, Automatic Transmission Oil Cooler Tube
32926	32926-30020	Cushion, Oil Cooler Tube(Atm)
32928	32928-30090	Clamp, Flexible Hose, No.1
32929	32929-24040	Clamp, Automatic Transmission Oil Cooler Tube
32929	32929-35050	Clamp, Automatic Transmission Oil Cooler Tube - FLEXIBLE HOSE, NO.2
9046716013	90467-16013	Clip(For Oil Return Hose)
9046716013	90467-16022	Clip(For Water Inlet Hose)
9161140612	91611-40612	Bolt(for Dust Cover To Steering Knuckle Arm Setting)
9161140612	91611-G0612	Bolt
9161141016	91611-41016	Bolt(for Dust Cover To Steering Knuckle Arm Setting)
9161141016	91612-61016	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt

OEM	Part name	Category
32921-22401	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([08.1989 - ] (8908- )MX83)
32922-22421	Tube, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([08.1989 - ] (8908- )MX83)
32923-30110	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([08.1989 - ] (8908- )MX83)
32924-30160	Clamp, Oil Cooler Tube, No.2	Oil Cooler & Tube (Atm) ([08.1989 - ] (8908- )MX83)
32926-30020	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([08.1989 - ] (8908- )MX83)
32928-30090	Clamp, Flexible Hose, No.1	Oil Cooler & Tube (Atm) ([08.1989 - ] (8908- )MX83)
32929-22050	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([08.1989 - ] (8908- )MX83)
32929-24040	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([08.1989 - ] (8908- )MX83)
32929-35050	Clamp, Automatic Transmission Oil Cooler Tube - FLEXIBLE HOSE, NO.2	Oil Cooler & Tube (Atm) ([08.1989 - ] (8908- )MX83)
32941-22181	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([08.1989 - ] (8908- )MX83)
32941-22201	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([08.1989 - ] (8908- )MX83)
90301-11006	O Ring, Transaxle Case Elbow	Oil Cooler & Tube (Atm) ([08.1989 - ] (8908- )MX83)
90404-16020	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([08.1989 - ] (8908- )MX83)
90404-16029	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([08.1989 - ] (8908- )MX83)
90407-16009	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([08.1989 - ] (8908- )MX83)
90467-16013	Clip(For Oil Return Hose)	Oil Cooler & Tube (Atm) ([08.1989 - ] (8908- )MX83)
90467-16022	Clip(For Water Inlet Hose)	Oil Cooler & Tube (Atm) ([08.1989 - ] (8908- )MX83)
91611-40612	Bolt(for Dust Cover To Steering Knuckle Arm Setting)	Oil Cooler & Tube (Atm) ([08.1989 - ] (8908- )MX83)
91611-41016	Bolt(for Dust Cover To Steering Knuckle Arm Setting)	Oil Cooler & Tube (Atm) ([08.1989 - ] (8908- )MX83)
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Oil Cooler & Tube (Atm) ([08.1989 - ] (8908- )MX83)
91611-B0816	Bolt	Oil Cooler & Tube (Atm) ([08.1989 - ] (8908- )MX83)
91611-G0612	Bolt	Oil Cooler & Tube (Atm) ([08.1989 - ] (8908- )MX83)
91612-61016	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Oil Cooler & Tube (Atm) ([08.1989 - ] (8908- )MX83)
